Table: Line sequence of the label connector table
Meter data receiving line
Data transmission line of instrument
Notes: Part of the products lead wire use waterproof connection. User cannot see
the color of lead line.
三、Function description
1、Display function
Speed display, power level display, power indicator, failure warning, total mileage, single
mileage, headlight display, single driving time display
2．Control, setting up functions
Power switch control, headlight switch control, 6Km/h point control, wheel diameter setting,
maximum speed setting, idle automatic hibernation time setting, backlight brightness
setting, voltage level setting
3.Communication protocol
：
UART

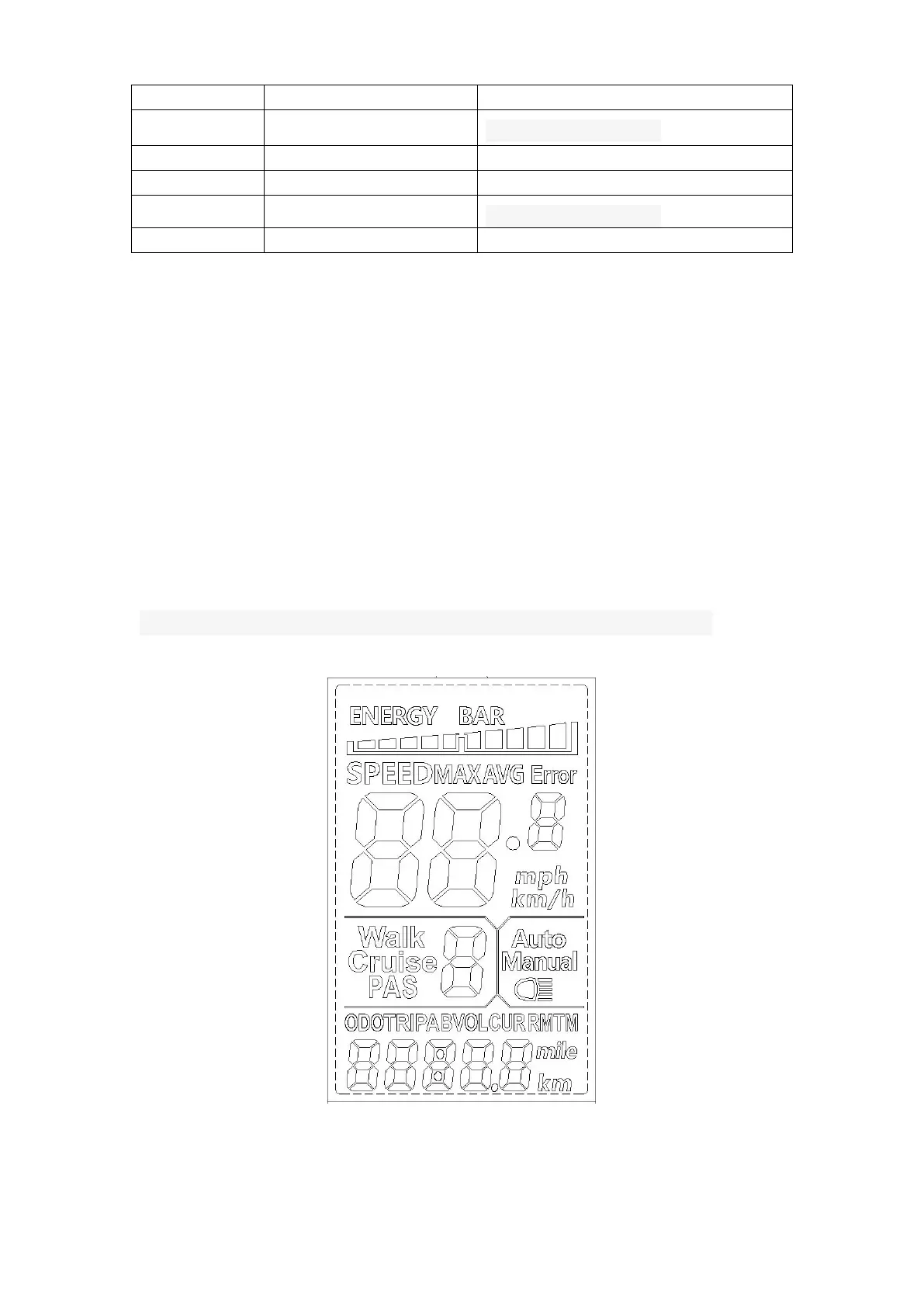

All the contents of the display screen(full display in boot 1S)
