16. ANGLE – horizontal oscillation
17. SPEED – turning on the fan and setting the fan
speed
18. ON/OFF – turning the fan on/o
ASSEMBLY
Warning: The fan may only be used if it is properly and completely assembled, including the support base and
protective grille.
1. Open the package and pull out all the components - the fan, the operating instructions, the remote
controller and other accessories. Make sure that the packaging is complete and undamaged.
2. The fan can be used as stand alone or on the table. If you want to use the fan as atable fan, when installing
mount only the body on the base with control panel without the column. For more information and
assembly instructions read below.
• Stand alone fan version:

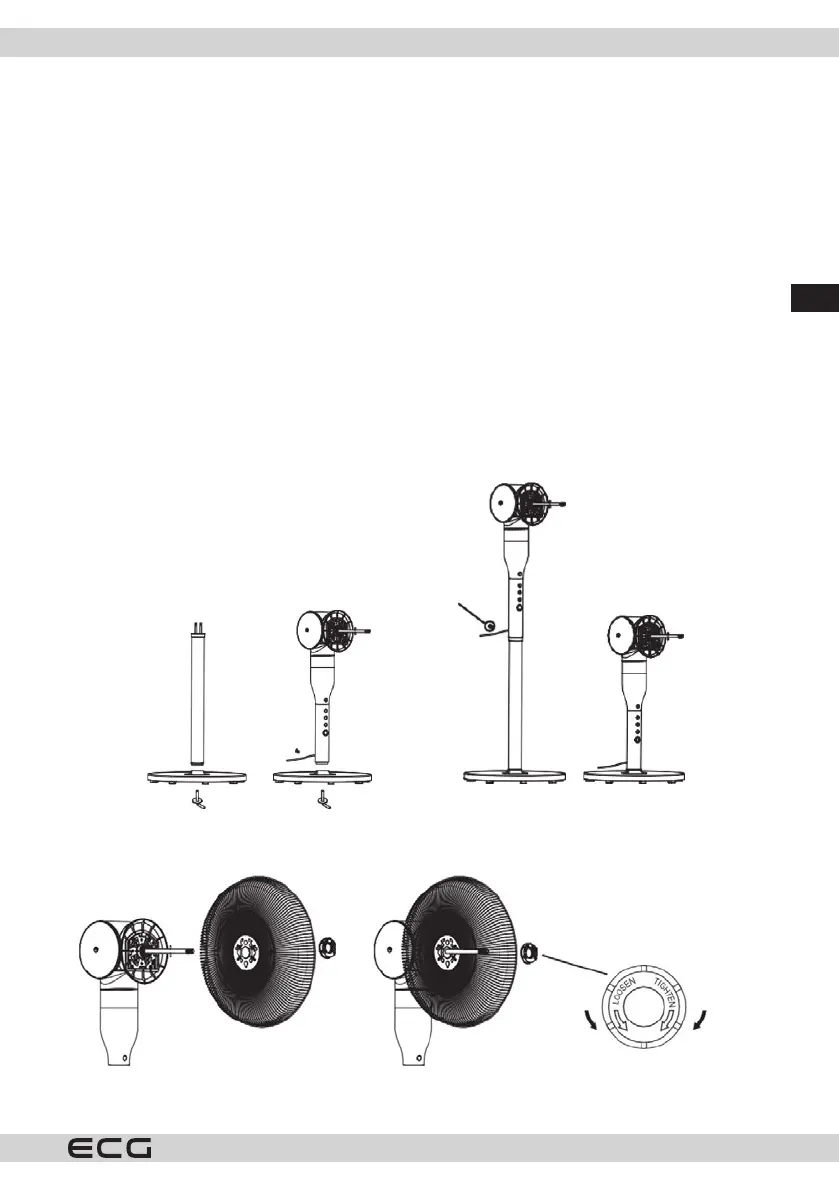

Insert the column into the base and tighten it with the L-screw (see gure 1 on the left). Attach the
body with the motor to the column and secure it with the locking screw (see gure 2 on the left).
• Table fan version:
Insert the body with the motor directly into the base and tighten it with the L-screw (see gure 1 on
the right).
Stand alone On the table
Fig. 1
Stand alone
On the table
Screw
Fig. 2
3. Install the rear grille on the motor head. The openings in the grille must t into the pins on the motor unit.
Fasten it using the locking nut of the rear grille (see gures 3 and 4).
Fig. 3 Fig. 4
Loosen Tighten
4. Insert the blade unit onto the shaft and tighten it rmly using the blades locking nut (see gures 5 and 6).
