Fig. 5 Fig. 6
Tighten Loosen

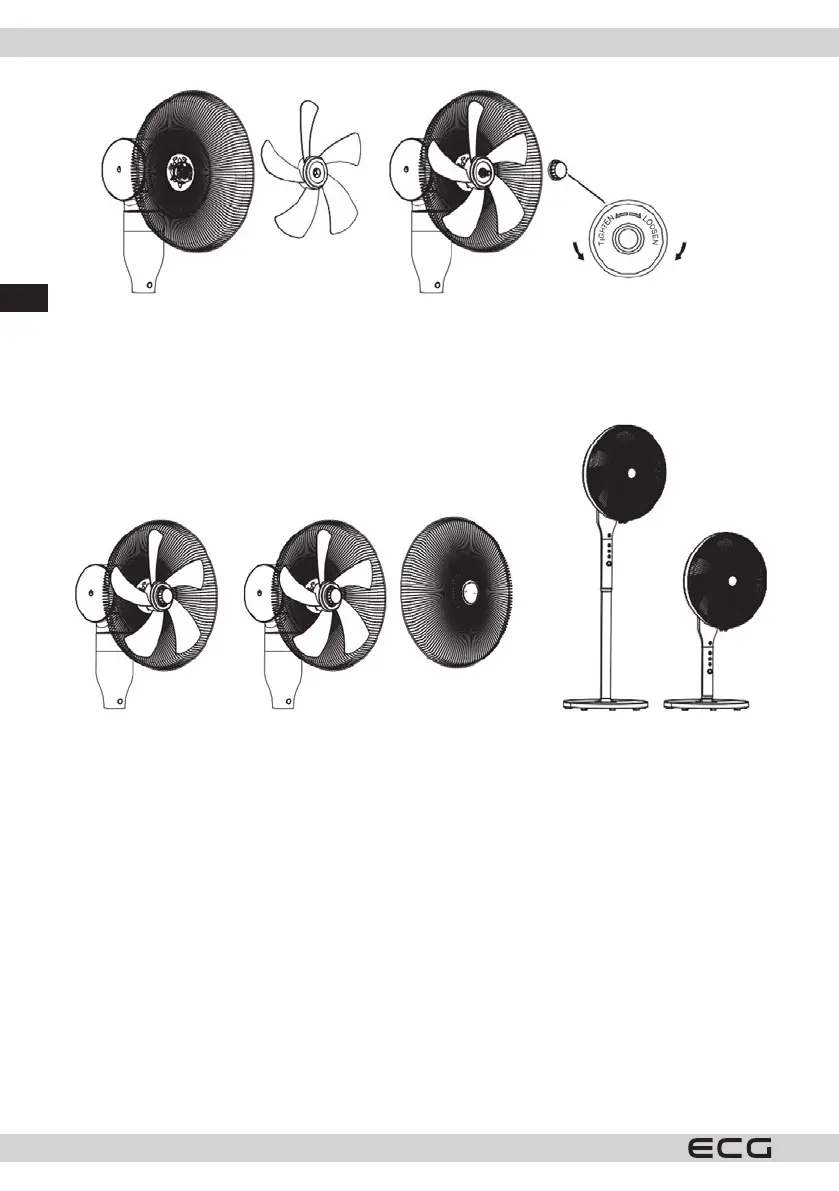

5. Remove the locking screw from the lock on the connecting frame and release the clamp. Connect the front
and rear grille using the frame. Snap the clamp so that the tabs t between the grille wires and secure it
with the included screw (see gures 7 and 8).
6. Once the assembly is complete, you can plug the fan into the socket and follow the operating instructions
(see gure 9).
Fig. 9Fig. 7 Fig. 8
