Connect any auxiliary generating set equipment; coolant heater, battery charger etc. directly to fuse 4F17,
using a cable of suitable length and gauge.
Connect remote start wires to terminals 1 & 2 on terminal box X1, using a cable of suitable length and gauge.
= remote start = single phase auxiliaries = three phase auxiliaries
Connection of auxiliary equipment and control panel
6
. flexible= H07RNF
. rigid = U1000R2V
. remote start = 2,5mm²
. auxiliaries = 1,5mm² minimum
7

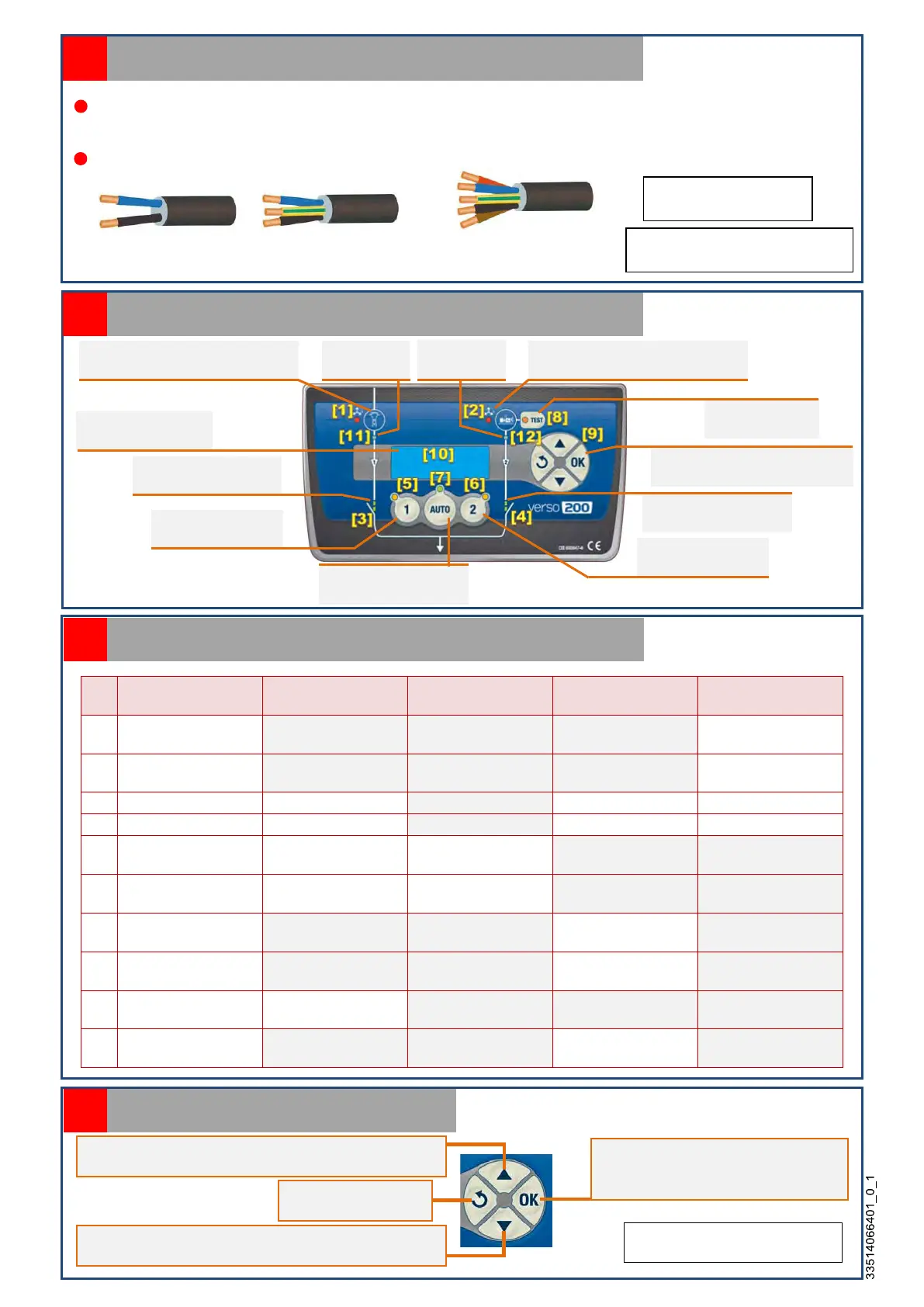

Getting started with control/command automation
LED
No light
green light
green light
orange light
red light
source 1 OK
source 1
[2]
Phase rotation
source 2 OK
Phase rotation fault
source 2
[11]
No source 1 source 1 OK
U/F alarm source 1 U/F fault source 1
[12]
No source 2 source 2 OK
U/F alarm source 2 U/F fault source 2
[3]
Source 1 switch
open
Source 1 switch
closed
Position monitoring
fault source 1
[4]
Source 2 switch
open
Source 2 switch
closed
Position monitoring
fault source 2
[5]
No force switch to
Force switch to
[6]
No force switch to
Force switch to
AUTO mode not
AUTO mode
TEST mode not
selected
TEST mode selected
Diagnostics/LED functions
8
4 key navigation keypad
9
. Access to previous menu or data selection (*)
. Increase by a value of 1 or other option
. Access to data (*)
. Reset displayed screen « RESET=OK »
. Exit navigation
. Exit a menu
. Access to following menu or data selection(*)
. Decrease by a value of 1 or other option
(*) data = parameter, value,
timer, adjustment
[1] Direction of phase rotation
- Mains outlet (source 1)
[2]
Direction of phase rotation LED
- backup power source (source 2)
[3] Source 1 switch
position LED
[4] Source 2 switch
position LED
[5] Force switch to
source 1, with LED
[6] Force switch to
source 2, with LED
[7] AUTO mode,
with LED
[8] TEST mode
button with LED
[9] Navigation, menus,
parameters, timers
[10] LCD screen for
all displays
[11] Source 1
status LED
[12]
status LED
