Automatic Transfer Switch - VERSO 200 - Attachment 2
1- Press OK,
2- Press

Until you reach menu:
- PARAM (to modify a parameter), and press OK,
- TIMER (to modify a timer), and press OK,
3- Press OK,
4- Press  or  until you reach the desired parameter or timer,
5- Press OK to access the parameter or timer,
6- Press  or  to modify the parameter or timer,
7- Press OK to accept the modification,
8- Press

twice to exit the menu.
See list of timers and parameters overleaf
A21

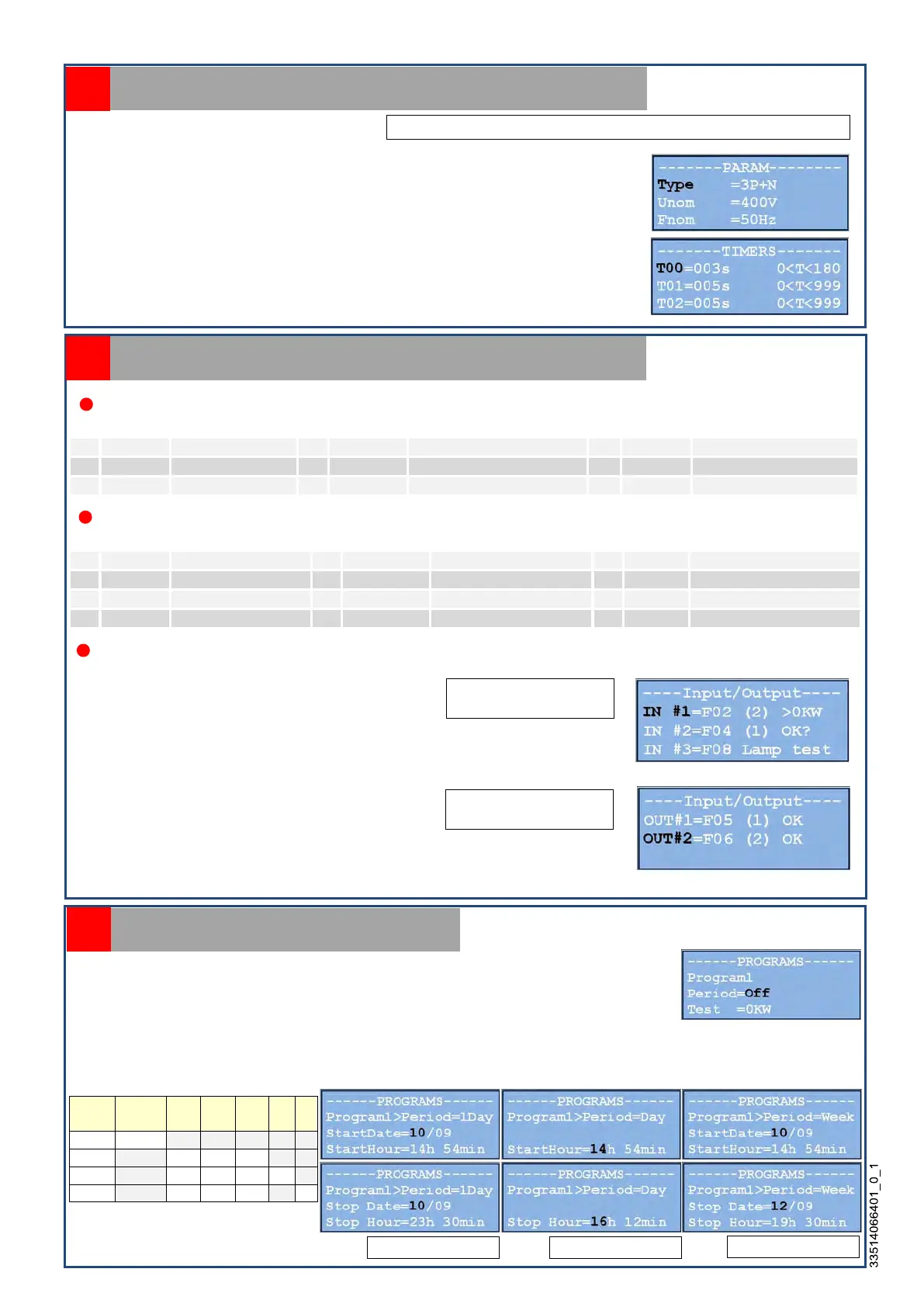

Modification of parameters/timers
Three inputs IN1 (terminals 1 & 2, connection J6), IN2 (terminals 3 & 4), IN3 (terminals 5 & 6, connection J6)
Table of programmable functions (F01 to F08, F00 = no function)
F01 PreavisEJP Notice of EJP (*STOR) F04 (2) >0KW Request production F07 1->(0)<-2 Set to position 0
F02
Top EJP
TOP EJP (*STOR)
F05
(2) >0KW+T
Request timed production
F08
Lamp test
LED and screen test
F03 Prior EJP EJP priority F06 (1) =OK ? Confirmation of sector return F09
SOS 4F01
Trip lightning conductor reporting
Two outputs OUT1 (terminals 2 & 3, connection J13), OUT2 (terminals 2 & 3, connection J14)
Table of programmable functions (F01 to F12, F00 = no function)
F01
-> (1)
Opening of source 1
F05
(1) OK
source 1 OK
F09
EJP
EJP mode
(French market only)
F02 -> (2) Opening of source 2 F06 (2) OK source 2 OK F10 =IN#1 Input 1 reporting
F03 (1) ->
Closure of source 1
F07 (AUTO NOK
mode AUTO not OK
F11 =IN#2
Input 2 reporting
F04 (2) -> Closure of source 2 F08 (2) + T22 Request load shedding F12 =IN#3 Input 3 reporting
Programming inputs and outputs
1- Press OK,
2- Press

until you reach menu I/O,
3- Press OK,
4- In the Input/Output menu, press  or  until you reach;
- the desired input (IN#1, IN#2 or IN#3),
- the desired output (OUT1#1 or OUT#2),
5- Press OK to access the programming:
- of the input selected (IN#1, IN#2 or IN#3),
- of the output selected (OUT#1 or OUT#2),
6- Select the desired function by pressing  or ,
7- Press OK to validate the function,
8- Press  twice to exit the menu.
Programming inputs and outputs
A22
Example of programming of
three inputs
Example of programming of
two outputs
1- Press OK,
2- Press

until you reach the PROGRAMS menu,
3- Press OK,
4- In the PROGRAMS menu, select Program1, Program2 or Program3 by pressing  or ,
5- Press OK to access the chosen program selection, the message Off will be flashing (see above),
6- Each program has two criteria: Period = Off, 1Day, Days or Week (see table) and Test = 0KW or >0KW,
option inactive date


start

stop
365 52
Off
x
1Day x x x
Days
x
x
x
Week x x x x
Test = 0KW = test without load
Test = >0KW = test with load
365 = everyday, 52 = every week
Setting the clock A23
1Day program Days program
Week program
*STOR= Short Term Operating Reserve
