13

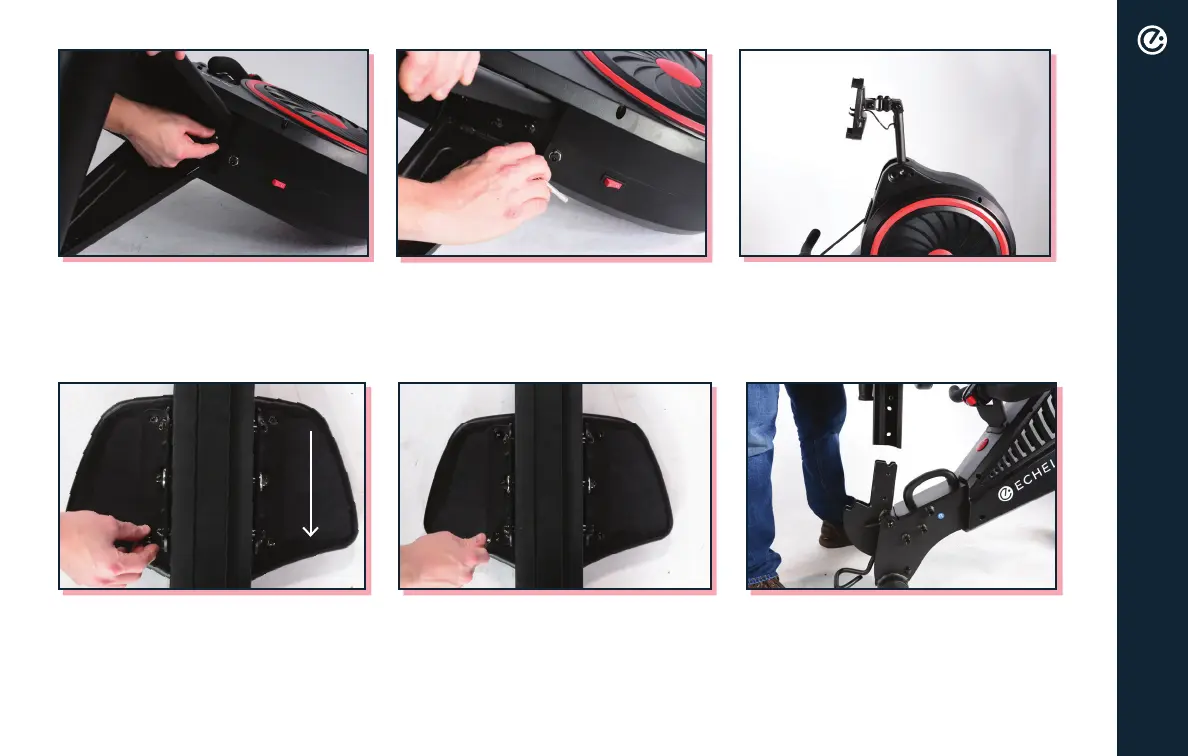

2. Tighten the screws with hex key.
1. Place the front foot and hand
tighten screws into place.
4. Set rower upright and adjust
the arm of phone holder to
your desired level.
5. Place seat on ground and lay
the rail onto seat so the screw
holes on the bracket align with
screw holes on seat.
*Arrow pointing towards side with handle.
6. Place all four screws into screw
holes and tighten with hex key.
7. Place the rail onto rail bracket.
ASSEMBLY
ASSEMBLY
