AIO Configurations
The AIO Test Interface is available in seven models depending on what module types
are installed (AIO-A, AIO-S, AIO-L, AIO-T):
AIO
Model
Inner
Module
Outer
Module
Mic/Line
Inputs
10W
Outputs
Line/HP
Outputs
Imped/
Haptic
Digital
Sample
Rates
AIO-1
AIO-A
---
4
2
---
---
---
48, 96,
192 kHz
AIO-2
AIO-A
AIO-A
8
4
---
---
---
48, 96,
192 kHz
AIO-AT
AIO-A
AIO-T
4
2
---
---
TDM
10/10
48 kHz
AIO-L1
AIO-L
---
4
---
2
---
---
48, 96,
192 kHz
AIO-L2
AIO-L
AIO-L
8
---
4
---
---
48, 96,
192 kHz
AIO-LT
AIO-L
AIO-T
4
---
2
---
TDM
10/10
48 kHz
AIO-S
AIO-S
AIO-A
6
3
---
1
---
48, 96,
192 kHz

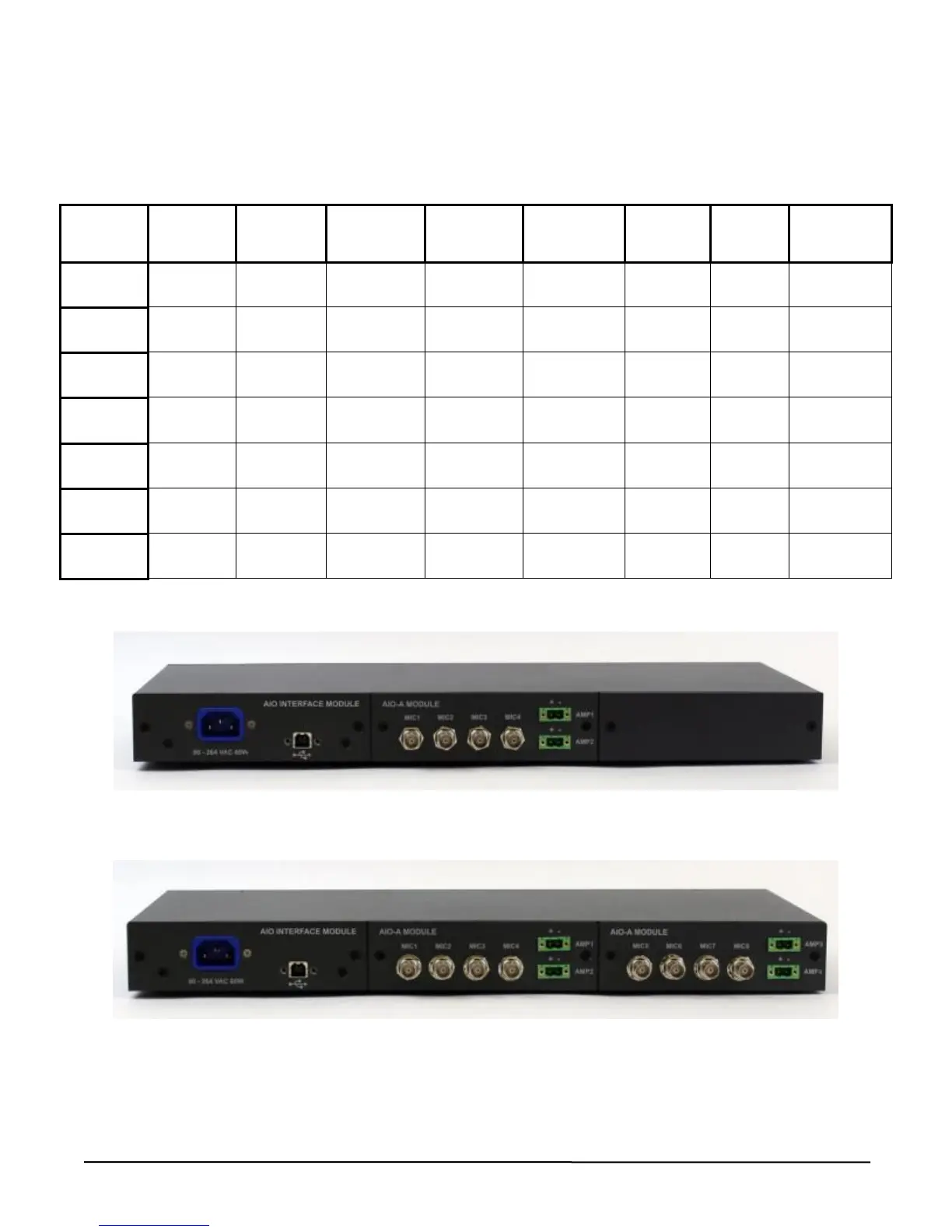

Table 1 – AIO Models
AIO-1 (AIO Test Interface with 1 AIO-A Module)
AIO-2 (AIO Test Interface with 2 AIO-A Modules)
