ES-250 ASSEMBLY
X7501182904 15
© 05/2015 ECHO Inc.

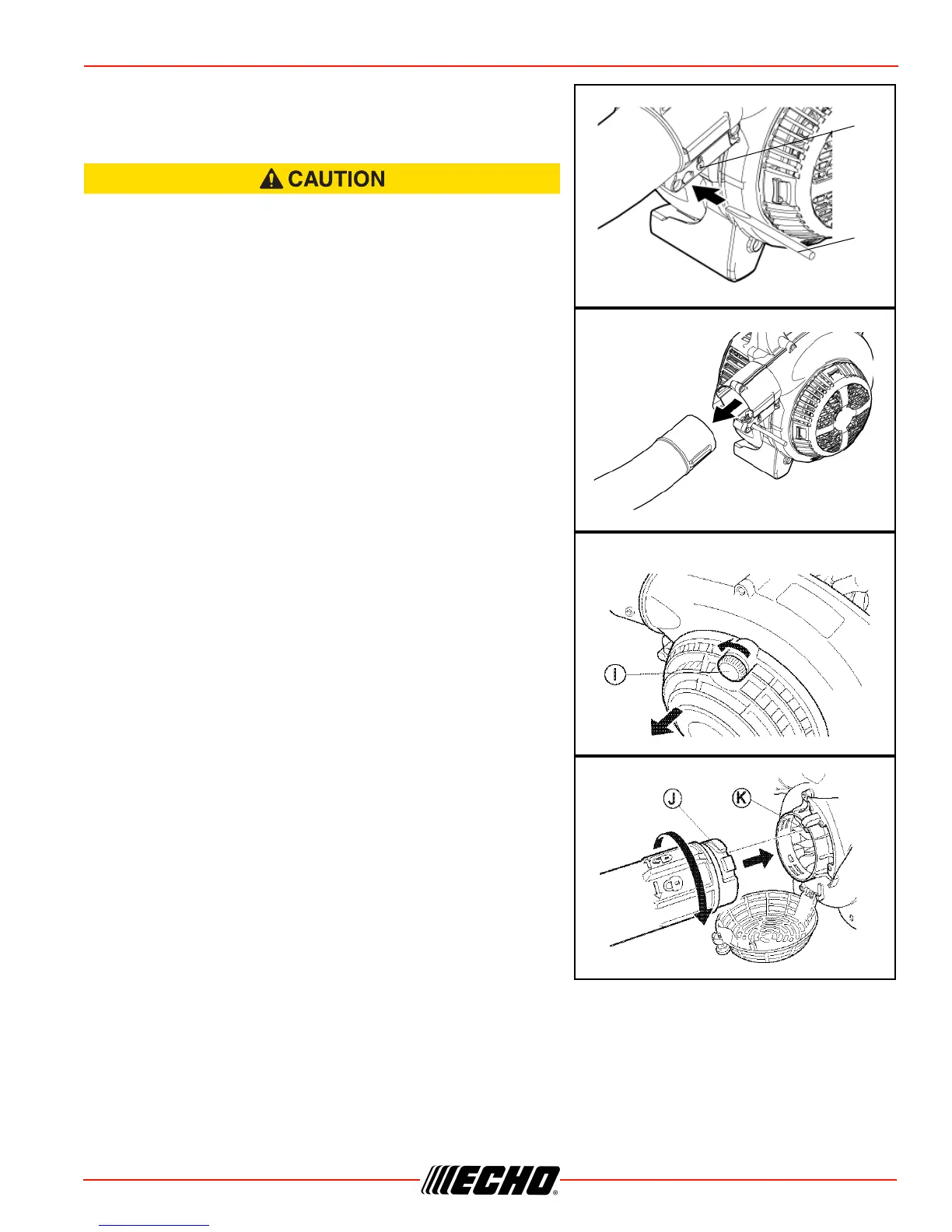

Remove Blower Pipes
1. Insert screwdriver (F) into hole located near lock symbol (G)
to release pipe lock.
Screwdriver tip may stick out opposite side of locking hole.
2. Pull pipe out of fan case.
3. Remove screwdriver.
Vacuum/Shredding Application
Install Vacuum Tube
1. Turn knob (I) counter clockwise until hinged housing cover is
free to open for vacuum tube installation.
2. Opening housing cover, slide recess (J) on vacuum tube into
locking rib (K), and turn the vacuum tube clockwise so that it
is locked.
Note: Engine will not start/operate unless safety interlock
switch (K) is activated by the vacuum tube.
Install Bag
1. Stand unit upright on blower base.
