Chemical
strainer
Return pipe
Remove the drain plug
Drain plug

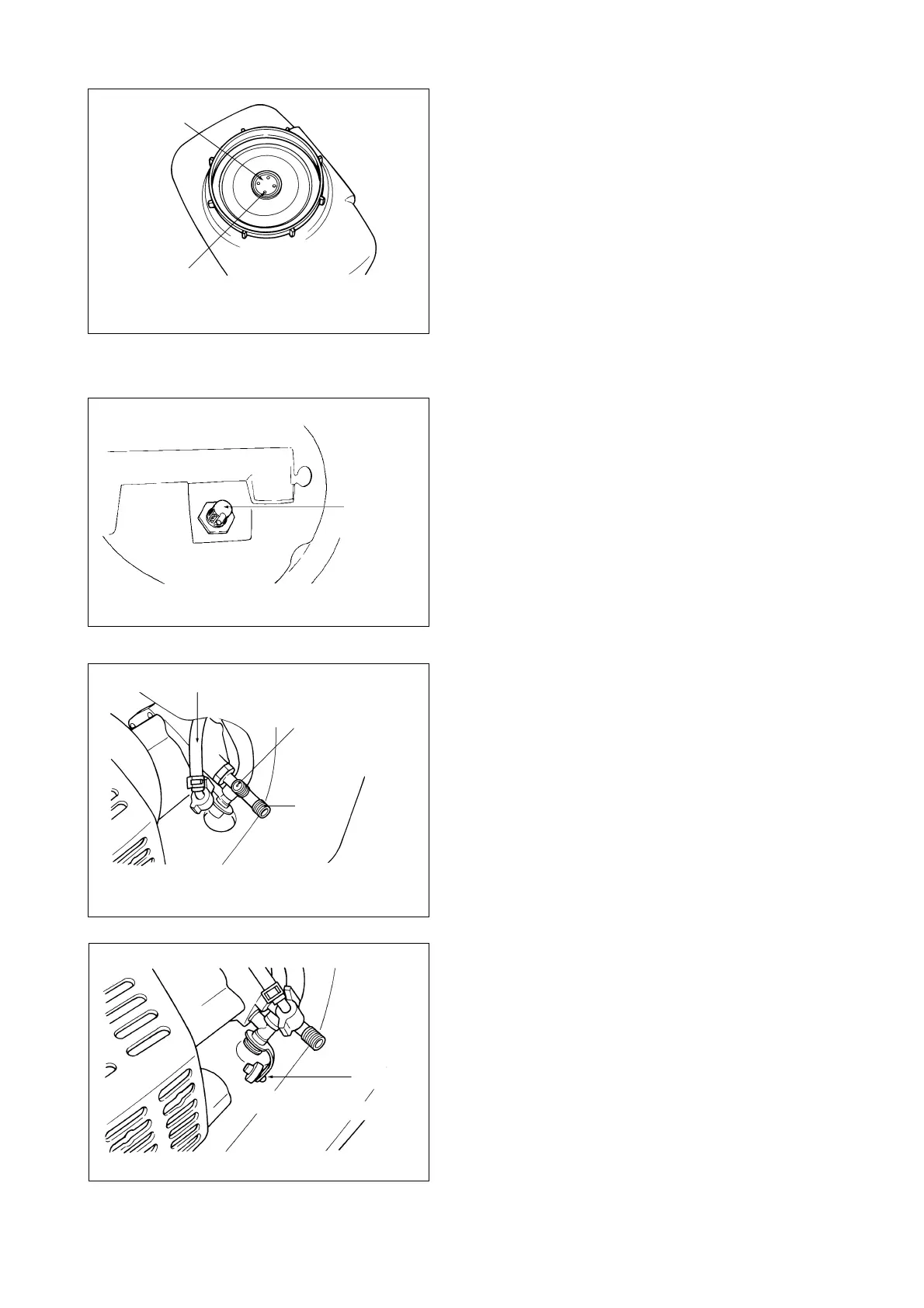

CHEMICAL TANK BREATHER
• Clean breather valve and breather hole
periodically.
• Bad sealing of breather valve may cause a
leakage of the chemical.
Clogging of the breather hole may cause a
“dent” or a breakage of the chemical tank.
CHEMICAL STRAINER
• Clean chemical strainer periodically.
• Clogging of the chemical strainer may cause
insufficient discharge of the chemical.
BYPASS NOZZLE PLATE
• Clean bypass nozzle plate, if liquid chemical
is not well stired-up in the tank.
WHEN SPRAYING IS FINISHED
• Fill chemical tank with water and spray
through nozzle for 2 to 3 minutes for cleaning.
• Drain water from the machine through misting
nozzle and remove pump drain plug.
• Wipe off the liquid chemical on the machine
after use.
Breather valve
Breather hole
Bypass nozzle plate
Nipple
