22

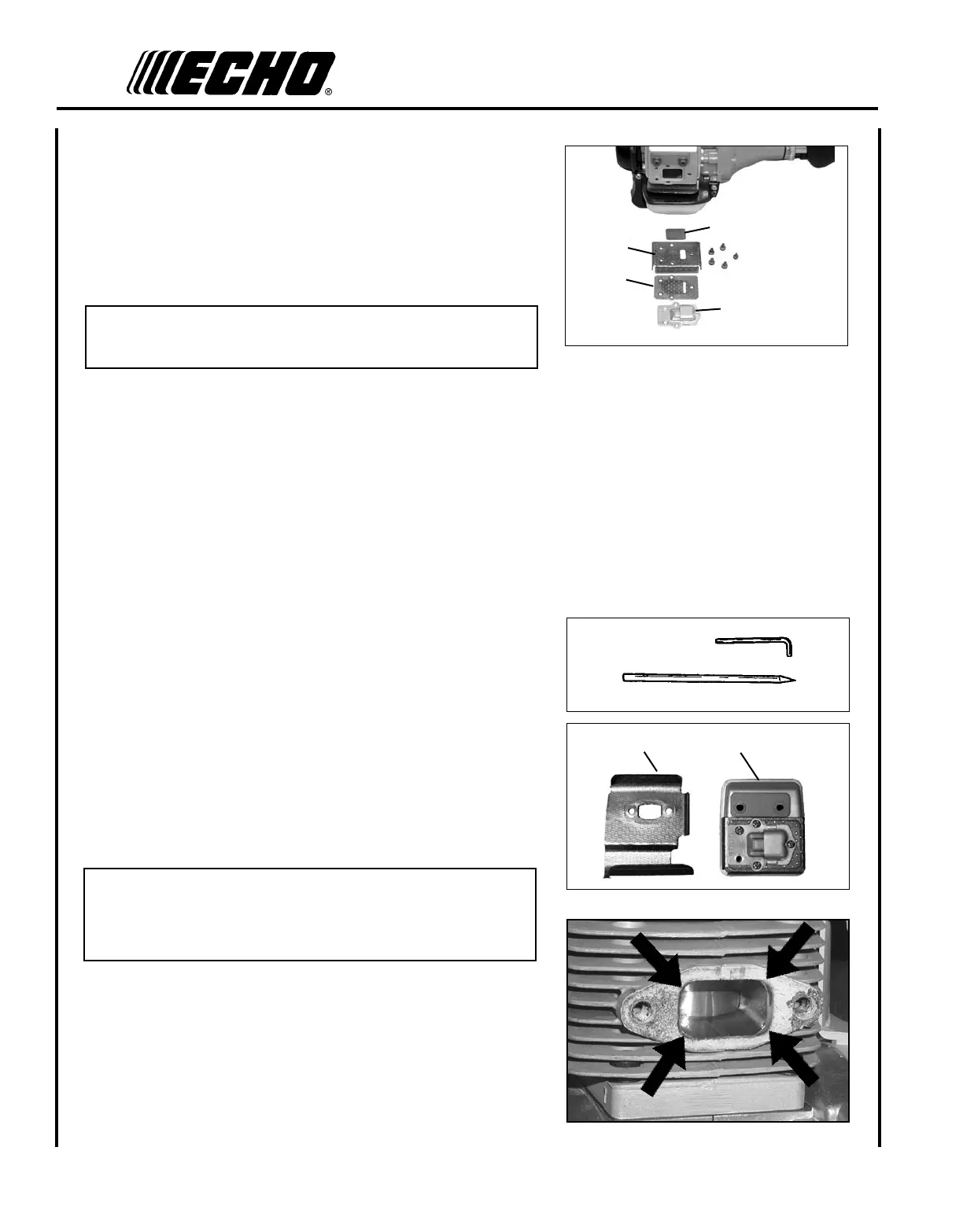

Exhaust Port Cleaning
Level 2.
Tools required: Torx T27 L-Wrench, Wood or plastic scraper
Parts Required: As needed: Heat Shield
1. Remove spark plug lead from spark plug, and remove mufer
cover (2 screws).
2. Place piston at top dead center. Remove mufer (A) and heat
shield (B).
3. Use a wood or plastic scraping tool to clean deposits from cylinder
exhaust port.
IMPORTANT
Never use a metal tool to scrape carbon from the exhaust port.
Do not scratch the cylinder or piston when cleaning the exhaust
port. Do not allow carbon particles to enter the cylinder.
4. Inspect heat shield, and replace if damaged.
5. Install heat shield and mufer.
6. Tighten mufer mounting bolts (or nuts) to 80-95 in•lbf
(90-110 kgf•cm).
7. Start engine, and warm to operating temperature.
8. Stop engine, and re-tighten mounting bolts (or nuts) to specica-
tions.
9. Install mufer cover and attach spark plug lead.
C
E
F
D
1. Remove engine cover screws (2) and engine cover (B).
2. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from
entering cylinder.
3. Remove spark arrestor screen cover (C), gaskets (D), (E), and
screen (F), from mufer body.
4. Clean carbon deposits from mufer components.
NOTE
When cleaning carbon deposit, be careful not to damage the cata-
lytic element inside mufer.
5. Replace screen if it is cracked, plugged, or has holes burned
through.
6. Assemble components in reverse order.
A
B
