GRASS TRIMMER/BRUSH CUTTER
OPERATOR'S MANUAL
35

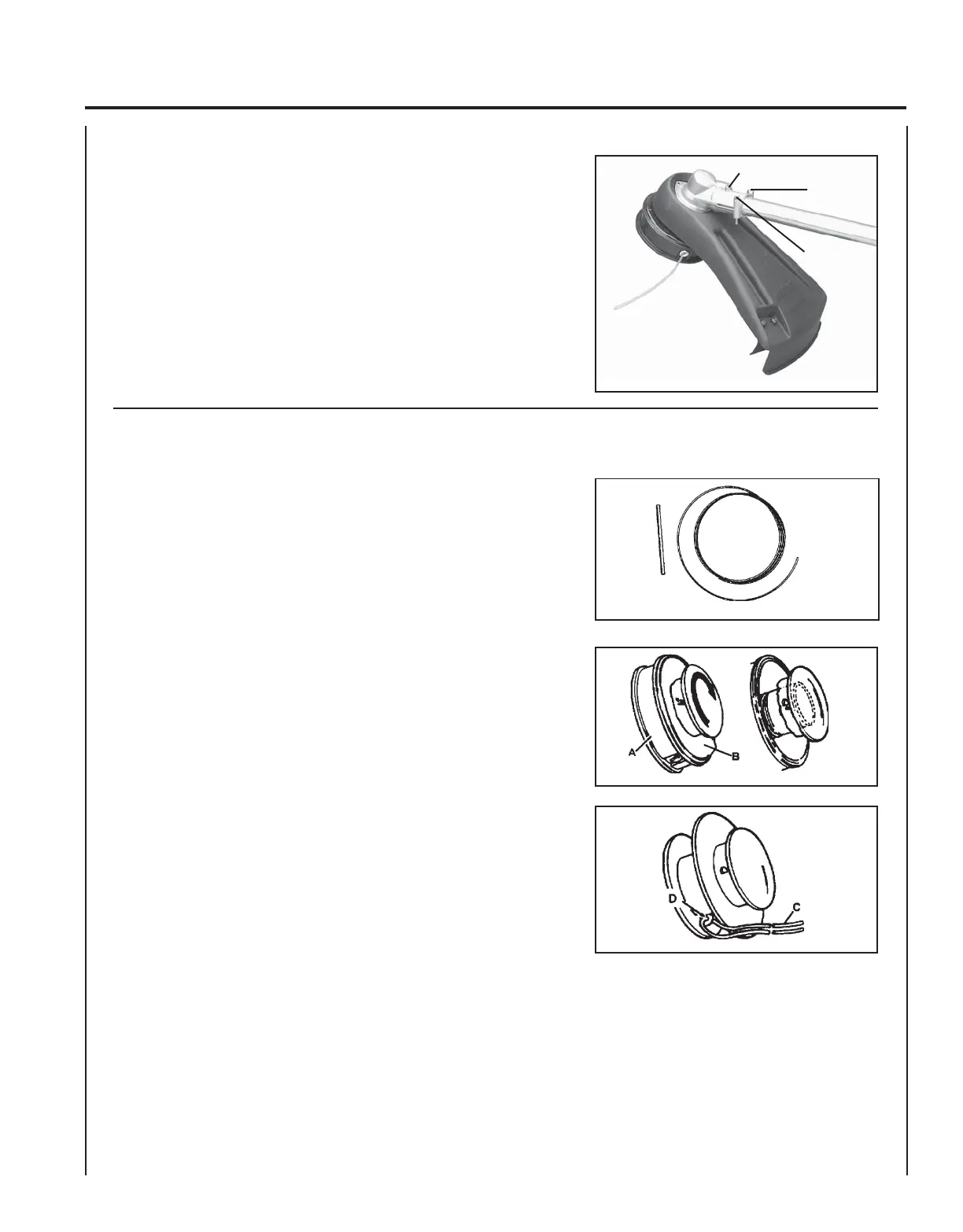

Drive Shaft
1. Loosen two (2) screws (B) and remove center locating screw (C).
Pull gear box and shield from drive shaft housing.
2. Pull flexible cable from the drive shaft housing, wipe clean and
recoat with a thin coating of [15 ml (1/2 oz.)] of high temperature
automotive grease.
3. Slide the flexible cable back in the drive housing. DO NOT get
dirt on the flex cable.
4. Install the gear housing and shield assembly.
NYLON LINE REPLACEMENT
Level 1.
Tools Required: Head locking tool (if head is to be removed)
Parts Required: ECHO 0.095" Nylon Trimmer Line 12m (40 feet) long.
1. Hold drum (A) and turn spool (B) CW (clockwise) until it stops.
Pull spool from drum. DO NOT push in on spool when turning.
2. Use one piece of new nylon line (C) 12m (40 feet) long and thread
through the molded loop (D) on the spool. Pull line tight and
adjust so one end is 15 cm ( 6 in.) longer than the other.
3. Hold the spool, opening toward you. Place index finger between
the two strands and wind line, tightly and evenly, in direction of
arrow marked "CC".
4. Stop when approximately 15-20 cm (6 - 8 in.) line (C) remains and
place ends of line in notches (E) in spool (B).
B
C
B
