26
A

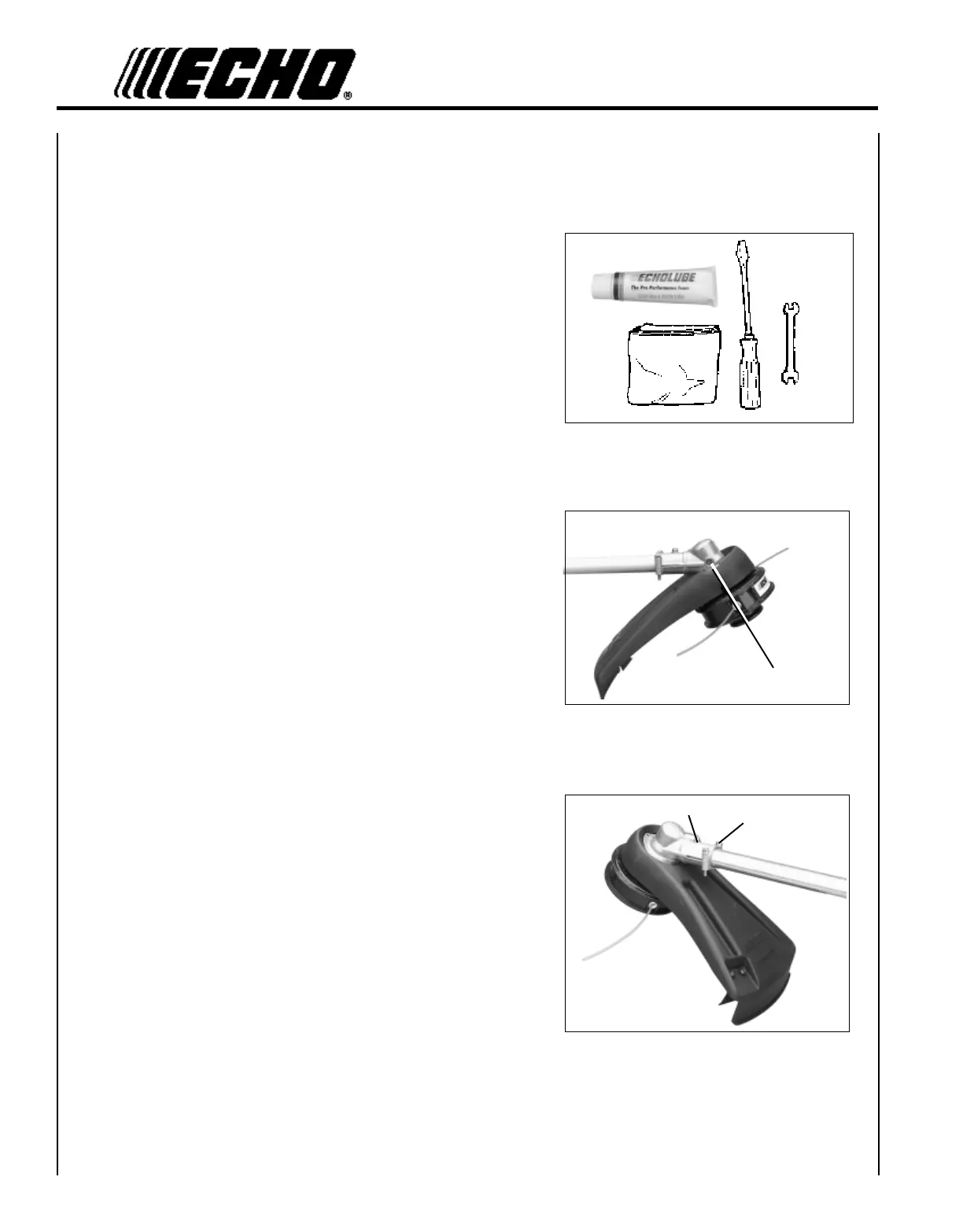

LUBRICATION
Level 1.
Tools Required: 8 mm Open-end Wrench, Screwdriver, Clean Rag.
Parts Required: ECHO
®
LUBE
TM
8 oz. (P/N 91014) or Lithium Base
Grease.
Gear Housing
1. Clean all loose debris from gear box.
2. Remove plug (A) and check level of grease.
3. Add grease if necessary. DO NOT over fill.
Drive Shaft
SRM-310, 310U Only (SRM-310S Drive shaft is sealed)
1. Loosen two (2) screws (B) and remove center locating screw (C).
Pull gear box and shield from drive shaft.
2. Pull flexible cable from the drive shaft housing, wipe clean and
recoat with a thin coating [1/2 oz. (15 ml)] of grease.
3. Slide the flexible cable back in the drive housing. DO NOT get
dirt on the flex shaft.
4. Install the gear housing and shield assembly.
C
B
To Next Page
