FCTP-GM2403
Trailering Camera System

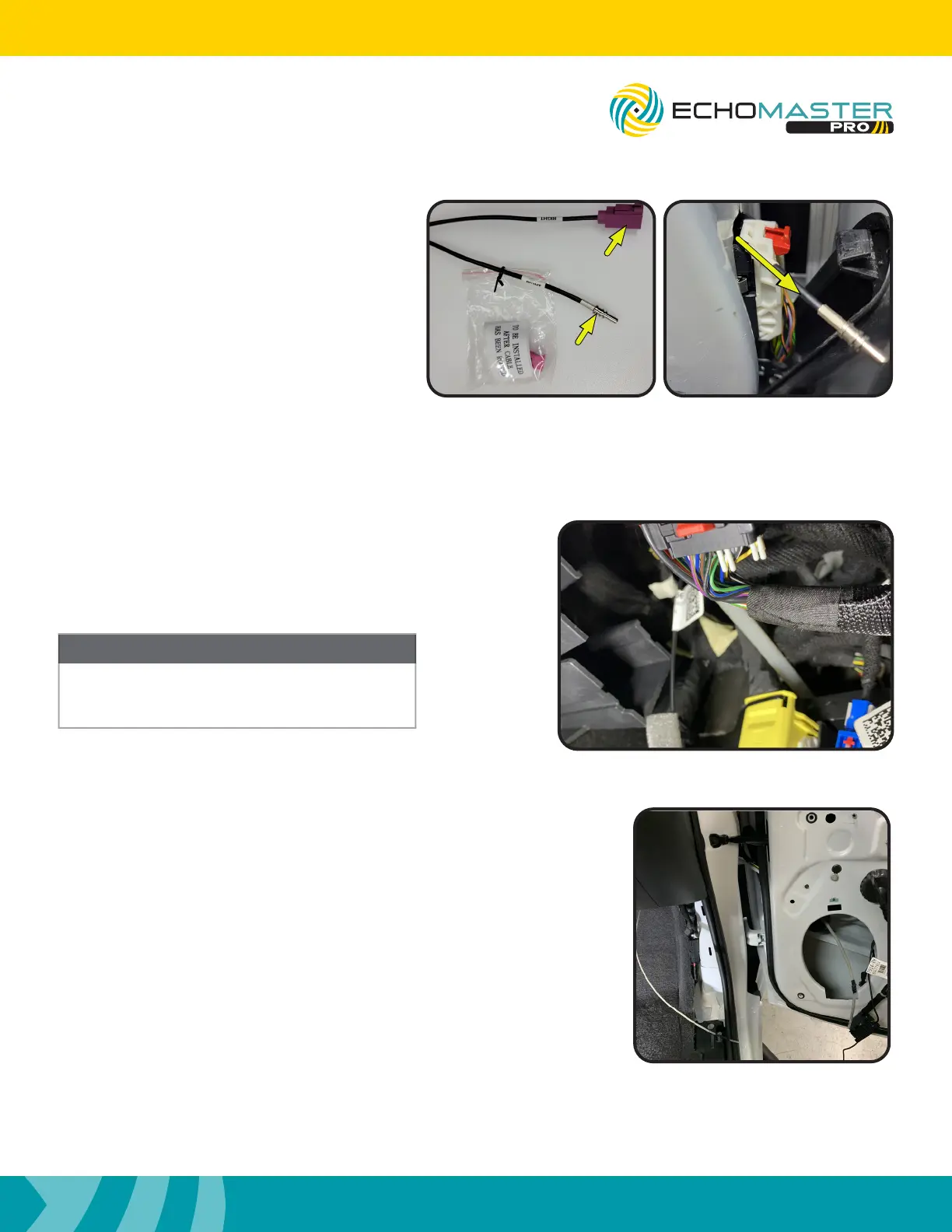

Step 19:
Continue routing the fish tape through the door boot and into
the speaker opening. Secure the loose end of the GMS4-M2F
extension cable to the fish tape like done previously in step 6.
Step 17:
Locate GMS4-M2F-72 (RIGHT) or GMS4-
M2F-128 (LEFT) and remove the small ziploc
bag and set it aside. The connector housing
will be installed after the cable is routed.
Secure the bare connector end of the camera
extension cable to the fish tape using electrical
tape. The cable will be routed from the interior
of the vehicle to the exterior.
Module Module
ConnectorConnector
Camera Camera
ConnectorConnector
Step 18:
From inside the vehicle: route the fish tape along the factory
wiring, exiting the vehicle just below the factory door connector.
Depending on the vehicle’s trim level, it may be
easier to route the fish tape from outside of the
vehicle to inside of the vehicle.
NOTE
To Next Page
