Trailering Camera System

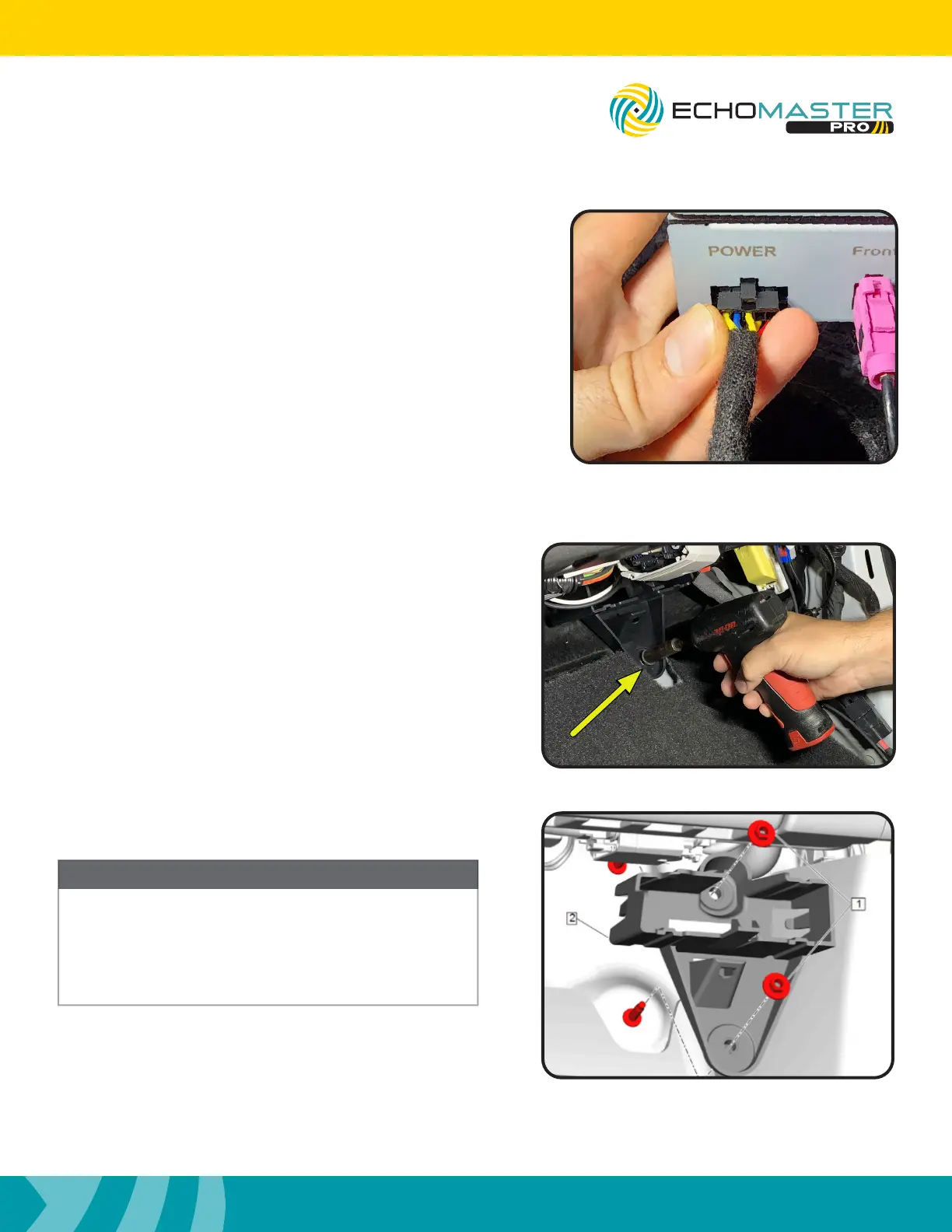

Step 8:
Finally, connect the 10 pin black connector from GMS4-PTH-HAR
to the GMS4 module.
Step 9:
Remove the 10mm retaining nut from the plastic bracket in
the passenger side kick area.
If factory Multifunction Power Supply Converter
Bracket (#2) is not present, one will be needed along
with the 10mm fasteners (#1) for the module to
mount correctly. Please consult with your GM parts
department for ordering.
NOTE
To Next Page
