Installation Guide
3
tel - 1-866-766-2267
email - gmsupport@echomaster.com
Illustrations are typical and may not match exact vehicle detail
FCTP-GM2403
Trailering Camera System

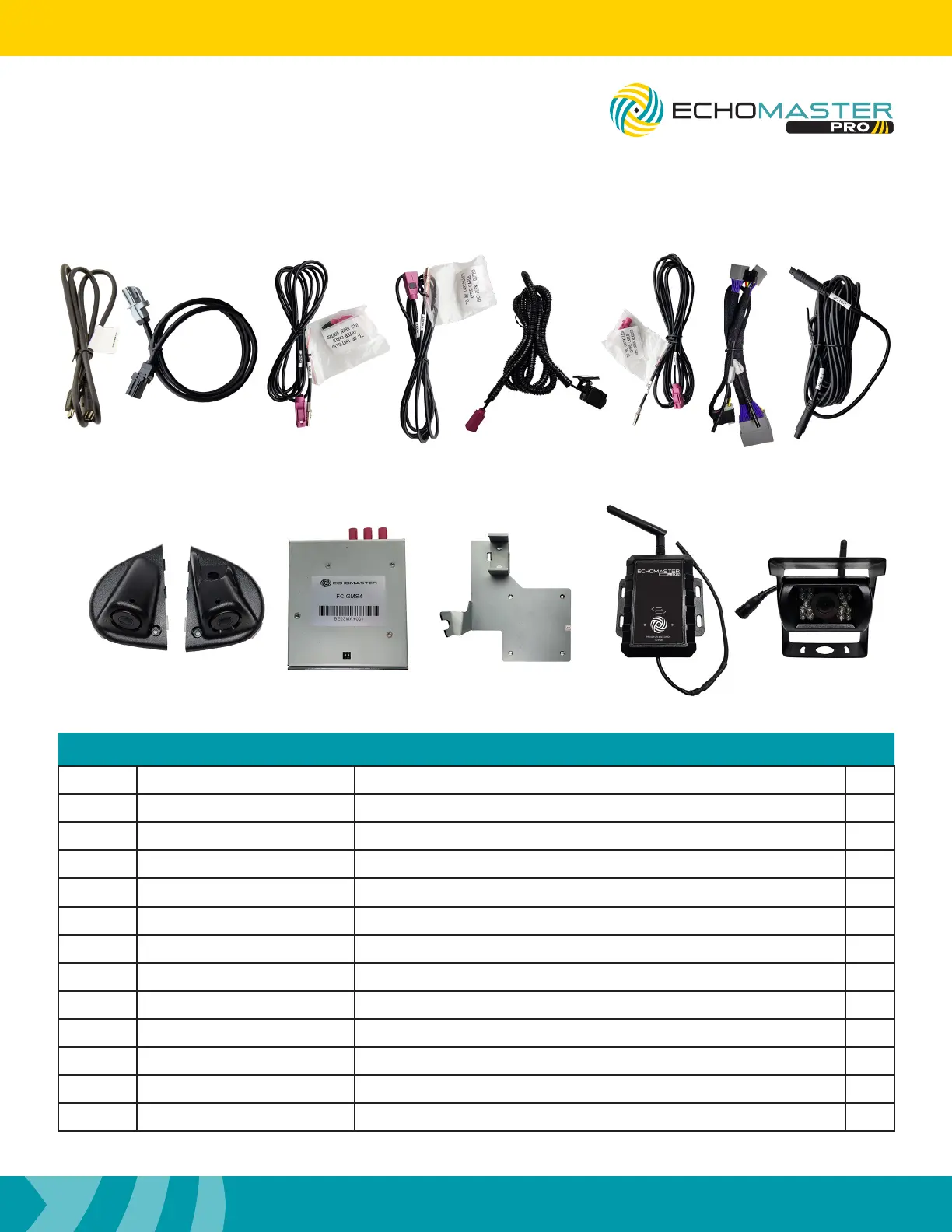

What’s in the Box
Parts Description
FCTP-GM2403
Image Part Number Description Qty
1
GMS4-USB-CBL USB Update Cable for FC-GMS4 Interface
1
2 GMS4-LVDS-HAR LVDS Harness for FC-GMS4
1
3 GMS4-M2F-72 72” RIGHT Camera Fakra Extension Harness
1
4
GMS4-M2F-50 50” FRONT Camera Fakra Extension Harness
1
5 PCAM-12FF Front Camera
1
6
GMS4-M2F-128 128” LEFT Camera Fakra Extension Harness
1
7
GMS4-PTH-HAR Power / CAN Harness for FC-GMS4
1
8
RVC-W9-RXEXT RVC-W9 Wireless Receiver Extension Harness
1
9
SCPT1HD/SVC-04 Side Mirror Cap Camera Mounts (L&R)/Cameras
1
10
FC-GMS4 Interface Module For 2022+ GM Trucks 1
11
FC-GMS4-BRK Mounting Bracket for FC-GMS4
1
12
RVC-W9 Wireless Trailer Camera and Receiver
1
1
2
3 4 5 6
9 10 11 12
7 8
