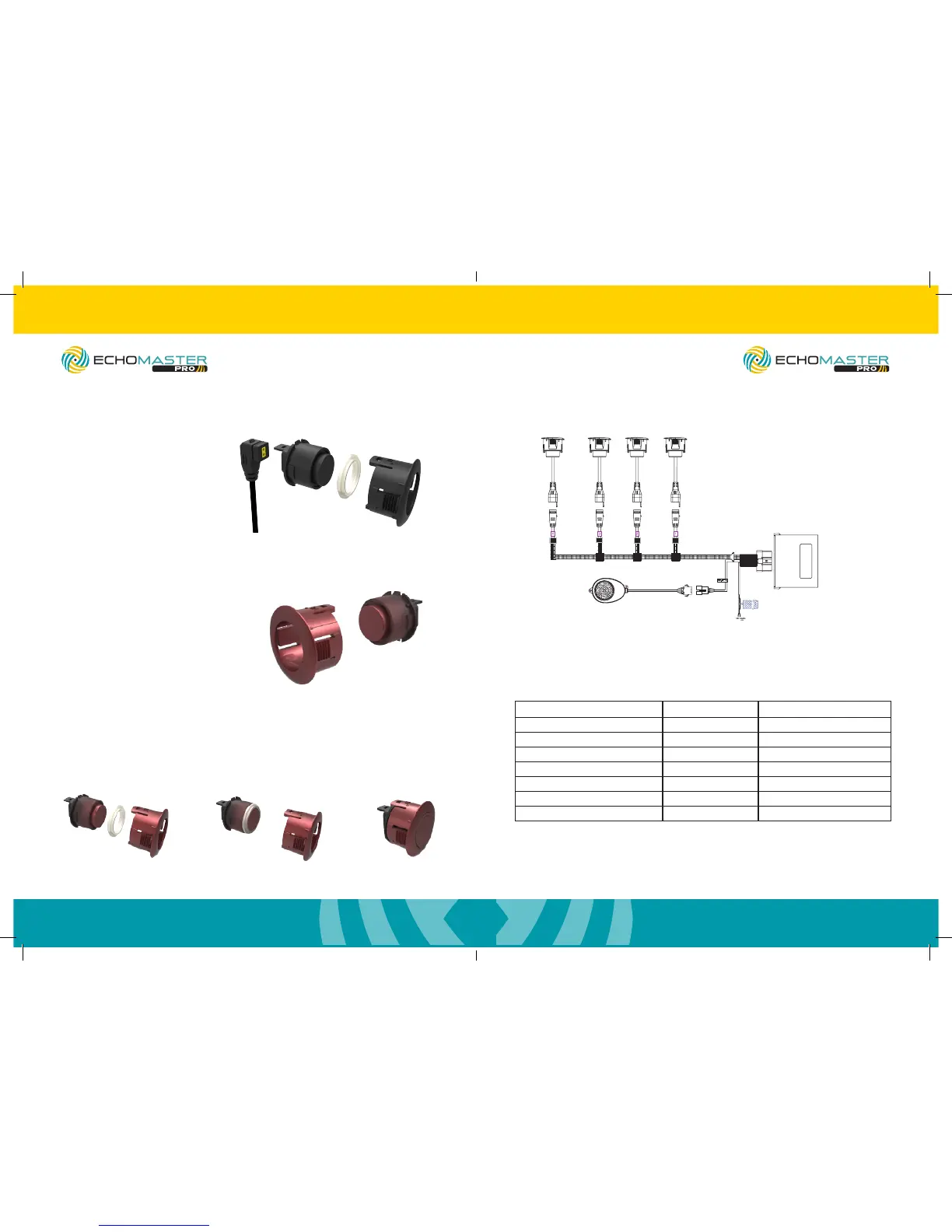

Sensor Painting
Step 1
Remove the silicon gasket
and disconnect cable before
painting the sensors.
Certain colors may require a
thin coat of primer.
Step 2
Paint the front of the sensors and the
angle sleeve. Avoid getting excessive
paint on the back of the sensors.
Paint thickness should not exceed
1mm or sensors may not function
properly.
Note: Gasket is only removable on
paintable sensors.
Step 3
After the paint has fully dried, reassemble the sensors as shown below.
Wiring Diagram
Operating Guide
System will become engaged when vehicle is put into reverse. The system should beep one time
when reverse is activated to notify the driver that it is on and working. Once an object is detected
within the range, the system will alert the driver via audible tone or visual indicator (if using the
display).
NOTE:
If using optional display (PA-DISPLAY)
connect to main harness in place
of speaker
Distance Awareness Display/Alarm Sound
<12”/ <0.3m Danger -P- (STOP)/Beep (Biiiiiiiiiiiiiiiiiii)
12” – 19”/ 0.3-0.5m Danger Inches/Bi. Bi
19” – 27”/ 0.5-0.7m Caution Inches/Bi.. Bi
27” – 35”/ 0.7-0.9m Caution Inches/Bi… Bi
35” – 47” / 0.9-1.2m Safety Inches/Bi…. Bi
47” – 67” / 1.2-1.7m Safety Inches/Bi….. Bi
>67” / >1.7m Outside Inches (up to 98”)/None
NOTE - The chart reects the default zone range. Performance may be affected by the following:
Heavy rain, loose gravel/bumpy road, steep slopes, at/smooth surfaces. Keep sensor surface
free of snow, ice, mud, etc.
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
PS-RBP/PS-RDIS
ParkAlert Rear Sensor System
with Buzzer or Display
