6
1. Line Cutting Head
2. Plastic Guard
3. Outer Aluminium Tube and inner Drive Shaft
4. Aluminium Quick-fit Connector
5. “D”Type Handle
6. Backpack
7. Fuel Tank
8. Fuel Tank Cap
9. Recoil Starter
10. Choke Lever
11. Control Handle
12. Throttle Trigger
13. Throttle Trigger Lock-Out
14. Ignition Switch
15. Bar Cover
16. Oregon Chain
17. Oregon Guide Bar
18. Gear Gase
ASSEMBLY
It is necessary to fit flexible pipe to the engine and “D”handle to the power unit . Fit safety guard to the
brush cutter/grass trimmer accessory if you purchased this optional accessory set.

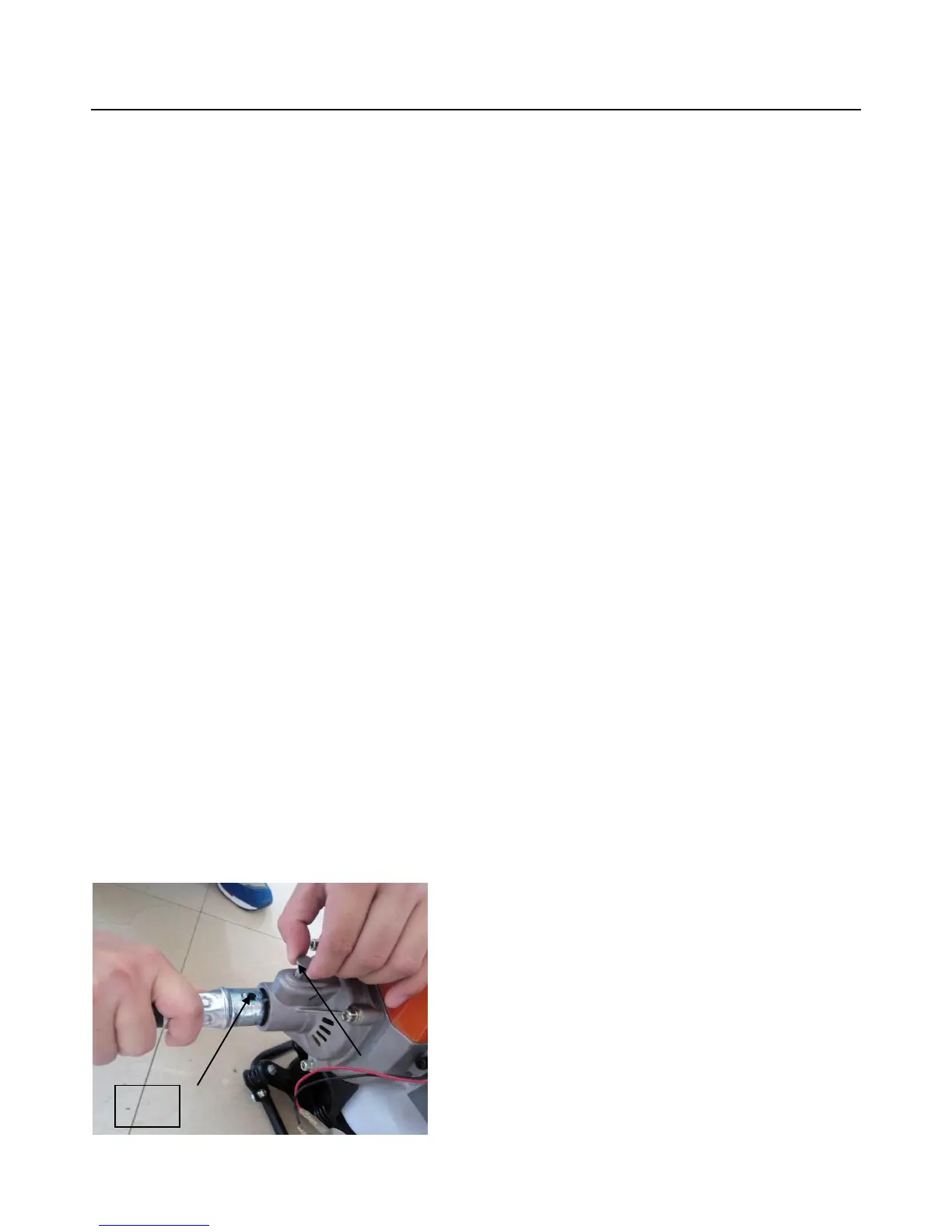

Fitting the flexible pipe to the engine.
Pull up the spring-loaded button connecting the flexible drive to the engine, insert the flexible drive and
locate the button into the hole in the drive. Release the button. Make sure the two are fully
connected.(see Fig1)
19. Blade with full Blunt extension protection
20. Optional Extra Extension Pole
21. Brush cutter 3 tooth blade
22. The throttle Trigger lock button
23. Primer Bulb
24. Flexible pipe
25.Starter rope extension tube
