Major Components
______________________________________________________________________________________
2-4 Algas-SDI Operations & Maintenance Manual P/N 52632

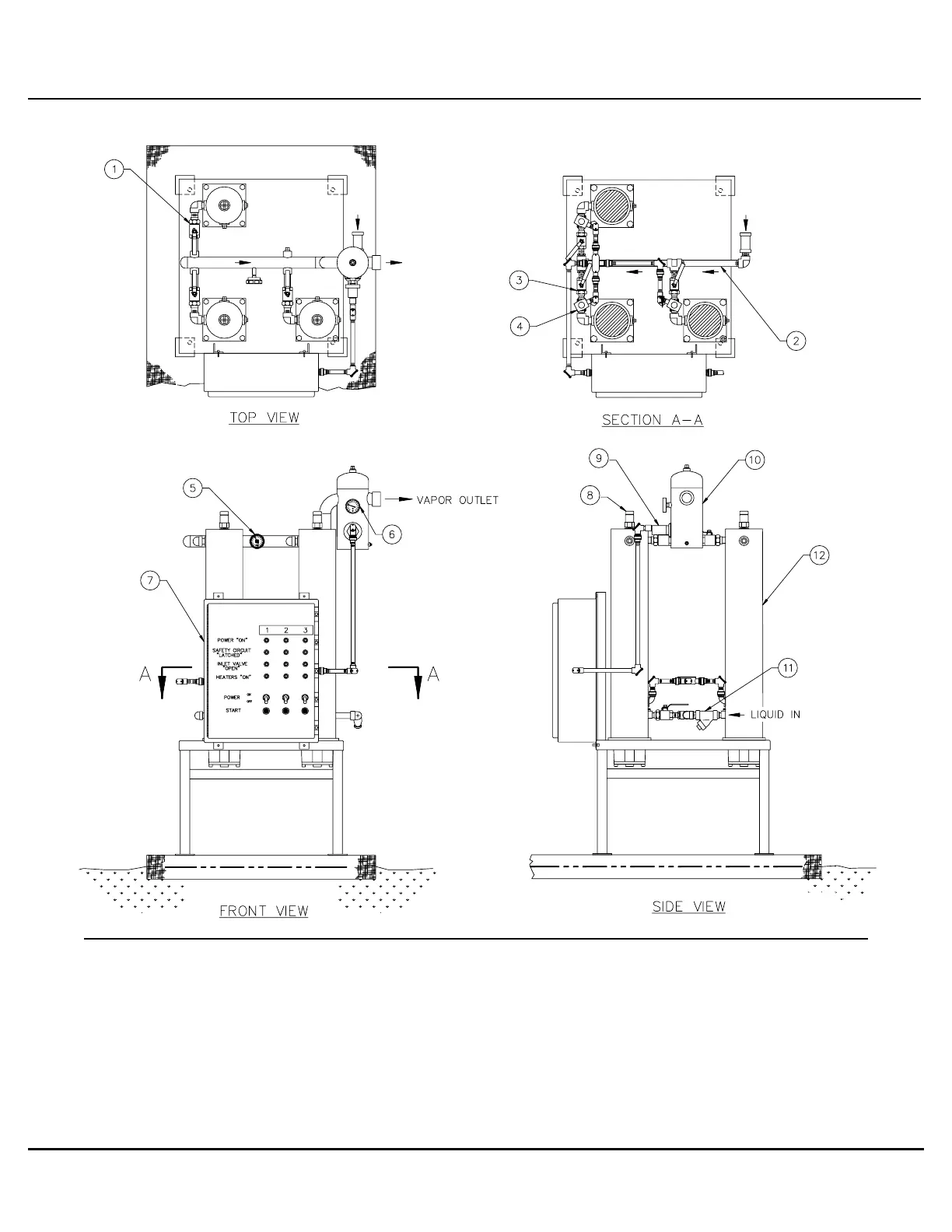

Figure 3 – Vaporizer Major Components - Division 2 Models
Major Components (2).dxf
1. Vapor outlet isolation valve 7. Control panel
2. Liquid inlet manifold 8. Relief valve
3. Liquid inlet isolation valve 9. Liquid level safety switch
4. Liquid inlet safety solenoid valve 10. Outlet vapor header
5. Outlet manifold pressure gauge 11. Liquid inlet strainer
6. Outlet temperature gauge 12. Vaporizer heater core
