Eclipse Algas-SDI POWER Series User Manual

Major Components
______________________________________________________________________________________
Algas-SDI Operations & Maintenance Manual P/N 52632 2-5
1

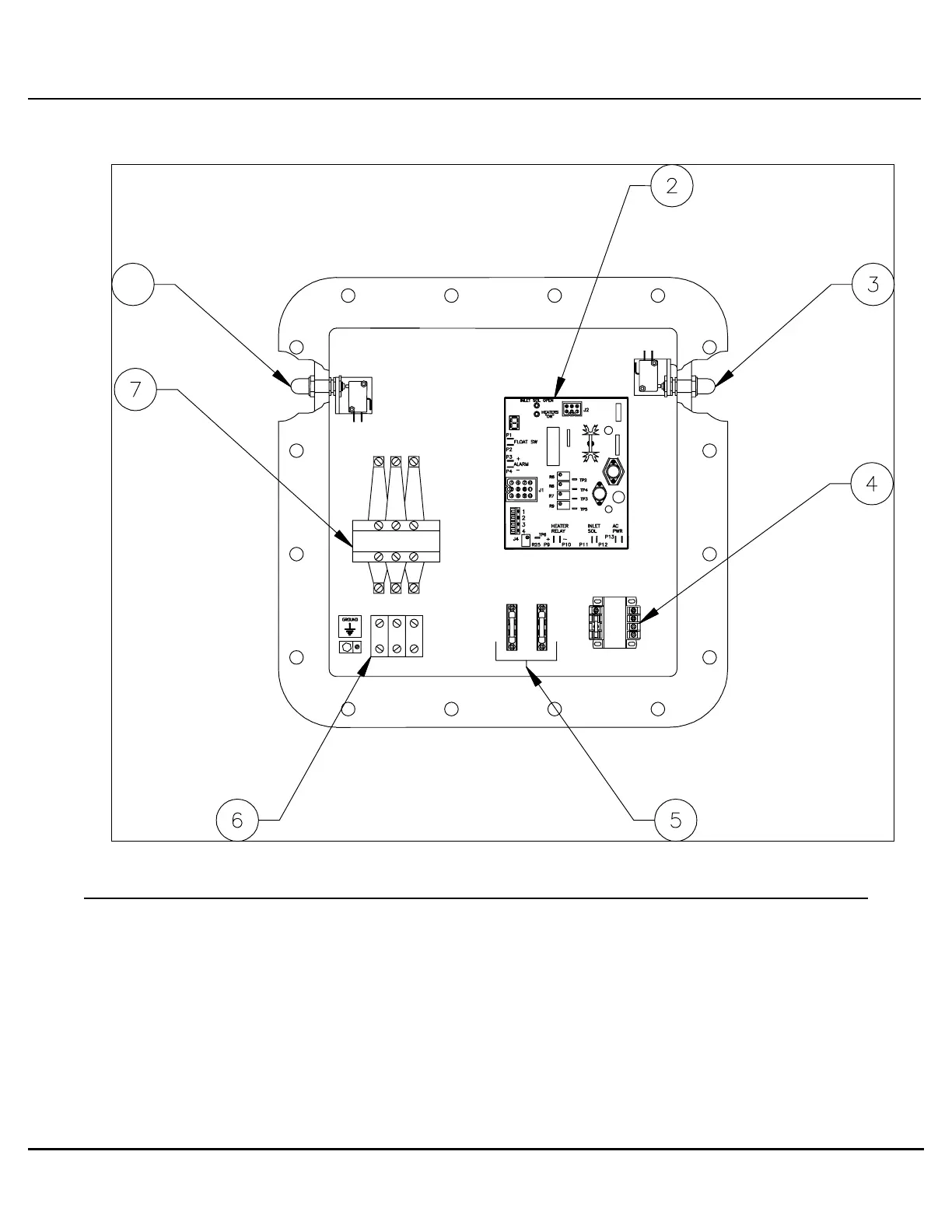

Figure 4 – Control Box Major Components - Division 1 Models
Control Box (1).dxf
1. Start pushbutton (momentary) 5. Transformer/solenoid valve fuses
2. Control board 6. Input power distribution blocks
3. Stop pushbutton (momentary) 7. Hermetically Sealed Heater control relay
4. Transformer-Control Board/Solenoid Valve
