Major Components
______________________________________________________________________________________
2-6 Algas-SDI Operations & Maintenance Manual P/N 52632

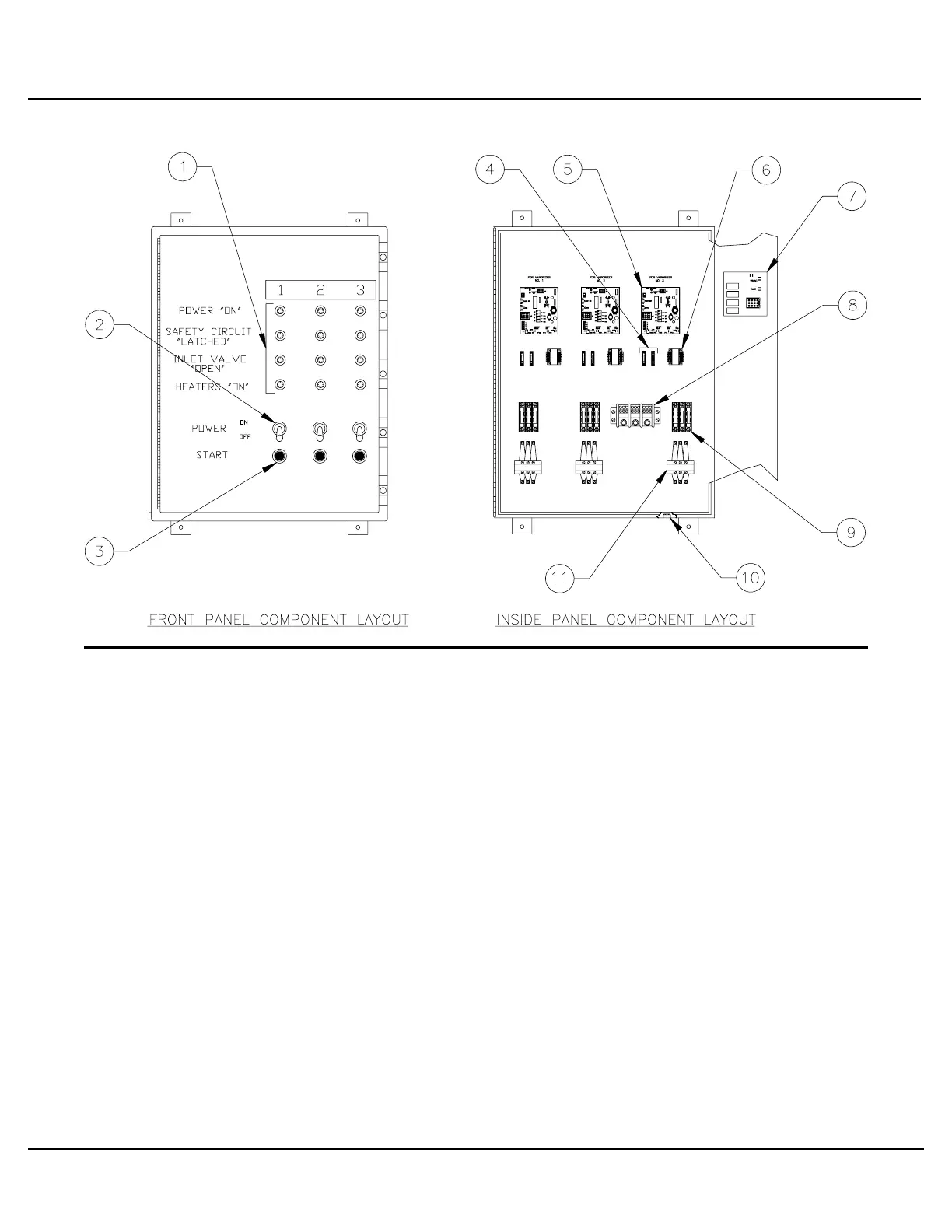

Figure 5 – Control Box Major Components - Division 2 Models
Control Box (2).dxf
1. Indicator lamps 7. Single float switch PC board
2. ON/OFF switch (maintained) 8. Line power distribution block
3. Start pushbutton (momentary) 9. Heater protection fuses
4. Transformer/solenoid valve fuses 10. Ground lug
5. Control board 11. Hermetically Sealed Heater control relay
6. Transformer-Control Board/Solenoid Valve
