Eclipse AVN50D User Manual

-
11
-
Foot-operated
Parking brake
Hand-operated
Parking brake

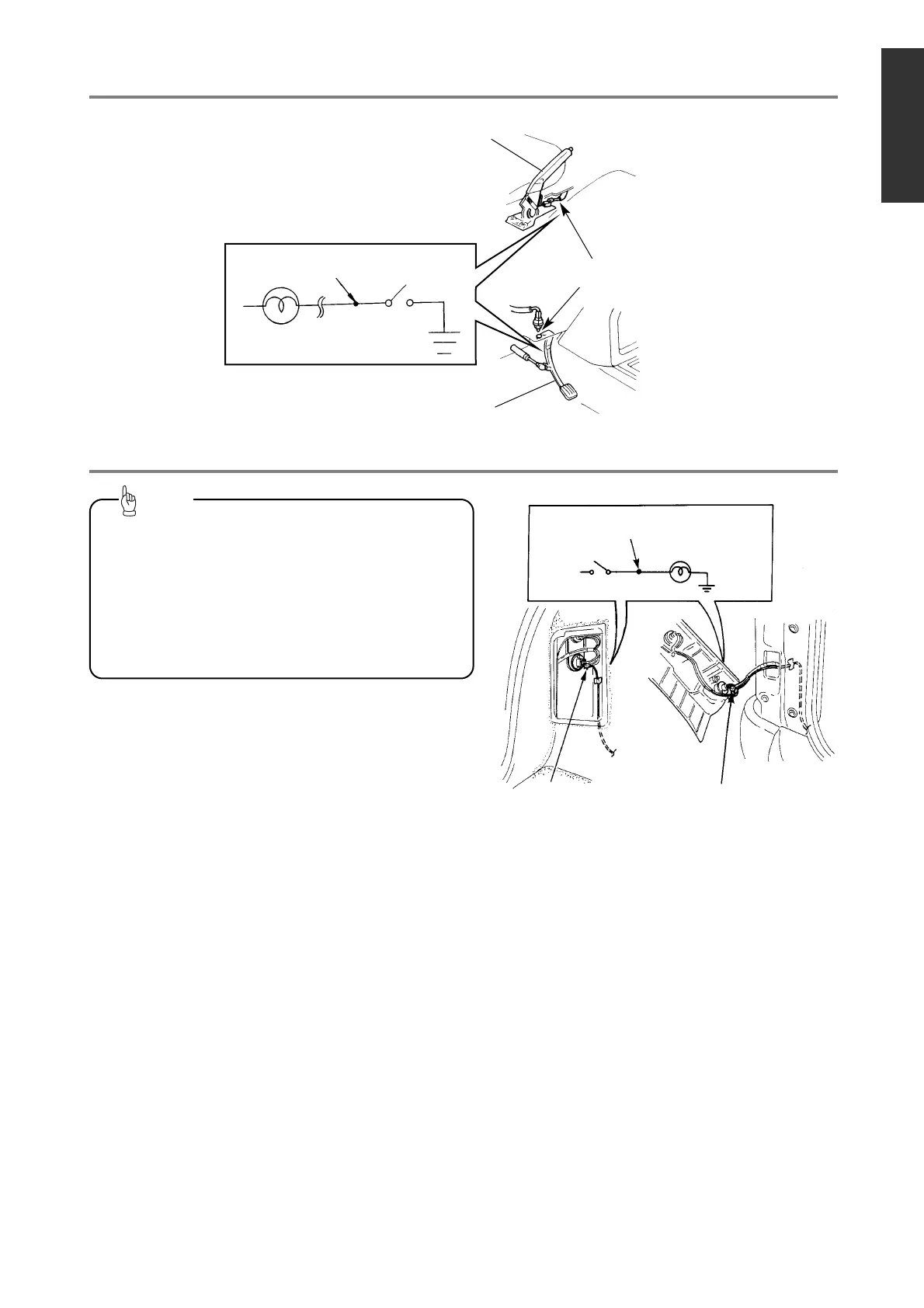

- A connecting the point for parking brake (example)
-
Attach a splicing
connector at this location.
Reverse signal wire
Reverse lamp
Reverse signal wire
- A connecting point for the reverse signal (example)
-
••
Be sure to connect the reverse signal wire. If it is
not connected, the vehicle position may be
incorrect when the vehicle is reversed.
••
Use a circuit tester to confirm that a sensing
voltage of 6 V or higher is generated when the
vehicle is reversed.
Tip
Parking brake
Signal Wire
Attach a splicing
connector at this location.
Parking brake
signal wire
