Remove the pocket and any other accessories
from the center cluster to make room for the main
unit.
1
Remove the mounting brackets for the pocket.
2
Attach the brackets to the main unit.
3
Install the main unit in the vehicle.
4
Be careful not to forcefully push on the main unit's
display or buttons during installation. This may
result in damage to the main unit.
Tip
Be sure to use the supplied accessory mounting
screws (Red: M5 x 8) as the mounting screws. If
any other screws are used, they may damage the
inside of the main unit.
Tip
-
16
-

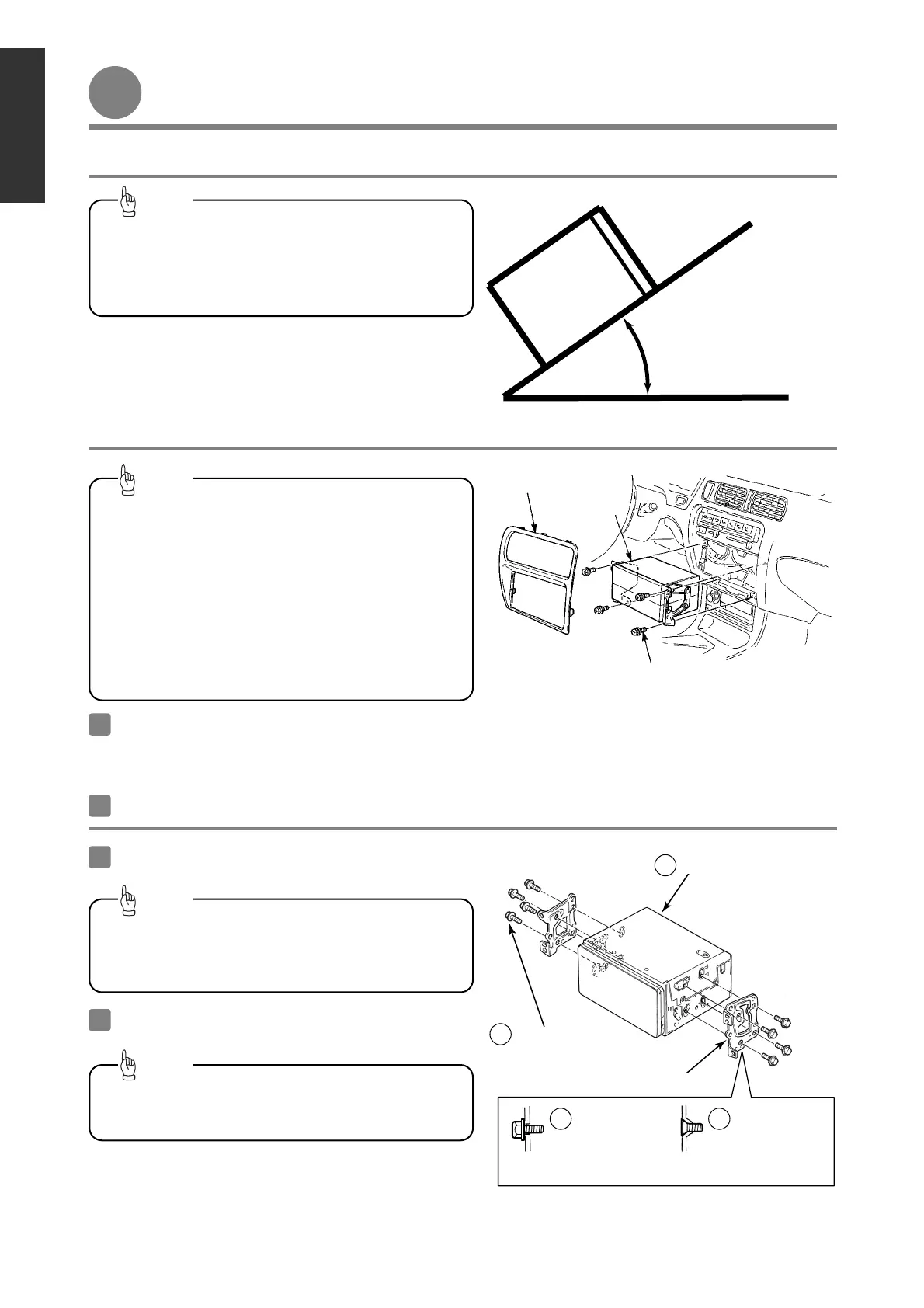

Installing the main unit
Installing the main unit
30˚ or less
Level (reference)
Front
-
Installation angle
-
To maintain proper function, the main unit must be
mounted less than 30 degrees. If the angle is in
excess of 30 degrees, DVD/CD skipping and
improper DVD/CD ejection may occur.
Tip
Mounting bolts
Pocket, etc
Center cluster panel
Main unit
Mounting bracket
Hex-head bolt
(Red:M5 x 8) x 8
Hex-head bolt
(Red:M5 x 8) x 8
Flathead
screw
(Red:M5x8) x 8
Select the screws in accordance with the shapes
of the screw holes in the mounting bracket.
6 7
6
1
- Mounting the main unit -
English Español Français Italiano
Nederlands
SvenskaEnglish
••
Carefully bind any excess length of wire that
is connected to the main unit and secure it
to an area of empty space in the vehicle so
that it does not dislodge or interfere with the
main unit or vehicle-side
equipment
. If the
wires are not handled correctly, operating
problems or short-circuits may occur, and
this may result in the danger of fire or other
accidents.
••
Connect all wires before installing the main
unit.
Tip
