Notes on installation
••
Check the vehicle speed pulse signal, parking brake signal, and reverse signal carefully before making
the connections. If the wires are incorrectly connected, accidents or problems with correct operation
may result.
••
The label on the vehicle speed pulse signal wire contains a protection circuit, so do not cut the wire or
remove the protective circuit, otherwise problems with operation may result.
••
Bind the wires together with tape so that they do not cause an obstruction while driving. If they become
wound or entangled around parts such as the steering wheel, shifting lever, or brake pedal, accidents
may result.
The locations where vehicle speed pulse signal wire, parking brake signal wire, and reverse wire may
vary depending on the vehicle model and grade. Ask the car dealer or your nearest Eclipse dealer for
details.
Tip
Connecting the v
Connecting the v
ehicle speed pulse
ehicle speed pulse
, par
, par
king
king
br
br
ak
ak
e
e
, and re
, and re
v
v
erse wires
erse wires
-

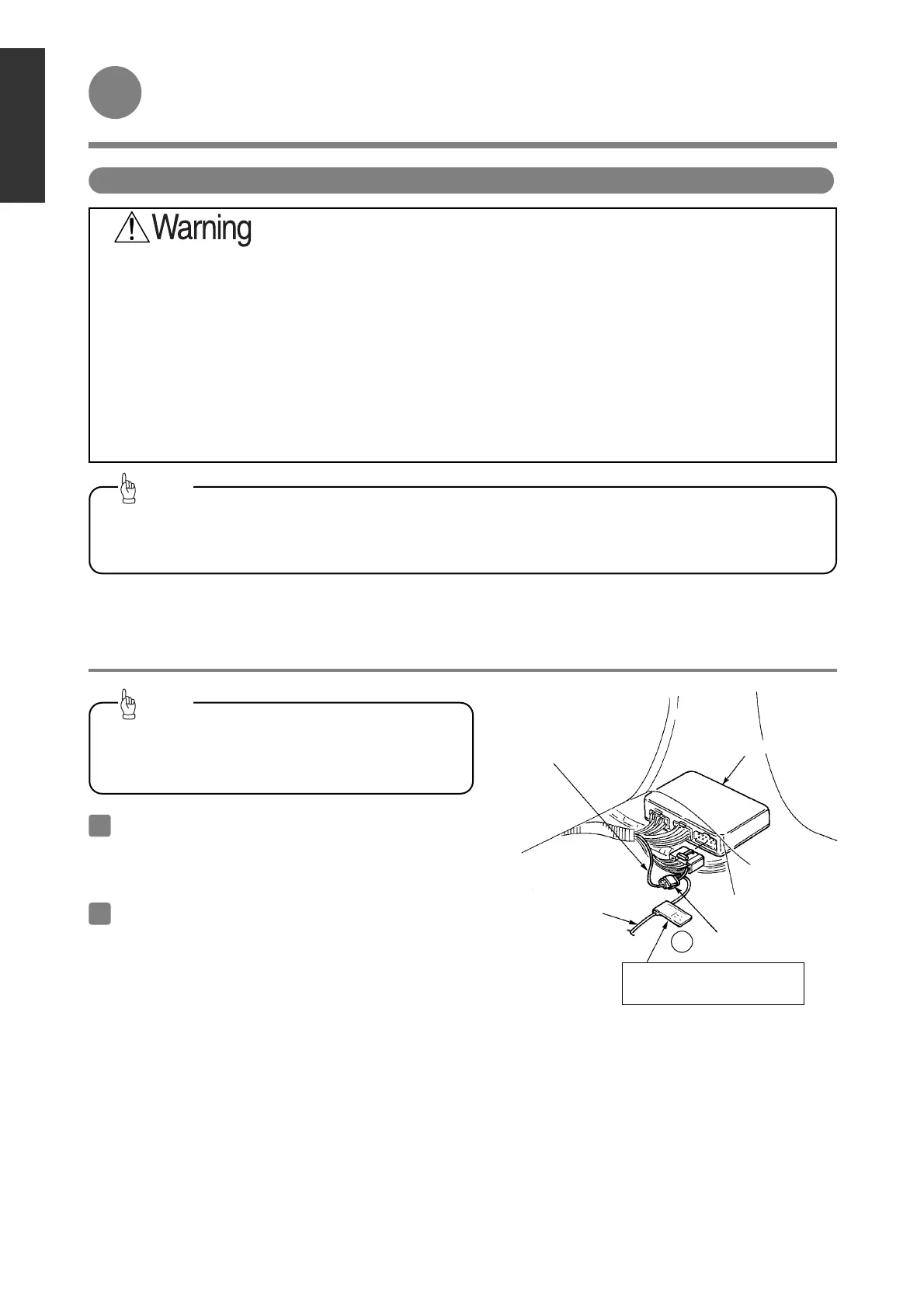

A Connecting point for the vehicle speed pulse signal (example)
-
Vehicle speed pulse
signal wire (vehicle harness)
Engine computer
Vehicle speed pulse
signal wire (purple/white)
Contains a protective circuit
so never remove.
Splicing connector
Always be sure to connect the vehicle speed
pulse, otherwise the measurement precision will
be greatly reduced.
Tip
8
Use a splicing connector to connect the vehicle
speed pulse signal wire (purple/white) coming
from the main unit to the vehicle speed pulse
signal wire of the vehicle.
1
Route the vehicle speed pulse signal wire to the
main unit.
2
