UNDERSTANDING THE
SOUND INDICATOR
The SOUND Indicator on the main screen is used to
convey if the SOUND parameter in the Hardware menu
(page 52) is switched on or off.
There are two possible conditions that can be indicated:
In order for the trigger to be successfully operated
it must first be released and then pulled. The Trigger
Detection Indicator (TDI) is used to indicate each of the
possible trigger states.
From the factory the Geo will have the opto sensor
enabled. The micro-switch option can be selected by
referring to the Hardware Menu (see page 52).
UNDERSTANDING THE BBSS
INDICATOR (BBSS)
The BBSS is able to switch itself off in the event
that a blockage or contamination prevents it from
functioning correctly. In this instance, the BBSS will
switch itself back on once the blockage is cleared and
the correct operation can be resumed.

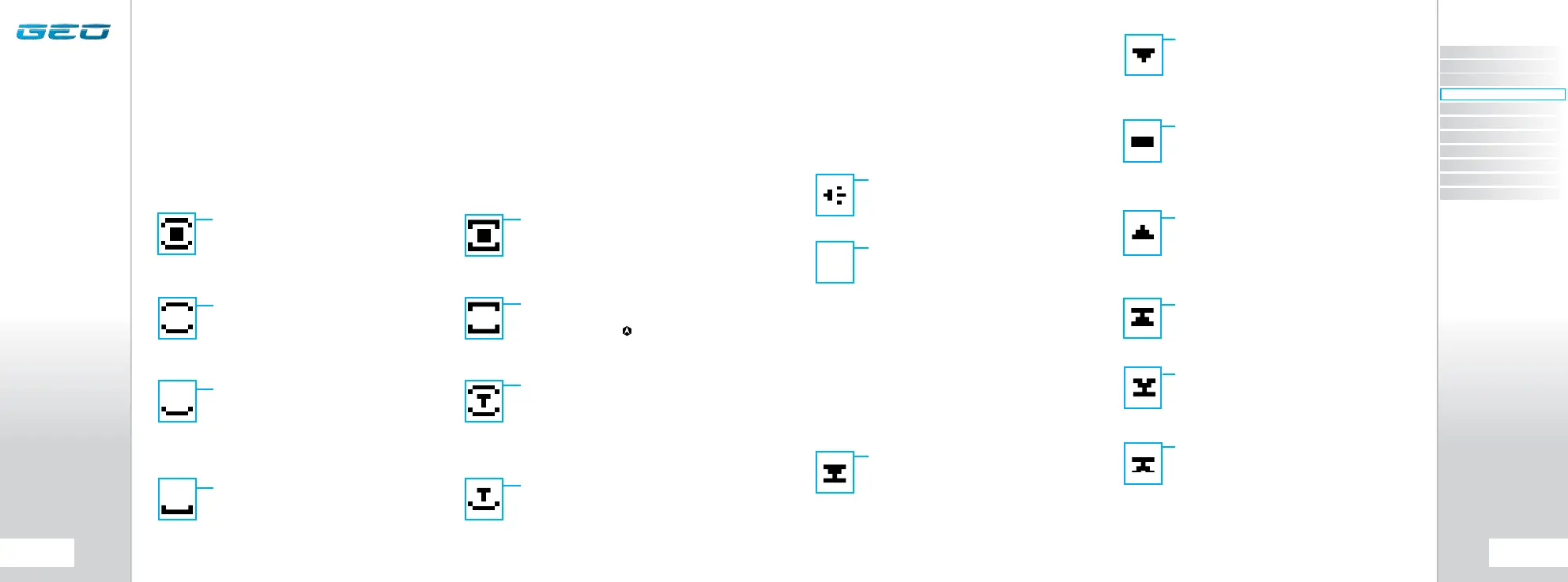

The BBSS Indicator on the main screen is used to
indicate the eight possible states of the BBSS as follows:
MICRO-SWITCH SELECTED, NOT
ACTUATED
The Geo is configured to use the micro-
switch to detect trigger pulls. The micro-
switch is not currently actuated, i.e. the
trigger is released.
OPTO SENSOR SELECTED, READING
MIDRANGE
The Geo is configured to use the opto
sensor to detect trigger pulls. The opto
sensor is currently reading somewhere
between the Opto Release Point and
the Opto Pull Point, i.e. the trigger is half
depressed.
MICRO-
SWITCH SELECTED, ACTUATED
The Geo is configured to use the micro-
switch to detect trigger pulls. The micro-
switch is currently actuated, i.e. the trigger
is pulled.
OPTO SENSOR SELECTED, READING
ABOVE PULL POINT
The Geo is configured to use the opto
sensor to detect trigger pulls. The opto
sensor is currently reading above the Opto
Pull Point, i.e. the trigger is considered
‘pulled’.
OPTO SENSOR SELECTED, READING 0%
The Geo is configured to use the opto
sensor to detect trigger pulls. The opto
sensor is currently reading 0%, i.e. the
trigger is fully released.
OPTO SENSOR SELECTED, READING 100%
The Geo is configured to use the opto
sensor to detect trigger pulls. The opto
sensor is currently reading 100%, i.e. the
trigger is fully depressed.
OPTO SENSOR SELECTED, READING
BELOW RELEASE POINT
The Geo is configured to use the opto
sensor to detect trigger pulls. The opto
sensor is currently reading below the Opto
Release Point, i.e. the trigger is considered
‘released’.
UNDERSTANDING THE
TRIGGER DETECTION
INDICATOR (TDI)
SOUND ENABLED
The SOUND parameter is enabled. The Geo
will make sounds when switched on and off
and when the game timer alarms or times
out.
SOUND DISABLED
The SOUND parameter is disabled. The Geo
will not make any sounds.
BBSS ENABLED AND BALL DETECTED
The Geo can be fired at the maximum rate
of fire determined by the chosen firing
mode.
BBSS SENSOR FAULT HAS BEEN
CLEARED
The sensor has been re-enabled. A ball is
detected and the Geo can be fired at the
maximum rate of fire determined by the
chosen firing mode.
BBSS ENABLED NO BALL DETECTED
The Geo cannot be fired.
BBSS FAULT HAS BEEN CLEARED
The sensor is enabled. No ball is detected
so the Geo cannot be fired. To reset the
BBSS icon, use the button to switch off
the BBSS and then back on again.
BBSS DISABLED
The Geo can be fired at a maximum rate of
fire as set by the OFF ROF
parameter (see
page 40)
BBSS ENABLED IN TRAINING MODE
The BBSS has been over-ridden as the
user has selected training mode. As the
user has chosen to leave the BBSS on, the
achievable rate of fire is limited by the
firing mode.
BBSS FAULT DETECTED
The system is disabled. The Geo can only
be fired at a maximum rate of fire of 10bps,
regardless of the chosen firing mode.
BBSS DISABLED IN TRAINING MODE
The BBSS has been over-ridden as the
user has selected training mode. As the
user has chosen to turn the BBSS off,
the achievable rate of fire is limited by
the OFF ROF parameter (see page 40).
