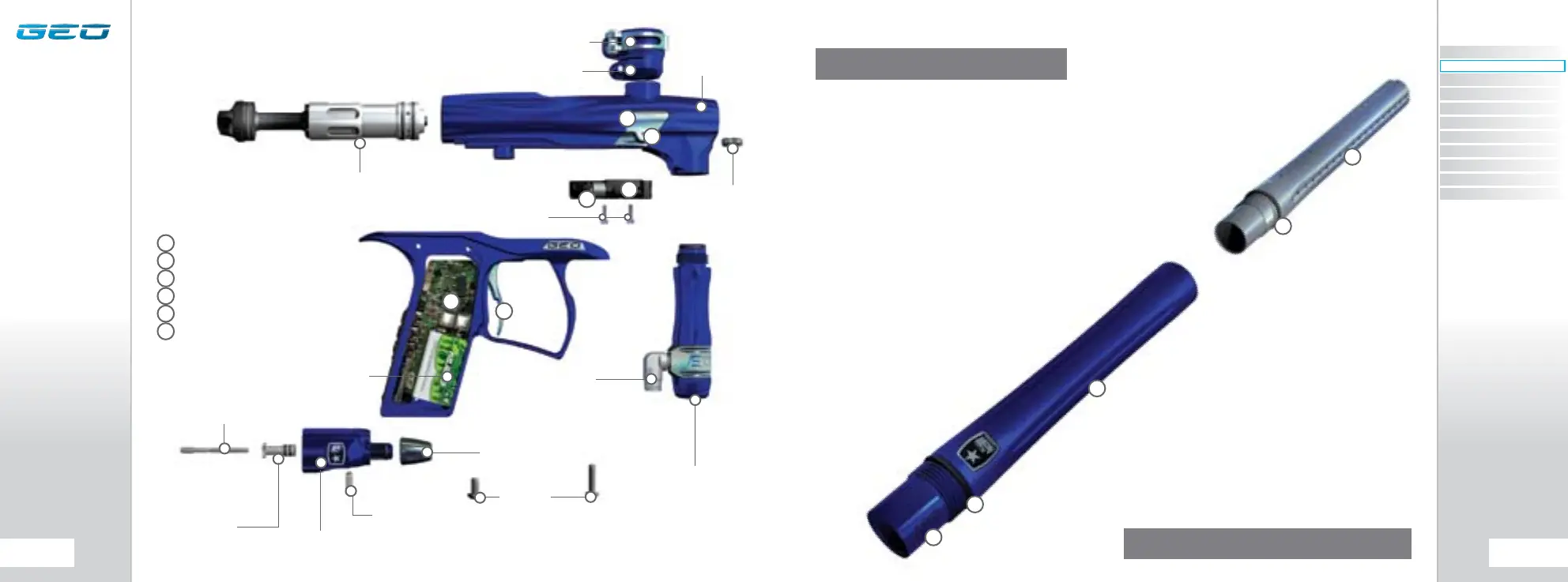

BOLT ASSEMBLY
KNOW YOUR GEO
BODY
CLAMPING LEVER
FEEDNECK
SOLENOID RETAINING SCREWS
BLANKING PLUG
INLINE REGULATOR
ASSEMBLY
FRAME
SCREW
OOPS
BODY
OOPS
KNOB
BATTERY
F TRIGGER
E CIRCUIT BOARD
D
PILOT VALVE
C
SOLENOID ASSEMBLY
B EYE COVER
A EYE COVER SCREW
F
E
C
D
A
B
MACRO LINE
ELBOW
OOPS
INSERT
OOPS PIN
OOPS
SCREWS
ECLIPSE SHAFT 3 BARREL
Your Eclipse Geo comes as standard with a Eclipse Shaft 3 barrel.
The barrel screws into the body of the Ge
o using a right hand thread
meaning that if you hold the Geo pointing away from you the barrel screws
into the body in a counter-clockwise direction.
The barrel comprises of two parts, a barrel back and a barrel front .
The two parts are joined together w
ith a left hand thread me
aning that
if you hold the barrel, with the back nearest you, the front unscrews in a
counter-clockwise direction. The bore size of the barrel back is engraved at
the end of the barrel back .
On the barrel back there is a #016 NBR70 o-ring which prevents the barrel
from vibrating loose from the Geo body when the marker is fired. There is also
an o-ring on the barrel front (#015 NBR70) helps with alignment between
the barrel back and front.
Replace these o-rings as necessary.
NOTE: THE GEO WILL ONLY ACCEPT COCKER THREADED
BARRELS. DO NOT USE ANY OTHER TYPE OF BARREL THREAD.
A
B
E
C
D
E
D
C
NOTE: THE BORE SIZE OF YOUR SHAFT 3 MAY VARY
ACCORDING TO THE MODEL OF GEO YOU HAVE.
A
B
