Part 2 – Specifications / Technical data
J K
A
B C
D
E
F
G
H
I

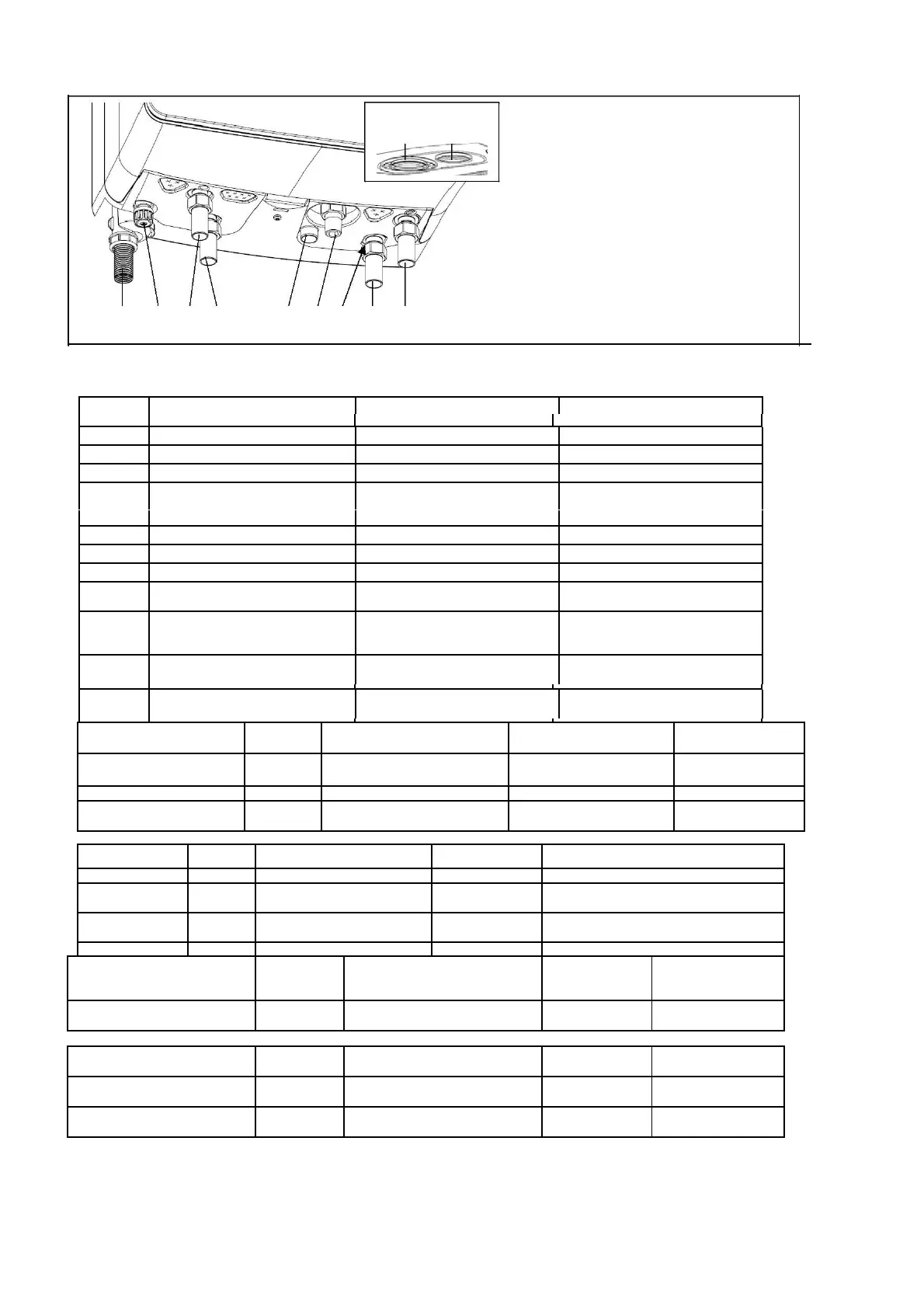

Figure 1.4
Table 1.1 Tech Specifications
Character
Description
Connection size (SI, Metric)
Connection size (Imperial)
A
Connection for condensate trap
25 mm
0.98 inch
B
Filling valve
-
-
C
CH supply
22.22 mm
3/4“ CPS (7/8“ outer diameter)
D
-DHW outlet (Cxxx types)
22.22 mm
3/4“ CPS, (7/8“ outer diameter)
-Mains water supply for filling loop
(Hxxx types)
E
Vent drain pump
-
-
F
Connection for gas line
-
1/2“ NPT outer pipe thread
G
Flow limiter (Cxxx types)
-
-
H
-Cold tap water (Cxxx types)
22.22 mm
3/4“ CPS, (7/8“ inch outer
-Tank supply hot (Hxxx types)
diameter)
I
-CH return (Cxxx types)
22.22 mm
3/4“ CPS, (7/8“ inch outer
-CH return and Tank Return (Hxxx
diameter)
types)
J
Concentric air supply / Flue gas
Concentric 80/125 – 60/100 mm
Concentric 3.2/4.9 – 2.4/3.9 inch
discharge
K
Not used (to be closed when using
concentric flue gas system)
General
Metric /
Eco-King C99,C100, H100
Eco-King C140, H140
Eco-King C200, H200
Imperial
Dimensions (h x
mm / inch
695x480x410 /
695x480x410 /
695x480x410 /
w x d)
27.4x18.9x16.1
27.4x18.9x16.1
27.4x18.9x16.1
Weight (empty)
kg / lb
31 / 68
34 / 75
37 / 82
Maximum absorbed electric
W / Btu/h
155 / 529
155 / 529
200/ 628
power
DHW operation
C99 Eco-King C100
Eco-King C140
Eco-King C200
Nominal load
Btu/h
16-99,000 16-105.000
19.800-135.000
26.900-185.000
Tap quantity at
2.0 2.1
2.6
4
60°C (dT=50K)
gal/min
Tap quantity at
3.6 3.7
4.4
6.1
40°C (d T=30K)
gal/min
Hot tap water
°C / ° F
61
– 142 61-142
61 - 142
61
– 142
DHW / TAP operation*
(connected to an external hot
water tank)
Eco-King H100
Eco-King H140
Eco-King H200
Input (0-2000ft) Gross calorific
value
BTU/h
16.000-105.000
19.800-135.000
26.900-185.000
CH operation
Eco-King C99 / C100 and H100
Eco-King C140
and H140
Eco-King C200 and
H200
Nominal input (0-2000 ft) Gross
calorific value
Btu/h
16.000-89.000 / 16.000-90.800
19.800-113.600
26.900-159.000
Max Output (0-2000 ft) at 50/30
°C**
Btu/h
85.000
106.500
150.000
* MAX DHW Input levels listed occur in both C (combi) & H model boilers when producing hot water. H-model connected to an external hot water tank.
** Output in condensing mode 12
