A1 E-BCU OIL control box
M1 Electric motor for pump and
blower wheel
T1 Ignition transformer
Y Graduated rod
Y1 Solenoid valve
3 Air regulation in the burner head
5 Fastening screws for equipment plate
9 Wieland socket
15 Burner flange
16 Release knob
102 Fuel-oil pump
103B Air regulation
113 Air intake
15 14
MAX 4 LN TW TC - 230V/50-60Hz
MAX Light oil
RANGE NAME BY FUEL TYPE
MAX 4 4 kg/h
MODEL SIZE (Gas: kW; Oil: kg/h)
MAX Low NOx Low NOx Class 3 yellow flame (<120 mg/kWh)
MAX Standard Class 2-OIL EN267 (<185 mg/kWh)
EMISSION COMBUSTION TYPE
- 1 stage
R 1 stage with preheather
TW Thermowatt E-BCU
OPERATION TYPE
TC Short head
TL Long head
HEAD TYPE
- Light oil
KER Kerosene
BIODIESEL Biodiesel
D Heavy oil: max visc. 50° E at 50°C
FUEL
230V/50-60Hz 230 Volt, 50-60 Hz
ELECTRICAL SUPPLY TO THE SYSTEM
3
113
103B
5
Y1
A1
M1
T1
15
16
102
9
Y

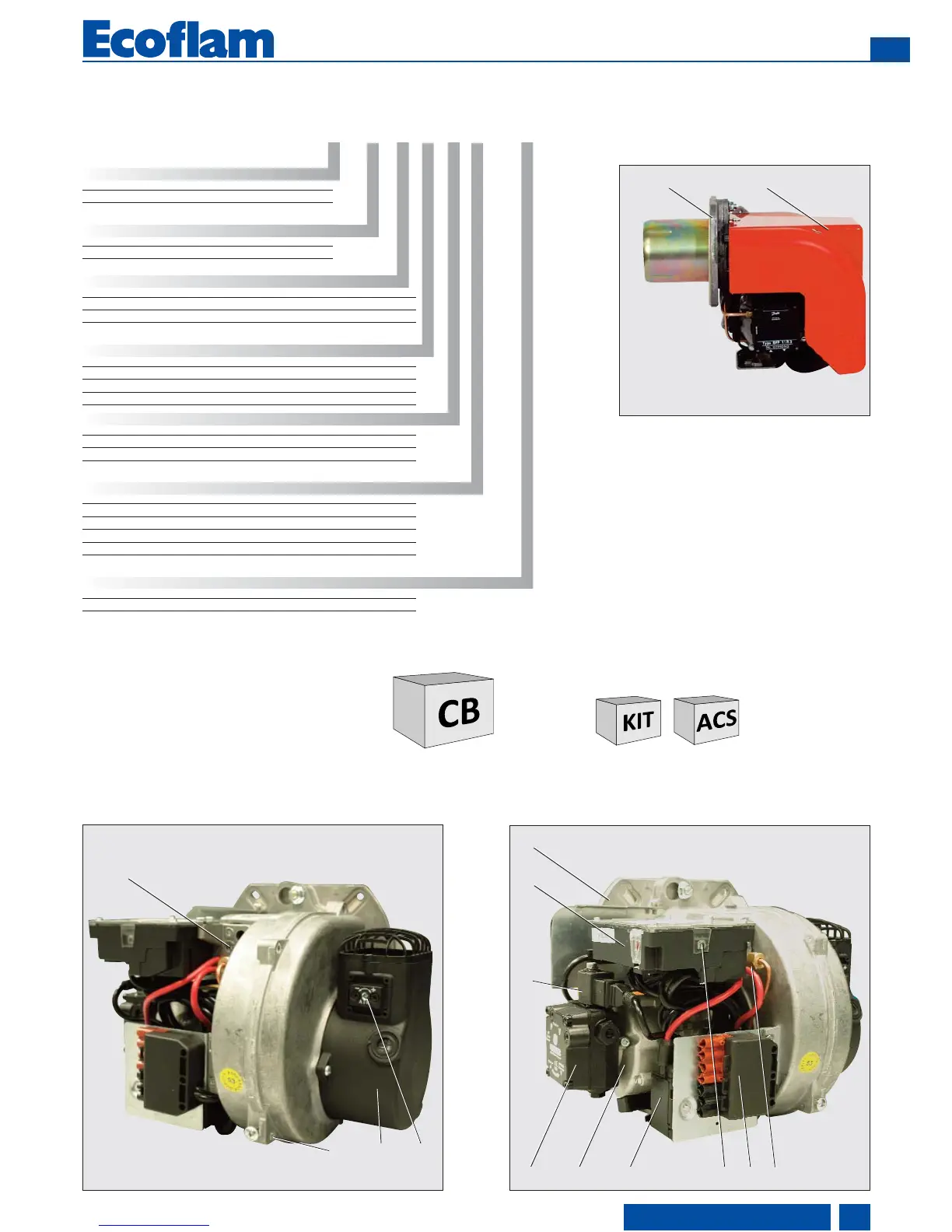

Contents - Burner description
Scope of delivery
CB: COMPLETE BURNER
- 1 bag including :
- multilanguage technical manual.
- filter and hoses.
- wieland plug.
- nozzle and spanner.
- screws, nuts and washer.
KIT & ACS delivered separately
