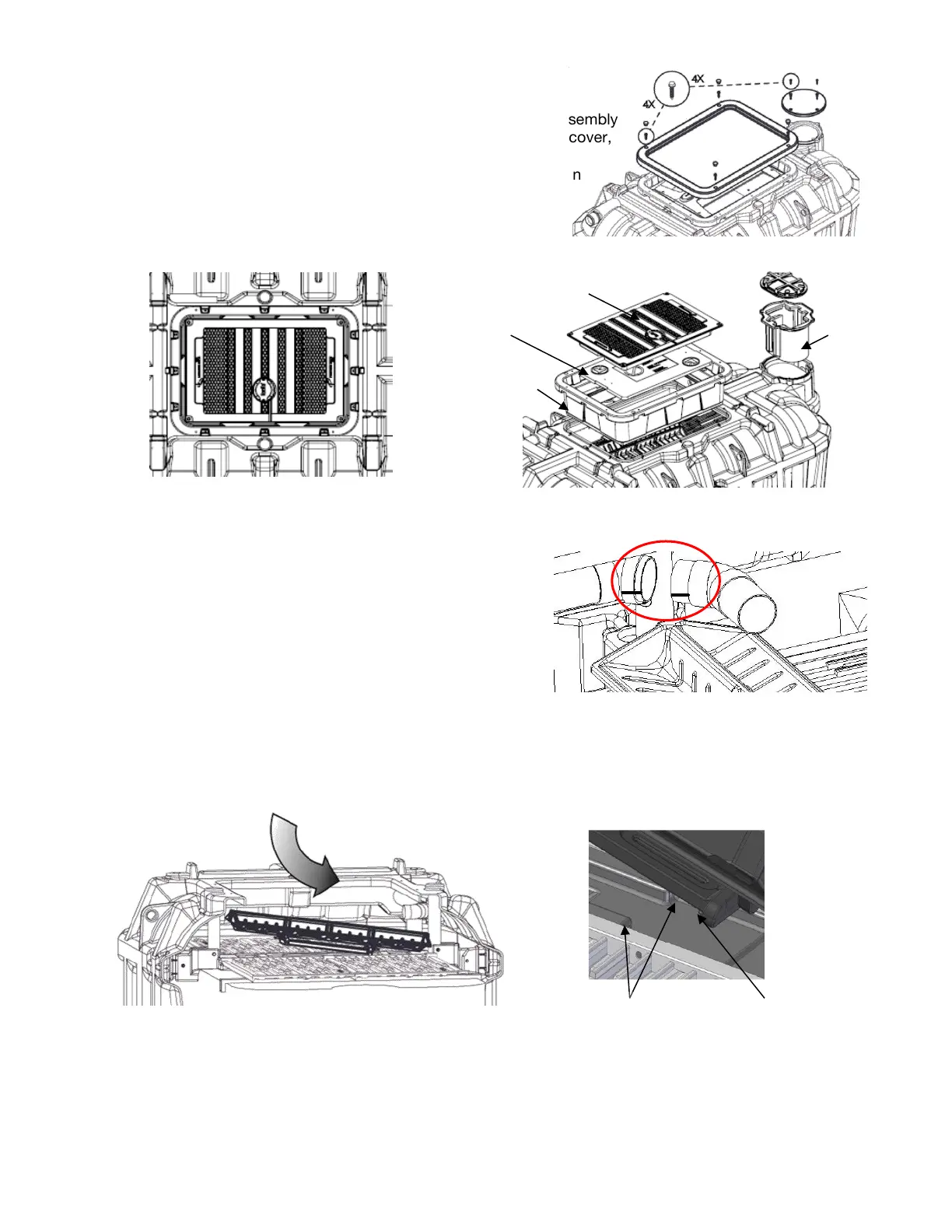

6.4.1 Models 5.7 and 7.3
• Unscrew and remove the packaging material from both accesses.
• Remove the main and secondary accesses. The main access assembly
includes the cover and the insulating panel. To remove the cover,
unscrew the four lag screws in the corners.
• Remove the box and internal components located on the distribution
plates.
• Glue the elbow assembly onto the water inlet pipe. Line up the
alignment marks to properly position the elbow assembly.
Once in place, the inlet pipe must be centred with the tipping
bucket. The elbow assembly can be found in the component
box, placed in the main access at the time of delivery of the
shell.
ATTENTION: Do not invert the direction of the elbow to avoid
decentring the water inlet pipe.
• Set the tipping bucket on the central support by inserting the two (2) blocking notches into the central
support’s anchor holes and fold back the opposite end to maintain the tipping bucket in place. Verify the
installation of the tipping bucket by activating it from left to right. It must not block along its course.
• Verify that:
– The plates are firmly in place;
– The top of media is well leveled
– The float shaft and the pump are firmly in place (models equipped with a pump);
– The tipping bucket operates correctly on either side.
