RECOMMENDABLE

Relative ambient humidity ≥ 60%.
 Installation in a public facility.
 Potentially accessible to children or people with
mental, physical or sensory disabilities.
T with outlet. OBLIGATORY

ALL.
Clamp union. OBLIGATORY

Install the exhaust spiral and gas outlet pipes,
thereby preventing anyone from disassembling
or moving the stove or pipe without tools.
Pipe anchors. OBLIGATORY

Install the pipe, thereby preventing anyone from
disassembling or moving the stove or pipe
without tools.
Aluminium belt and silicone of
high temperature (300°C).
RECOMMENDABLE
 If the pipe is not equipped with sealing rings
“DIFLUX” piping OBLIGATORY

AIRTIGHT INSTALLATION "DIFLUX" mounting.
Silicone tube Ø 60mm. OBLIGATORY

AIRTIGHT INSTALLATION "DIFLUX" mounting and
direct connection to the outside. Air intake pipe
connection.
Adapter
Ø 30
-
60mm
(
Code
:
SP0039AA).
OBLIGATORY
 Mónaco. AIRTIGHT INSTALLATION.
LOCATION AND SAFETY DISTANCES.
4.10. Do not install the stove in a sleeping room.
4.11. Install a fire protection between the ground and the stove if the floor is a combustible material.
4.12. Security distances should be respected when the stove is installed in spaces where materials around it, be it
the construction material itself, the fuel or any other type of materials, are likely to be flammable. Ensuring a
better access to the stove for future maintenance or repair work is also worth considering.

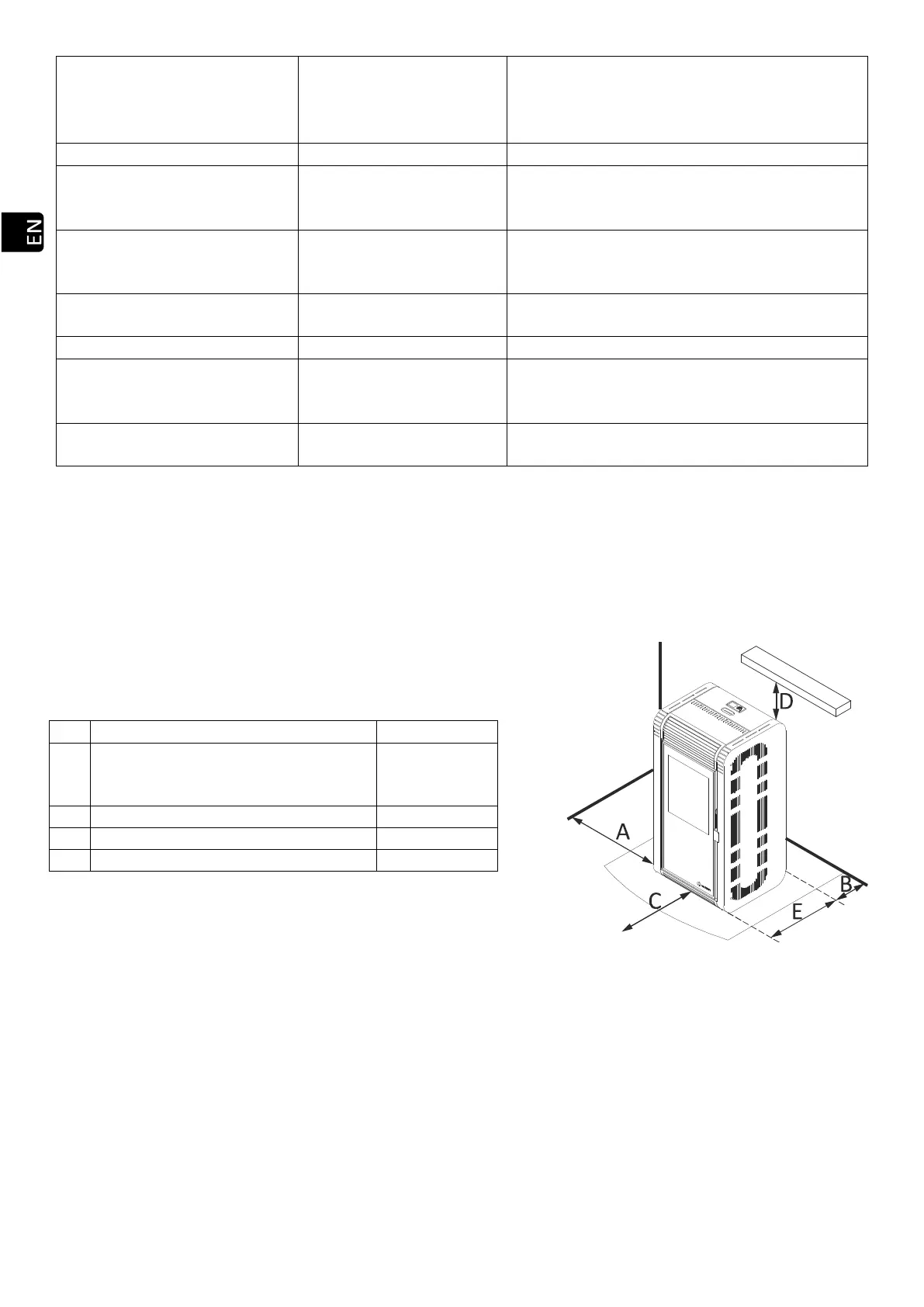

Drawing 5
4.13. Anchoring of the Monaco stove to the wall. It has 4 fixing points, 2 on each side. Remove the side covers to
access them.
A Lateral wall. ≥ E
B
Back of the
stove
. Minimum separation
that allows visualizing the label
marking the stove.
≥ 80 mm
C
1.5 x de
pth of stove.
See dimensions
D
Shelf
.
≥
500 mm
E
Depth of stove.
See dimensions
