2. Heat pump installation
2.1. Transport and handling
The heat pump must be transported vertically and not exposed to adverse weather conditions. It can be lain carefully on its rear side
to facilitate transportation to the installation site.
NOTE
 Do not tilt the heat pump more than 45º, since this could impair proper equipment operation.
 Due to its heavy weight, the heat pump should be handled by two workers using a forklift for heavy
loads.
2.2. Dimensions and connections
The overall dimensions and hydraulic connections of the ecoGEO Compact and ecoGEO Basic heat pumps are described below.

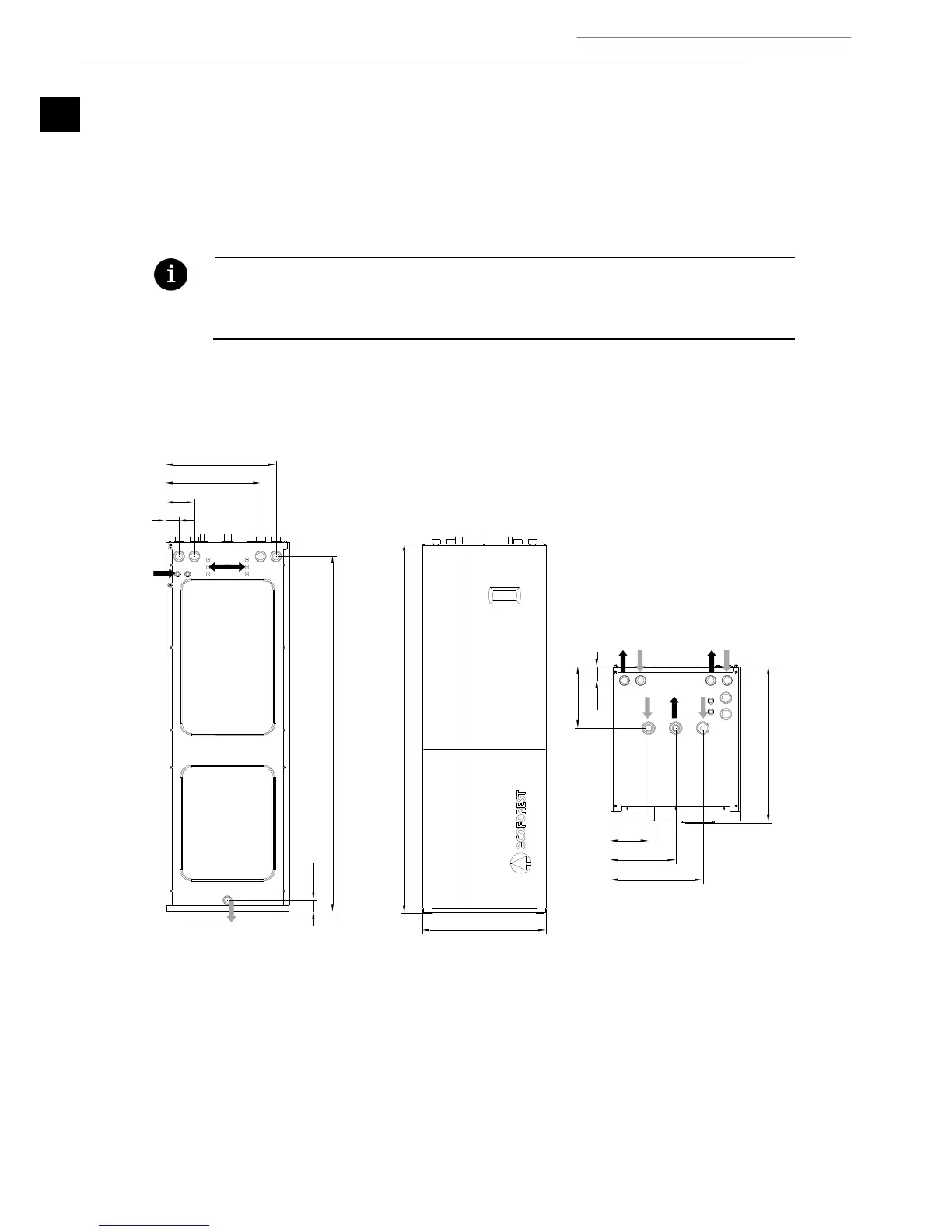

Figure 1.1. Overall dimensions and hydraulic connections of the ecoGEO Compact model (Amounts in mm).
56
1736
64
139
462
537
282
720
63
175
300
425
1
2
8
7
3
4
9
10
11
12
1812
600
