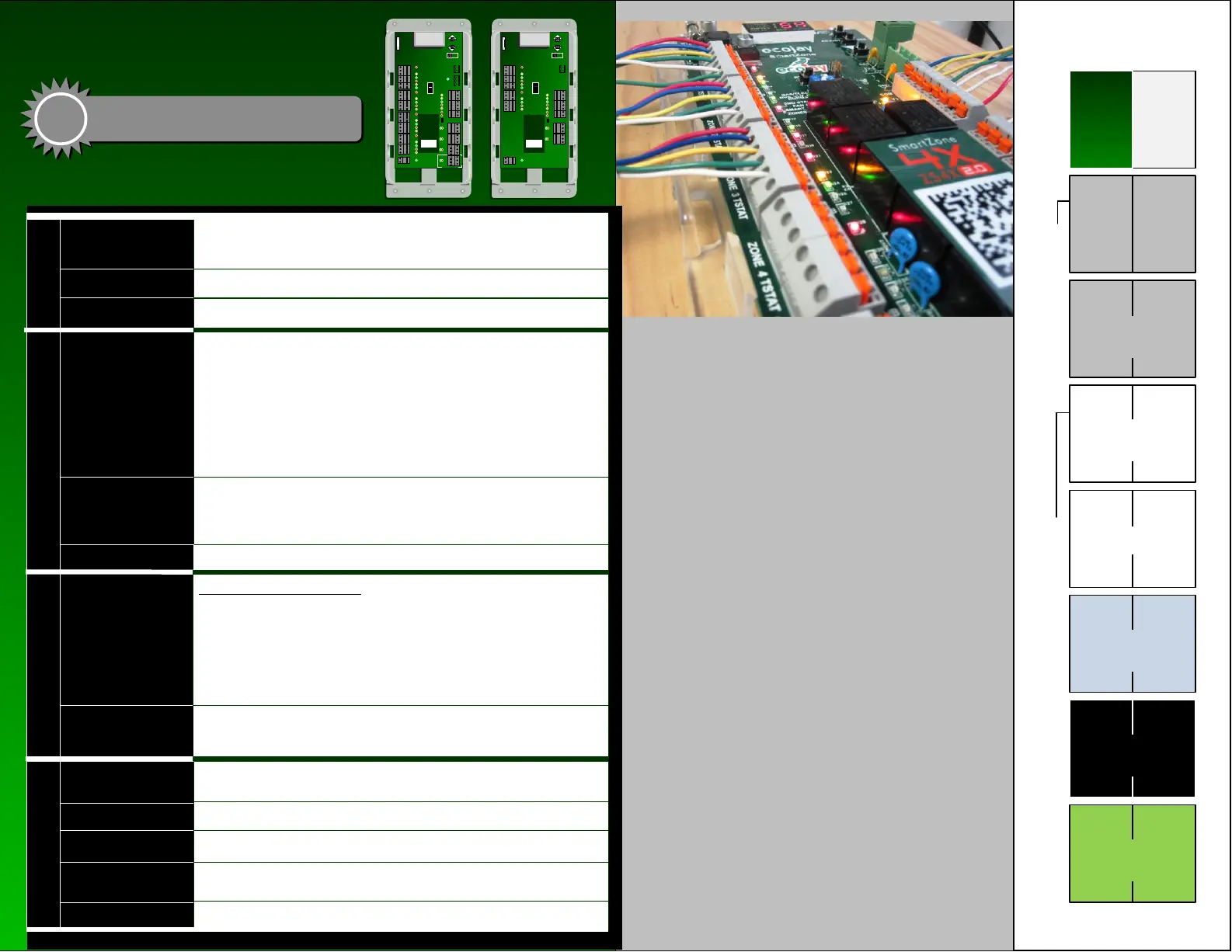

COMM – 3 WIRE COMMUNICATIONS TO SMARTLINK (BLUE) [USE CAT3/5/6 CABLE ONLY]
10K TYPE III THERMISTOR (INCLUDED)
SA SENSOR – 4" SUPPLY AIR TEMPERATURE SENSOR STAINLESS STEEL PROBE
POWER
-- - OUTPUTSINPUTS
EQUIPMENT
DAMPERS
PROTECTION
SYSTEM
SMARTZONE-2X
SMARTZONE-4X
THERMOSTAT
TEMPERATURE
14VA MAX (375 MA @ 24VAC) [2X = 12VA, 8X = 28VA]
IF MULTIPLE TRANSFORMERS ARE USED IN 8X SYSTEM, THE PRIMARY AND SECONDARY
POLARITIES MUST BE THE SAME FOR BOTH TRANSFORMERS AND ON BOTH ZS4X BOARDS.
14VA + STATS (2VA EA.) + DAMPERS (3- 10 VA EA.)= TOTAL TRANSFORMER SIZE
INTEGRATED 5X20MM 250MA FUSE- ONE REPLACEMENT ALSO INCLUDED.
(FIELD SUPPLIED TRANSFORMER SHOULD ALSO BE FUSED)
10 AMP @ 24VAC CONTACT RATING
RH – 24VAC
HOT
FROM HEATING TRANSFORMER ON EQUIPMENT (RED)
RC – 24VAC
HOT
FROM COOLING TRANSFORMER ON EQUIPMENT (RED)
C – 24VAC COMMON FROM TRANSFORMER ON EQUIPMENT (NONE)
Y1 – 1
ST
STAGE COMPRESSOR (YELLOW)
Y2 – 2
ND
STAGE COMPRESSOR (YELLOW)
G – FAN (GREEN)
W1/EH – 1
ST
STAGE HEAT OR EMERGENCY HEAT (RED)
W2/OB – 2
ND
STAGE HEAT OR REVERSING VALVE (ORANGE)
10 AMP @ 24VAC CONTACT RATING (40VA)
POWER-CLOSE / SPRING-OPEN DAMPERS (10VA)
POWER-OPEN / SPRING-CLOSE DAMPERS (10VA)
POWER-OPEN / POWER-CLOSE DAMPERS (3VA)
LABEL – DESCRIPTION (LED COLOR)
R – 24VAC
HOT
(RED)
C – COMMON (NONE)
Y – COMPRESSOR (YELLOW)
G – FAN (GREEN)
W – HEAT OR EMERGENCY HEAT (RED)
O/B – REVERSING VALVE (ORANGE)
EC – ECONOMY INPUT (GREEN) - ZONE ONE ONLY
SMARTLINK
SPECIFICATIONS
SETTINGS
ECONOMIZER LIMIT
AUX HEAT LIMIT
HI LIMIT
LO LIMIT
HEAT CUT-OUT [DEFAULT = 135 GAS / 120 HEAT PUMP] RANGE:
COOL CUT-OUT [DEFAULT = 48] RANGE:
AUX HEAT CUT-OUT [DEFAULT = 90 HEAT PUMP ONLY] RANGE: 90 - 94
ECONOMIZER CUT-OUT [DEFAULT = 60] RANGE: 58 - 68
FRESH AIR TIME
THERMOSTAT TYPE
GE = GAS/ELECTRIC, HP = HEAT PUMP,
G2 = 2 STAGE GE, H2 = 2 STAGE HP, FA = FRESH AIR
# OF MINUTES PER HOUR FRESH AIR RUN TIME [DEFAULT = 0] RANGE: 0 - 60
1 2
3 4
5 6
7 8
9 10
11 12
13 14
FRONT
BACK:
TROUBLE-
SHOOT
WIRING
CONTENTS,
CHECKLIST
SMARTZONE GUIDE
AIRFLOW,DUCT
DESIGN& BYPASS
MOUNTING, SUPPLY
SENSOR, DIP SWITCHES
STAT TYPE, LIMIT
ADJUST, DISPLAY
OPERATIONS &
STAGING
20 ZONES
& FRESH AIR
DESIGN & DAMPERSINSTALLSETUPOPERATIONADVANCED
CONTENTS
ecojay
SMARTZONE
2X
ZS2X
2.0
8E
HI TEMP
LO TEMP
SUPPLY
PURG
E
DELAY ECO
2 ZONE
ZS2X-2.0
MADE
IN THE
USA
5
YEAR LIMITED
WARRANTY
888-523-3265
ecojay.com
MADE
IN THE
USA
5
YEAR LIMITED
WARRANTY
888-523-3265
ecojay.com
1
ecojay
SMARTZONE
4X
ZS4X
2.0
8E
HI TEMP
LO TEMP
SUPPLY
PURG
E
DELAY ECO
4 ZONE
ZS4X-2.0
VERSION 8E FIRMWARE
HVAC EQUIPMENT
ZONING CHECKLIST
q DESIGN ALL ZONES TO BALANCE THE CFM EVENLY (EACH ZONE SHOULD BE
SIMILAR IN SIZE).
q AVOID CREATING SMALL ZONES (< 20% OF TOTAL CAPACITY).
q USE PROPER EXCESS (SURPLUS) AIR-FLOW MANAGEMENT INCLUDING
THESE TECHNIQUES –BYPASS DUCT/DAMPER, DUMP ZONE(S) OR ADJUST
DAMPERS MAX CLOSE SETTINGS TO ALLOW LEAKAGE
q ECOJAY RECOMMENDS THE USE OF A BYPASS DUCT/DAMPER THAT IS
LARGE ENOUGH TO ACCOMMODATE THE TOTAL SYSTEM CFM CAPACITY
MINUS THE CFM CAPACITY OF THE SMALLEST ZONE
q REFER TO DUCT DESIGN & BYPASS
q CALCULATE MINIMUM 24VAC TRANSFORMER VA CAPACITY
q CHECK PRIMARY AND SECONDARY VOLTAGE FOR ZONING TRANSFORMER.
MAKE SURE SEPARATE TRANSFORMER AND CIRCUIT IS USE FROM
EQUIPMENT TRANSFORMER
q SELECT MOUNTING LOCATION THAT PROVIDES SPACE AND EASY PATH TO
RUN WIRES
q MOUNT THERMOSTATS WHERE NOT EXPOSED DIRECTLY TO AIR STREAM
FROM SUPPLY AIR GRILLS, RADIANT HEAT FROM WINDOWS OR
SKYLIGHTS, OR TOO CLOSE TO RETURN AIR
q USE THERMOSTATS THAT ARE NOT POWER STEALING OR TRIAC BASED
q GAS/ELECTRIC OR HEAT PUMP STATS CAN BE USED ON HEAT PUMP
EQUIPMENT (HEAT PUMP STAT IS REQUIRED ON ZONE 1 ONLY IF
EMERGENCY HEAT CONTROL IS NEEDED).
NOTE: USE ONLY GAS/ELECTRIC
STATS WITH GAS/ELECTRIC EQUIPMENT.
DUCT & DAMPERS
SMARTZONE & THERMOSTATS
q PERFORM BASIC EQUIPMENT CHECK INCLUDING COMPRESSOR,
REFRIGERANT CHARGE, BLOWER, FURNACE, FILTER BEFORE INSTALLING
OR STARTING UP SMARTZONE SYSTEM.
SPECS
