7
Control Board
WC Models
Safety
The WC series are very safe when assembled and
used properly. In order to provide a high quality
system, we have chosen to only use top quality
materials that can withstand high usage and
operate in a severe environment. All WC models
go through several meticulous testing procedures
to monitor operations and quality.
Maintenance / Cleaning
Under normal usage, the WC models only need to
be emptied a few times per year. The remaining
ashes is sterile and it can easily be vacuumed out
by a ShopVac. To access the burn chamber, the
WC units are equipped with a rear access door
that may be opened from the outside of the unit.
In addition to emptying the ashes, the water and
fuel levels must also be monitored and maintained.
Models Power Fuel Burning Capacity
WC5-P12 12V DC Propane 1 gal/hour
WC5-P120 120V AC Propane 1 gal/hour
WC12-P120 120V AC Propane 2.5 gal/hour
WC12-N120 120V AC Natural gas 2.5 gal/hour
WC12-D120 120V AC Diesel 2.5 gal/hour
WC32-P120 120V AC Propane 4 gal/hour
WC32-N120 120V AC Natural gas 4 gal/hour
WC32-D120 120V AC Diesel 4 gal/hour
WC48-P120 120V AC Propane 8 gal/hour
WC48-N120 120V AC Natural gas 8 gal/hour
All WC models have a control board that
indicates the fluid level in the tanks and
the status of the unit. This can be set to an
automatic or manual mode. It also displays
the current temperature, hours left before
service needed, or if there are any error
messages.

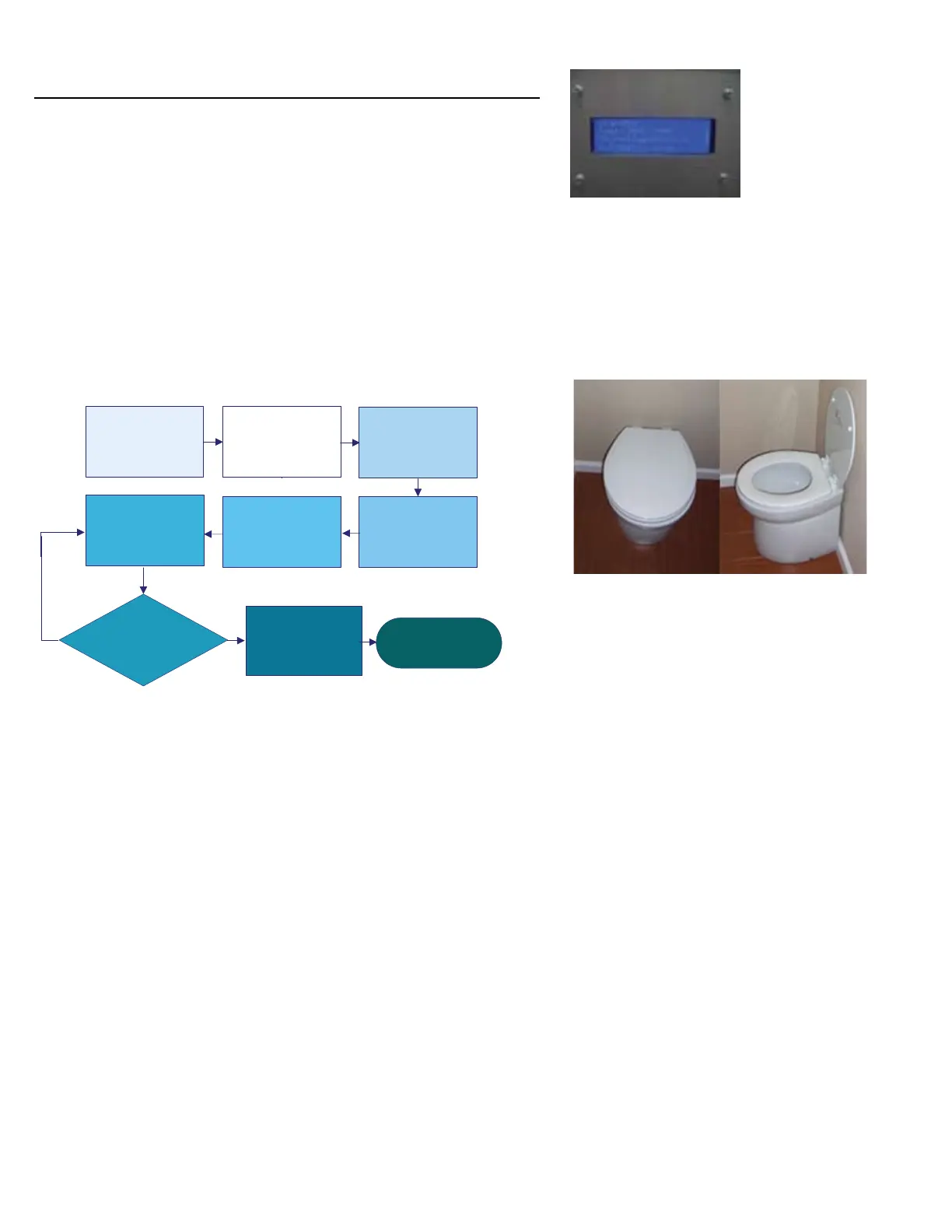

FLUSH TOILET
TOILET MACERATOR
OPERATES
WATER TANK
SUPPLIES TOILET
WITH FLUSH WATER
MACERATED WASTE
IS TRANSFERRED
TO WASTE TANK
WHEN WASTE
LEVEL RISES IT
ACTIVATES THE
WASTE LEVEL
SENSOR
WC RECEIVES
SIGNAL FROM LOW
LEVEL SWITCH AND
INCINERATION
CYCLE INITIATES
MORE WASTE IN THE
WASTE TANK
NO
YES
FINAL COOLING
CYCLE
COMMENCES
WC PUTS ITSELF IN A
STANDBY MODE
Operation
Cost of Usage
The cost of running this system is
considerably low. Electricity usage is
minimal since it only uses electricity to
start the incineration process, run the
water, macerator and waste pumps
for a very short time. The cost of the
fuel is also low due to the efficiency
of the burn units.
Applications
Cabins / Guest and Pool houses
Military
Disaster situations
Construction
Work sites
Trains / Barges / RVs
Remote Camp sites
Mobile offices
Barns
The low-flush toilets only use 0.3-0.5
gallons per flush. A built-in macerator
pump dissolves the waste before
pumping it into the waste holding tank.
