6 of 10

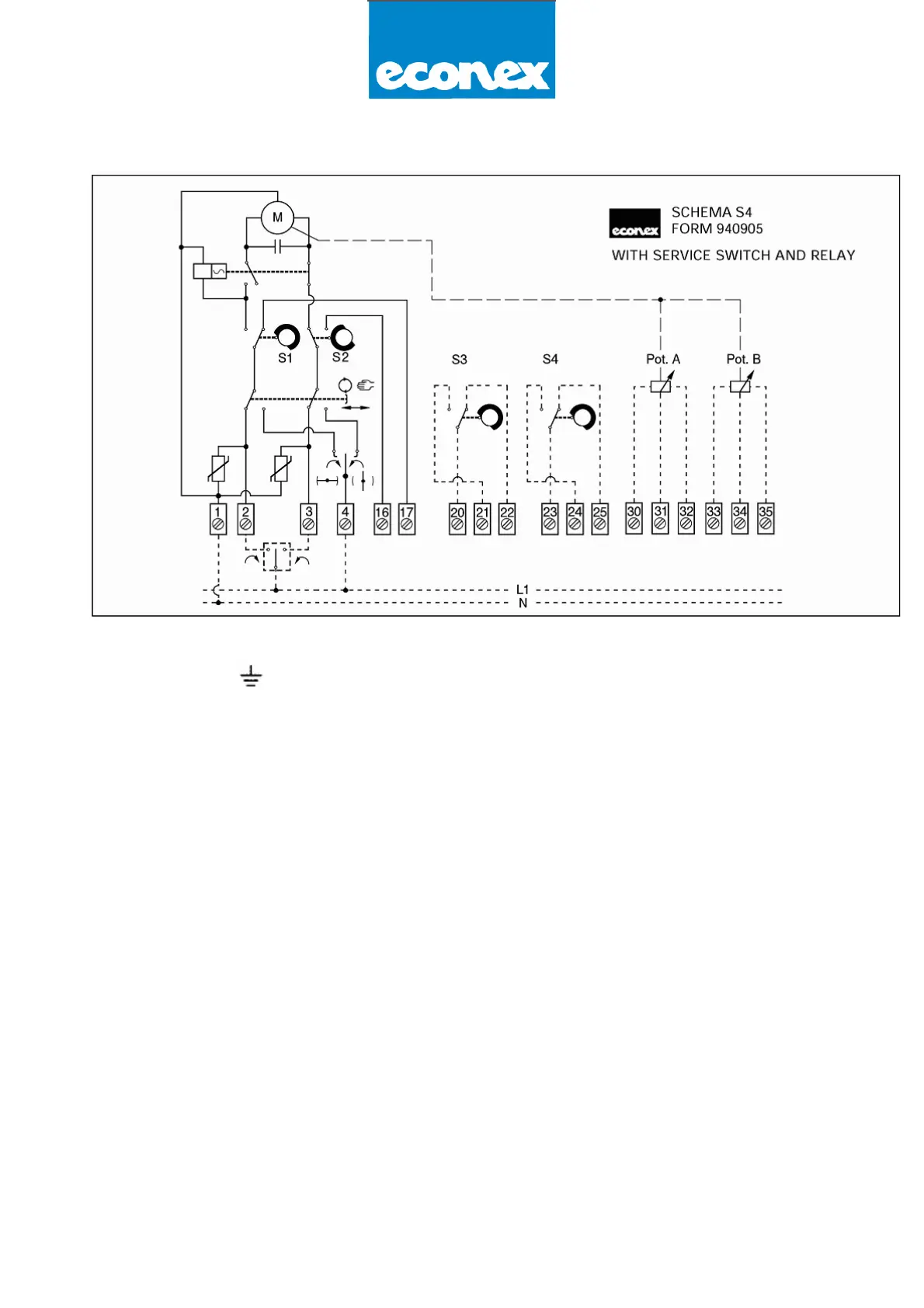

5.2 With manual/automatic control station
TERMINAL BOARD
Terminal
earthing
Terminal 1 N = neutral
Terminal 2 by tension the gear motor shaft rotates clockwise 3 [closes]
Terminal 3 by tension the gear motor shaft rotates counter clockwise 4
[opens]
Terminal 4 for manual electric control
Terminal 16 answer signal when the gear motor reaches the position “open”
Terminal 17 answer signal when the gear motor reaches the position “closed”
5.3 Auxiliary microswitches
TERMINAL BOARD
Terminal 20 common contact of the auxiliary microswitch S3
Terminal 21 normally open contact of the auxiliary microswitch S3
Terminal 22 normally closed contact of the auxiliary microswitch S3
Terminal 23 common contact of the auxiliary microswitch S4
Terminal 24 normally open contact of the auxiliary microswitch S4
Terminal 25 normally closed contact of the auxiliary microswitch S4
5.4 Potentiometer/s for answer signal of Pot. A
and
/
or
B position
T
ERMINAL BOARD
Terminal 30 max. value
Terminal 31 slider
Terminal 32 min. value
Terminal 33 max. value
Terminal 34 slider
Terminal 35 min. value
