Econex AB1 Series - Cable Connections; Wiring Without Control Station

5 of 10

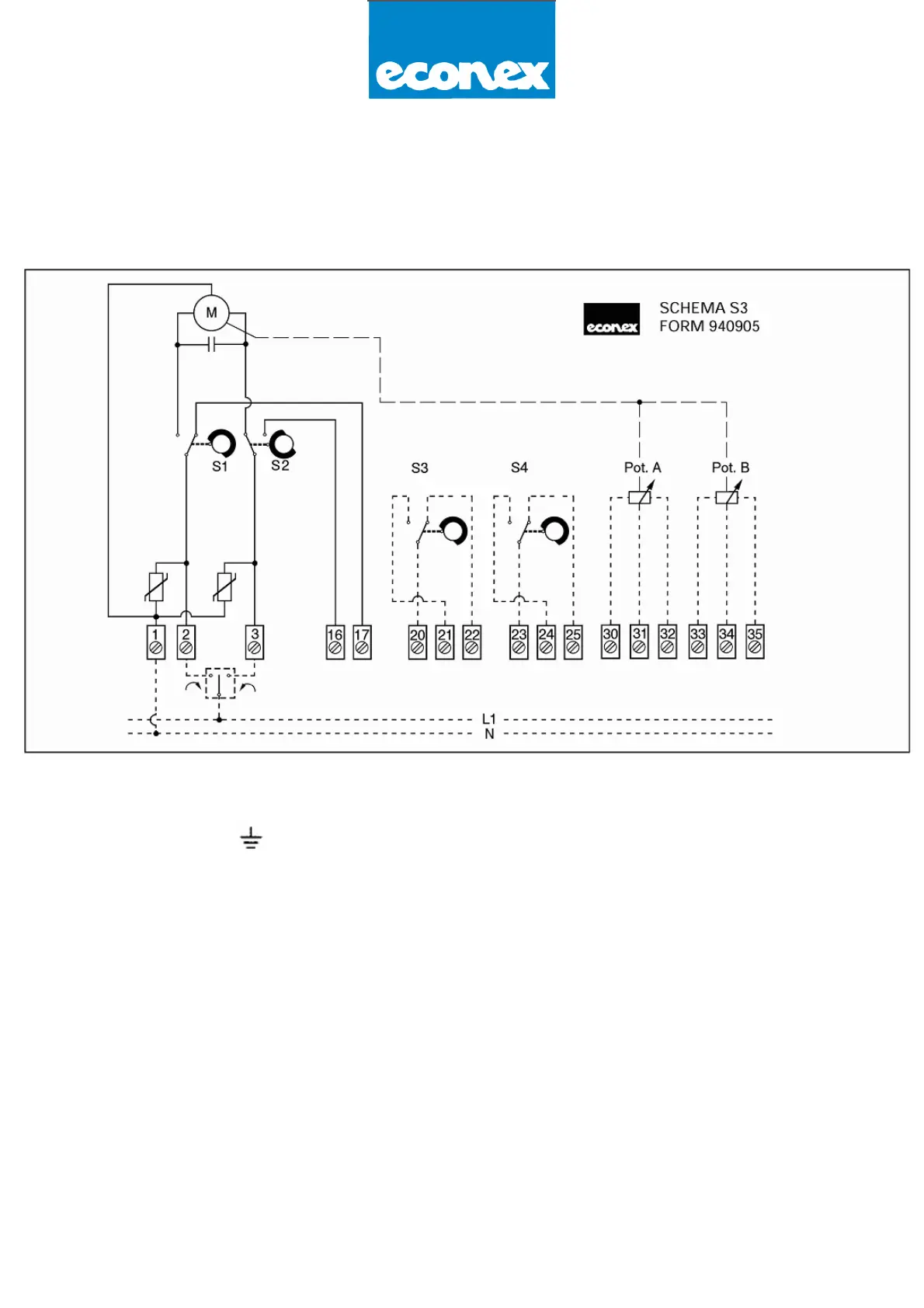

5. CABLE CONNECTIONS
The wiring schemes refer to the gear motor in position “closed” [0°].
5.1 Without manual/automatic control station.
TERMINAL BOARD
Terminal
earthing
Terminal 1 N = neutral
Terminal 2 by tension the gear motor shaft rotates clockwise 3 [closes]
Terminal 3 by tension the gear motor shaft rotates counter clockwise 4
[opens]
Terminal 16 answer signal when the gear motor reaches the position “open”
Terminal 17 answer signal when the gear motor reaches the position “closed”
