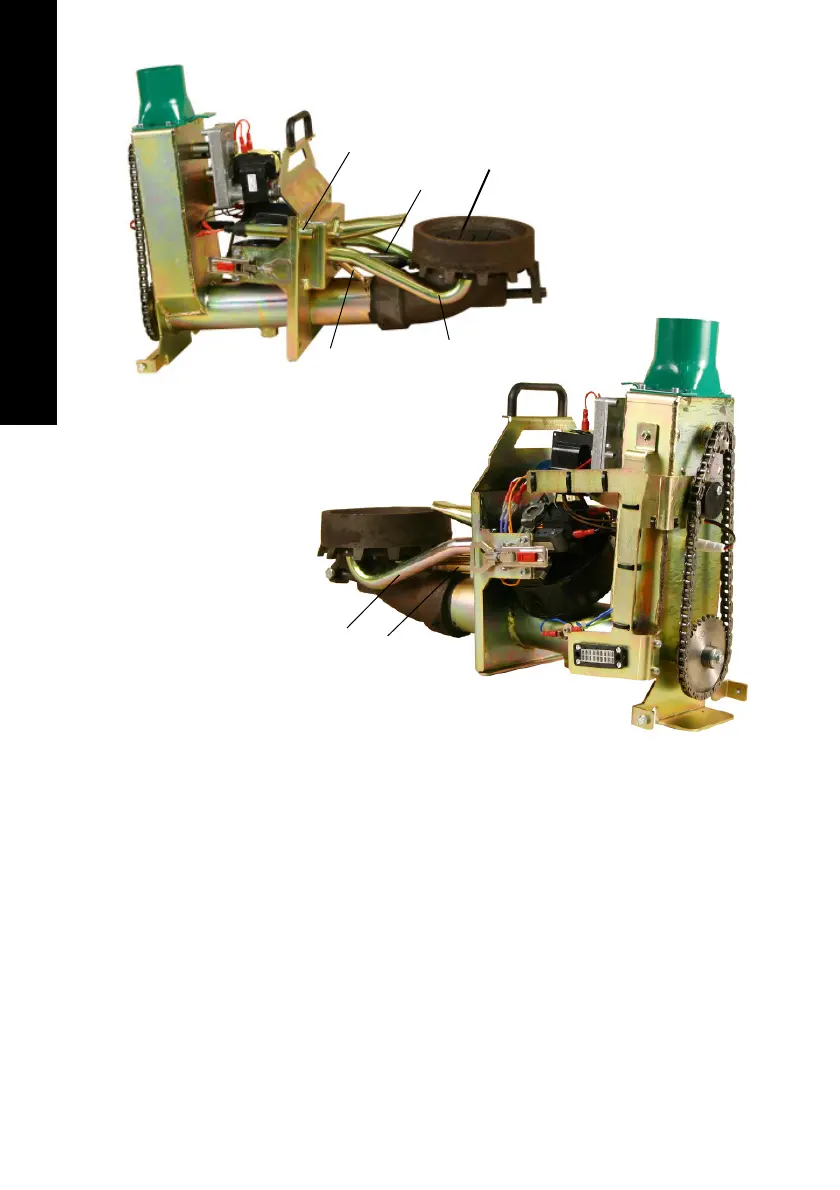

Ecotec BioLine 20 - Overview of the Burner

4
1 Combustion bowl
2 Rotating arm
3 Cog wheel
4 Primary ring
5 Stop screws for the
combustion bowl
6 Primary vent pipe
7 Secondary vent pipe
8 Hot-air ignition
9 Optical sensor
10 Combustion fan
11 Sluice feeder
12 Internal fuel store
13 Drive motor
14 Level sensor (receiver), black
15 Level sensor (transmitter), white
16 Connector
17 Feed auger
18 Thermal contact
19 Microswitch
20 Quick release fastener
21 Swinging arm mount
22 Tube for counterpressure
1
2
3
3
5
5
6
6
7
8
8
9
10
11
11
12
13
13
14
15
16
17
18
19
20
21
4
OVERVIEW OF THE BURNER
22
