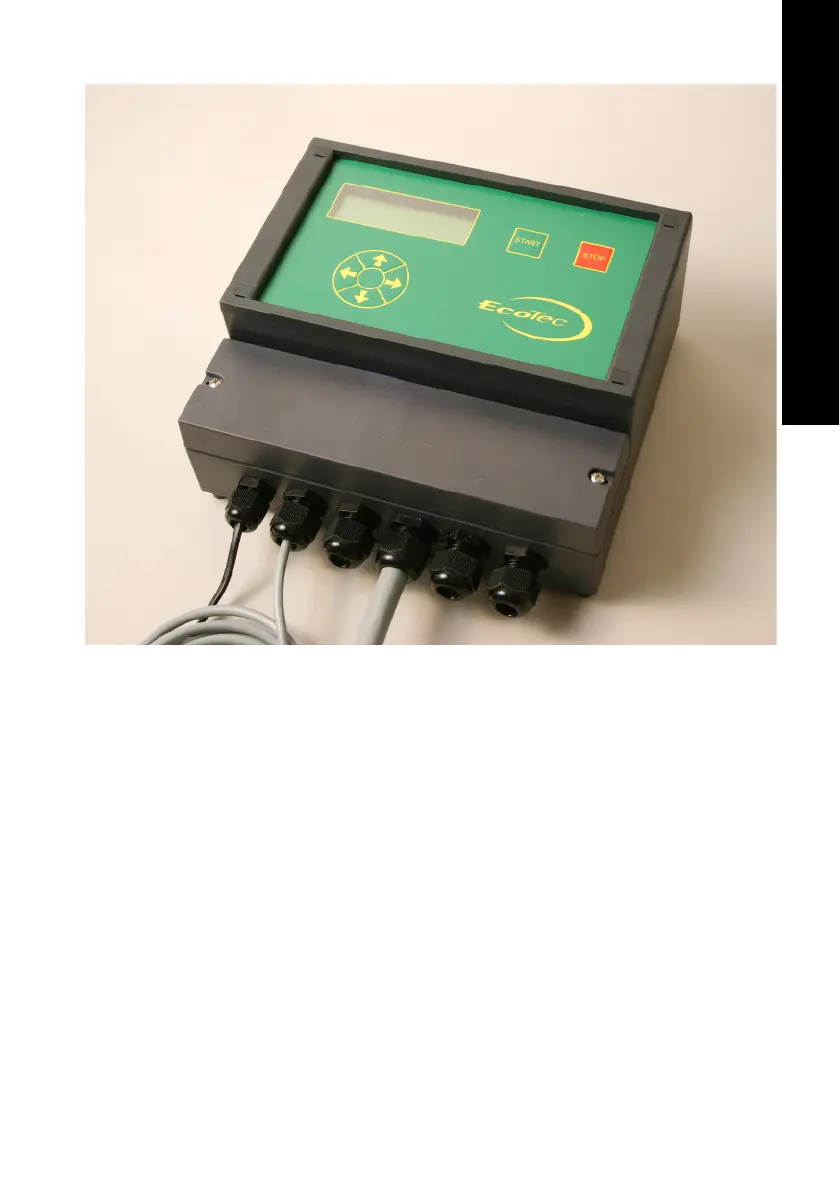

Ecotec BioLine 20 - Overview of the Control Panel

5
1 Start button
2 Stop button
3 Display
4 Control buttons for operating
the display
5 Operating thermostat cable input
6 Maximum thermostat cable input
7 Unused input
8 Input/output for multicore cable
to the burner
9 Power input 230/240 VAC
10 External feed output
11 Cover for Terminal block
1
2
3
4
OVERVIEW OF THE CONTROL SYSTEM
11
10
9
6
7
8
5
3006 control box
