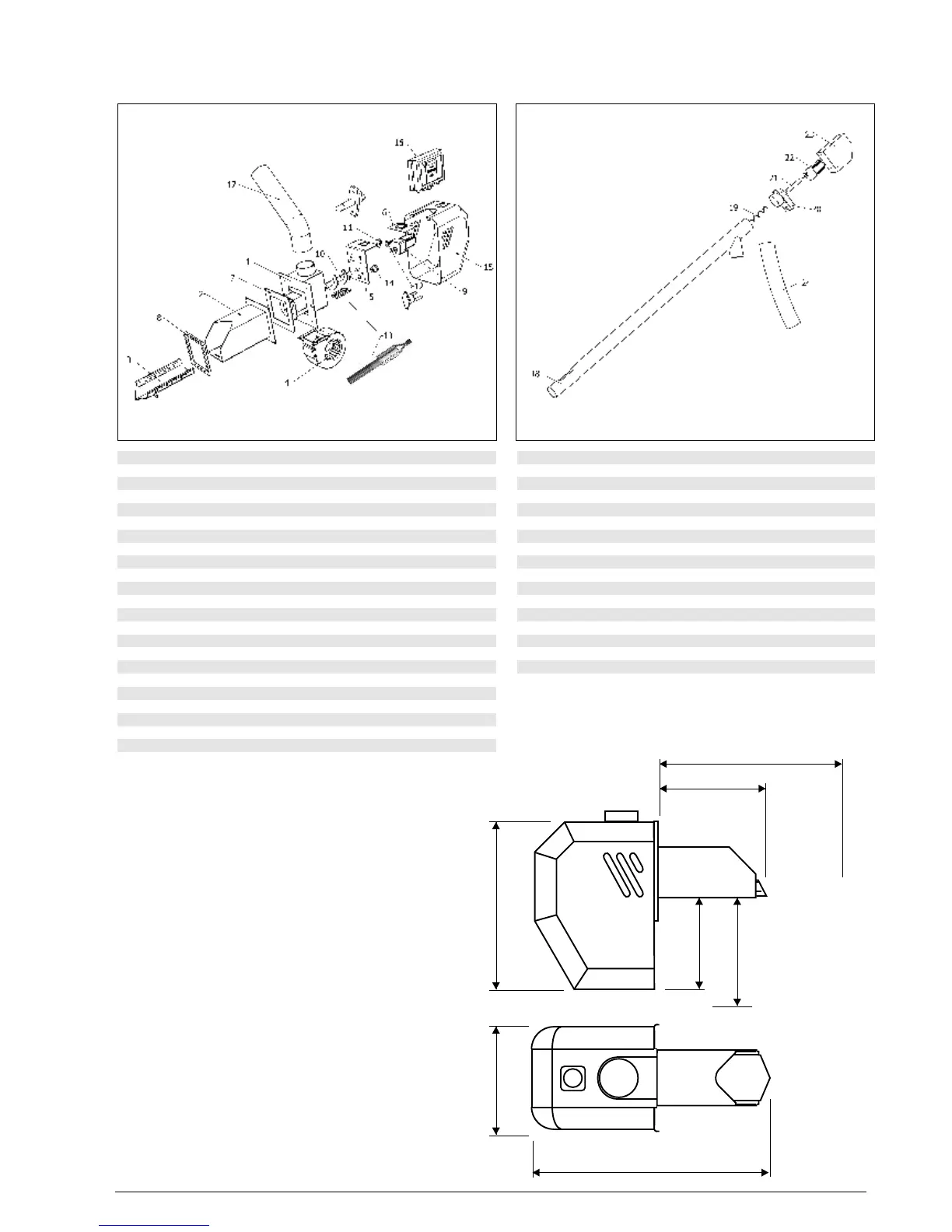

ECOVARM Ecofire E1 16kW - Important Parts; Wichtige Teile

•1.3 Important parts/ Wichtige Teile
2. Installation
GB: The burner requires a boiler with a burner
chamber of at least 450 mm in depth
D: Der Brenner braucht ein Kessel der mindestens
einen Tiefe von Brennkammer auf 450 mm haben.
5
Name
Burner house
Burning chamber body 16, 24 kW
Burning chamber body 32, 40 kW
Burner inset 16, 24 kW
Burner inset 32, 40 kW
Fan
Burner back plate
Electrical connection plate
Thermo gasket 16, 24 kW
Thermo gasket 32, 40 kW
Fiber gasket 16, 24 kW
Fiber gasket 32, 40 kW
Burner auger gear motor
Burner auger
Light sensor
Bi-metal sensor
Ceramic ignition element
Rubber cap
Burner jacket
Controller
Vertical feeder - pipe
Index
24010
24020
40020
24030
40030
24040
24050
24060
24070
40070
24080
40080
24090
24100
24110
24120
24135
24140
24150
24160
24170
Pos.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Name
Auger PVC pipe 1,3m
Auger PVC pipe 1,6m
Auger PVC pipe 2,0m
Auger PVC pipe 2,5m
Auger PVC pipe 3,0m
Main spiral auger 1,3m
Main spiral auger 1,6m
Main spiral auger 2,0m
Main spiral auger 2,5m
Main spiral auger 3,0m
Anker plate
Anker
Feeder gear motor 10W
Feeder gear motor 30W (3,0m)
Feeder motor jacket
Flexible pipe
Index
24813
24816
24820
24825
24830
24913
24916
24920
24925
24930
24200
24210
24220
24250
24230
24240
Pos
18
19
20
21
22
23
24
e
c
o
fi
r
e
540
270
360
210
210
200
450
