SPLIT-TYPE ROOM AIR CONDITIONER
EDCM

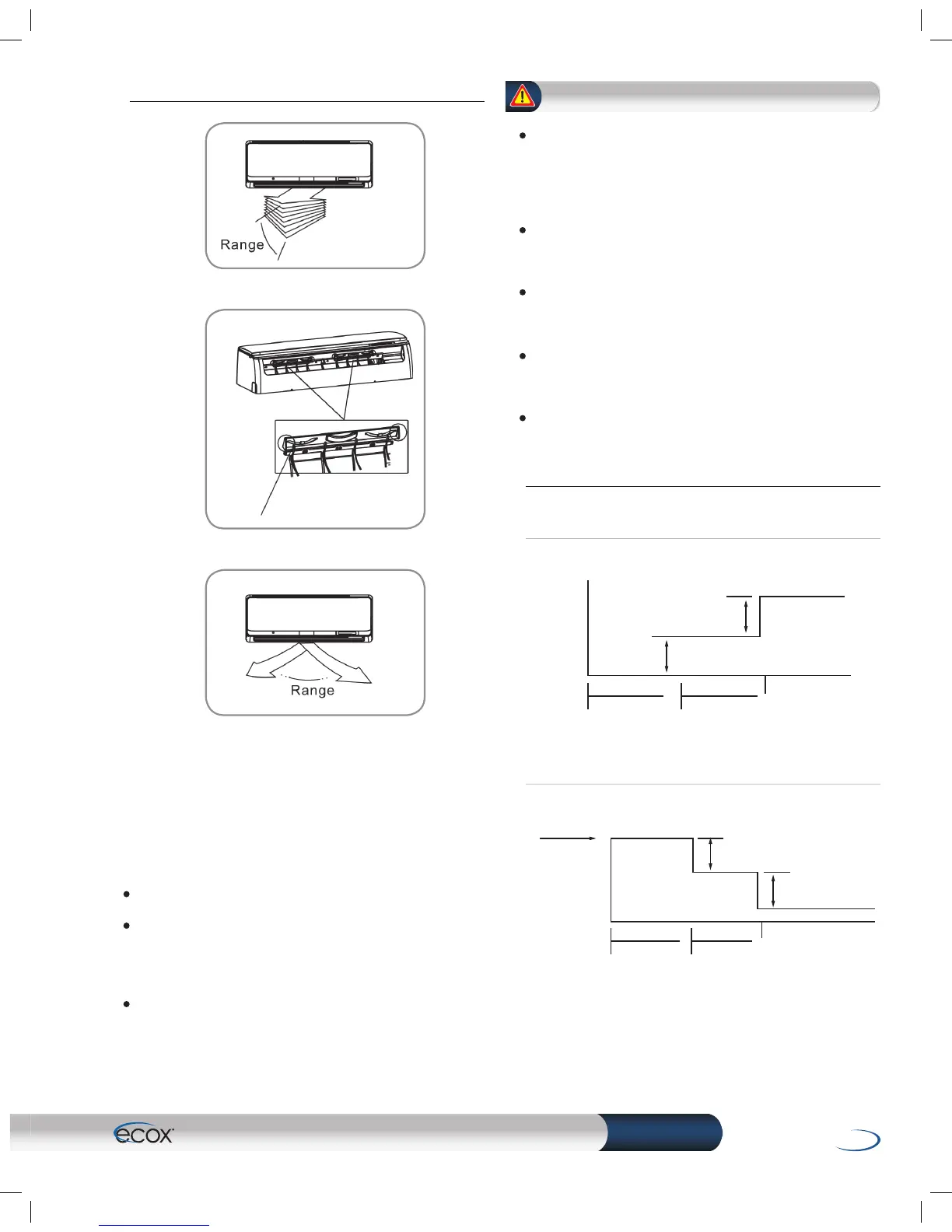

AIRFLOW DIRECTION CONTROL
HOW THE AIR CONDITIONER WORKS
CAUTIONS
Adjust the air ow direction properly otherwise it might cause
discomfort or cause uneven room temperatures.
Adjust the horizontal/vertical louver using the remote
controller. For some models, the vertical louver can only be
adjusted manually.
To set the horizontal/vertical air ow direction
Perform this function while the unit is in operation.
Use the remote controller to adjust the air ow direction. The
vertical/horizontal louver changes 6 degree in angle for each
press, or swing up and down automatically. Please refer to the
REMOTE CONTROLLER OPERATION MANUAL for details.
For some models, the vertical louver can only be adjusted
manually. Move the deector rod manually to adjust the air ow
in the direction you prefer.
IMPORTANT: Do not put your ngers into the panel of blower
and suction side.The high-speed fan inside may cause danger.
Deector rod
Do not operate the air conditioner for long periods with the
air ow direction set downward in cooling or dehumidifying
mode. Otherwise, condensation may occur on the surface of the
horizontal louver causing moisture to drop on to the oor or on
furnishings.
When the air conditioner is started immediately after it was
stopped, the horizontal louver might not move for approximately
10 seconds.
Open angle of the horizontal louver should not be set too small,
as COOLING or HEATING performance may be impaired due to too
restricted air ow area.
Do not move the horizontal louver manually, otherwise the
horizontal louver will be out of sync. Please cease operating,
unplug power for a few seconds,then restart the air conditioner.
Do not operate unit with horizontal louver in closed position.
SLEEP operation
Cooling
Heating
SLEEP operation
Set Temperature
Set Temperature
7 hours timer o
7 hours timer o
1 hour
1 hour
1º C/2º F
1º C/2º F
1º C/2º F
1º C/2º F
1 hour
1 hour
AUTO operation
When you set the air conditioner in AUTO mode, it will
automatically select cooling, heating(cooling/heating models
only), or fan only operation depending on set temperature and
the room temperature.
