Installing the Motherboard
Checking Jumper Settings

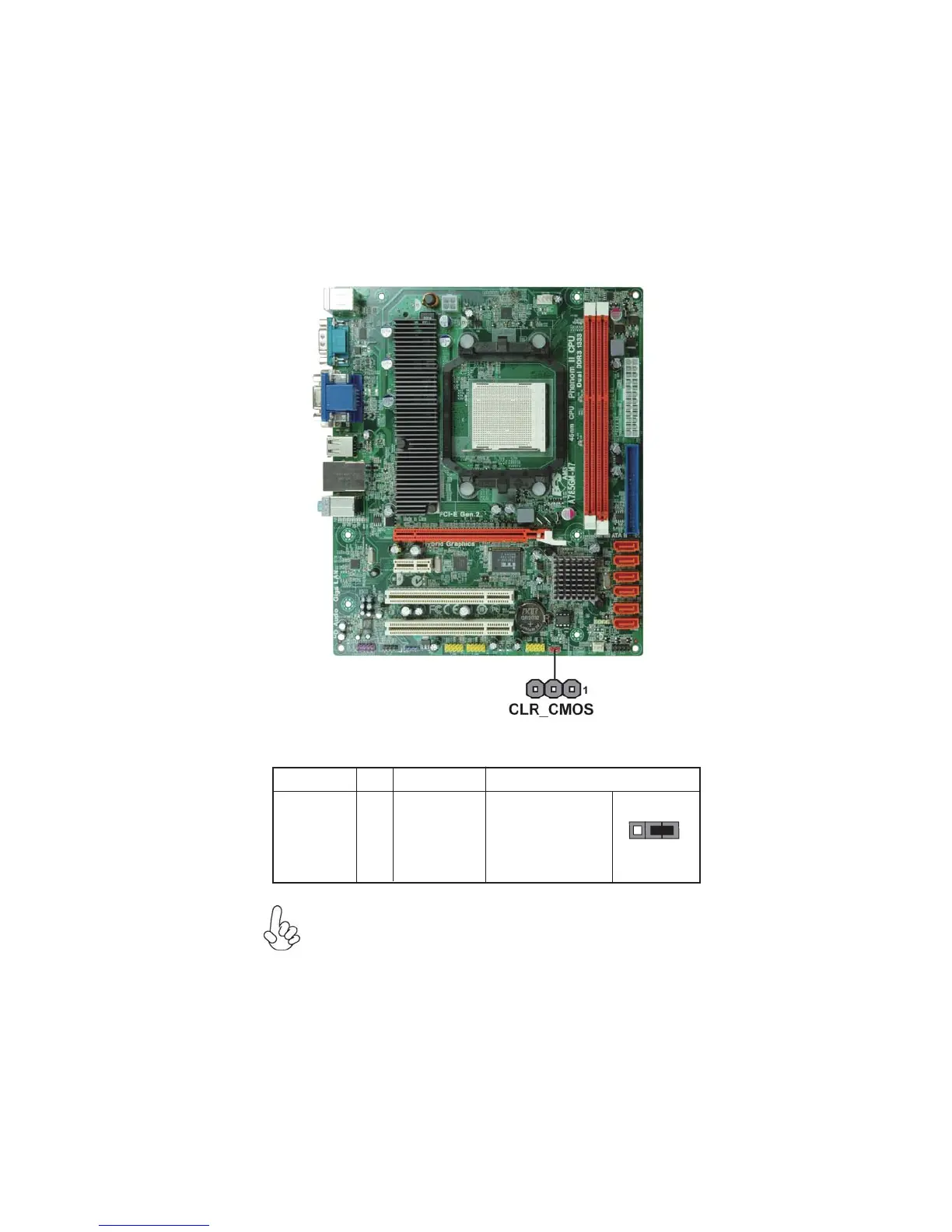

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
Jumper Settings
To avoid the system instability after clearing CMOS, we recommend users to
enter the main BIOS setting page to “Load Default Settings” and then
“Save & Exit Setup”.
Jumper Type Description Setting (default)
CLR_CMOS
3-pin
CLEAR CMOS
1-2: NORMAL
2-3: CLEAR
Before clearing the
CMOS, make sure to
turn the system off.
CLR_CMOS
1
