CAUTION: Nitrogen generator cabinet includes ventilation vents in the bottom and side. Ensure that all
ventilation vents are not blocked to allow proper ventilation throughout the nitrogen
generator cabinet.
The cabinet includes a wall mounting bracket with pre-punched holes using standard anchors.

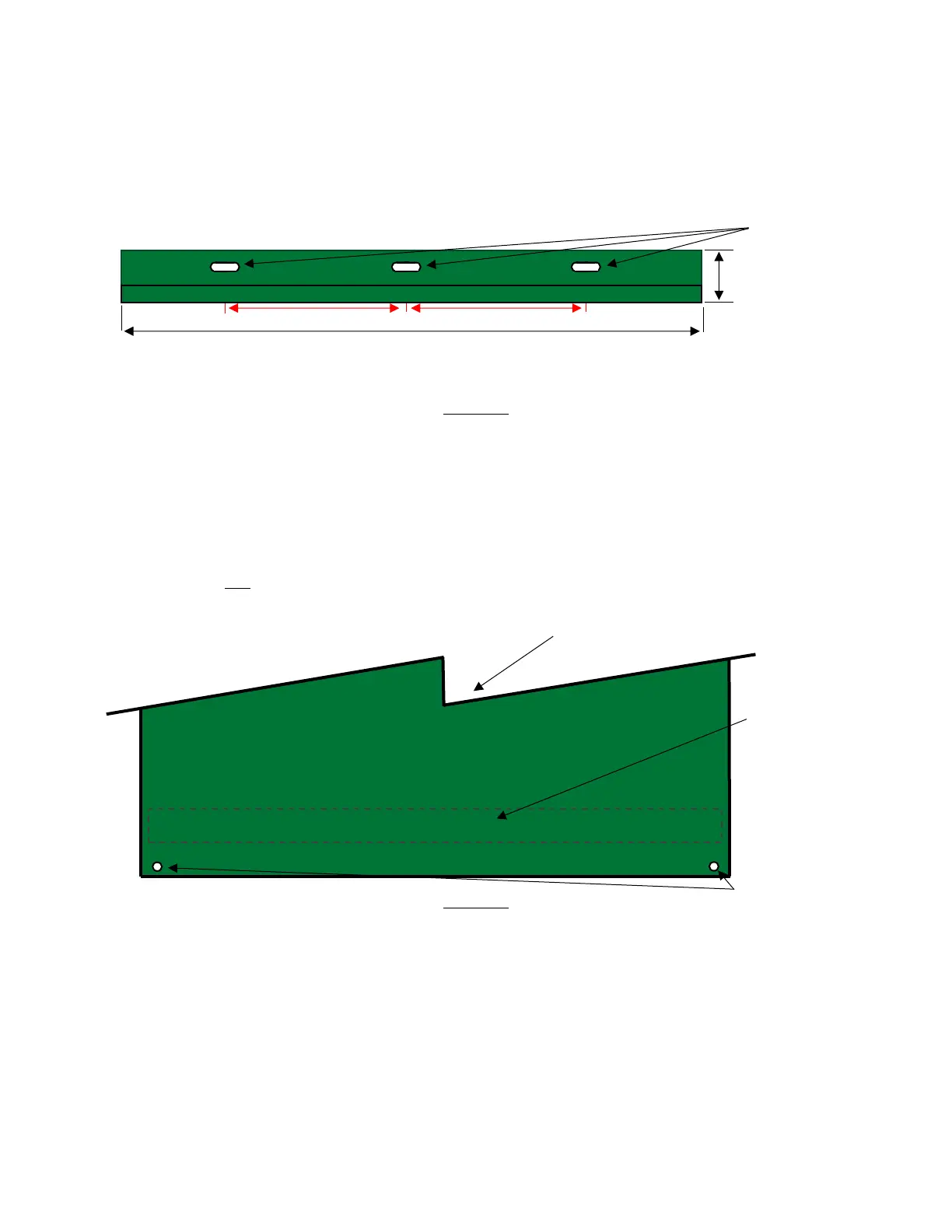

Figure 1a
NOTE: Ensure the wall is structurally sound and the cabinet is firmly anchored to a wall to support the
generator cabinet. When mounted on stud wall the support system should be secured directly to
and supported by a minimum of two (2) studs.
The cabinet includes anchoring holes in the lower left and lower right corners of the cabinet using
standard anchors (See Figure 1b).
NOTE: ECS recommends that the nitrogen generator be anchored to the wall using the wall mounting
bracket and the anchoring holes in the nitrogen generator cabinet.
Figure 1b
Step 2: Power Supply
The Nitrogen Generator requires a dedicated power supply to prevent interaction with other equipment.
The incoming power supply line is connected to the terminal block inside the nitrogen generator cabinet.
The terminal connections are labeled L1, N, and G.
Required nitrogen generator power supply:
• AG-675/950 - 120VAC/1 phase/60Hz (200-240VAC/1 phase/50Hz) dedicated circuit.
• AG-2000/3500 - 200-240VAC/1 phase/50-60Hz dedicated circuit.
To Next Page
