ECS AdvancedIQ AG-675

15

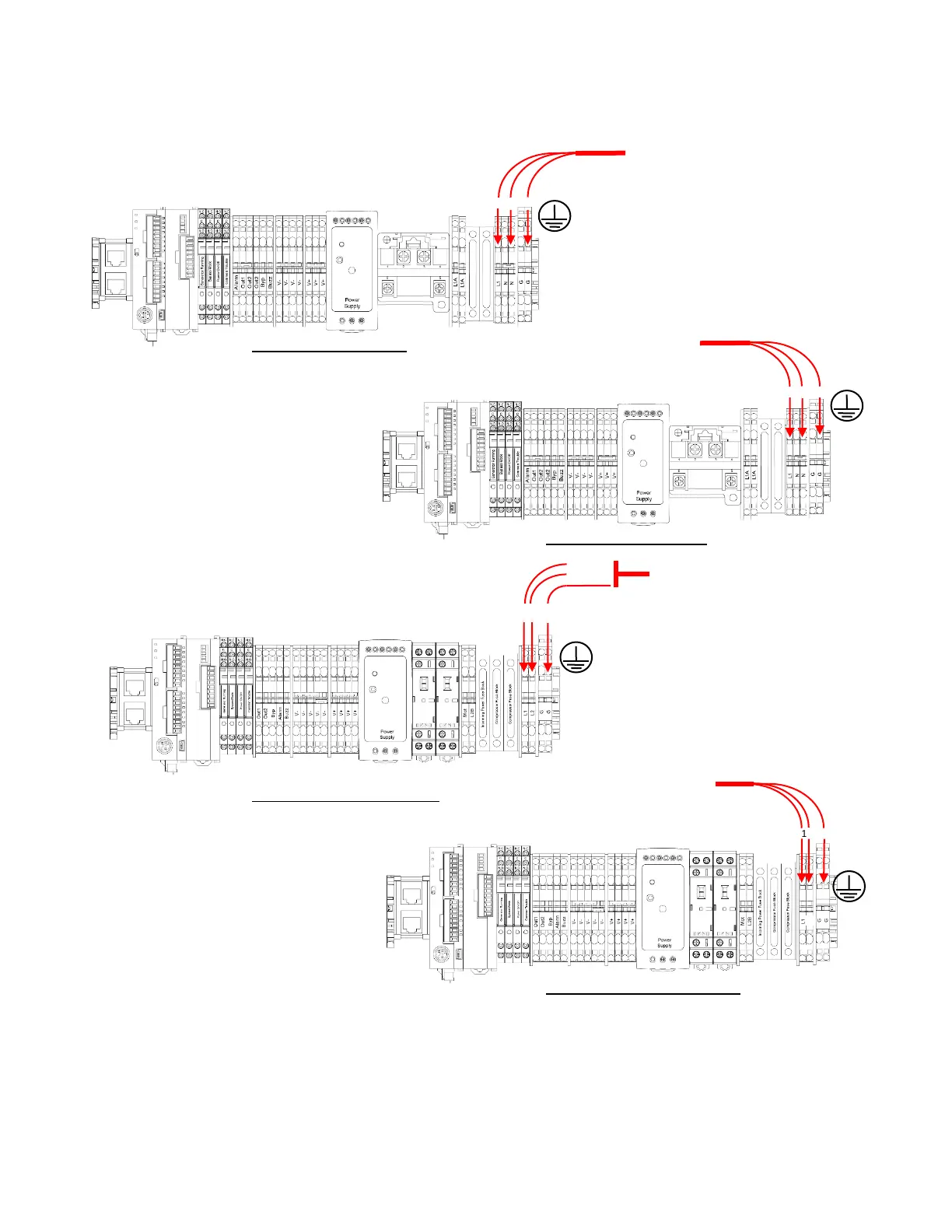

AG-675/950 Standard
AG-675E/950E Version
AG-2000/3500 Standard
AG-2000E/3500E Version
NOTE: Ensure an appropriately rated disconnect switch and circuit breaker (minimum 15 Amps and a
Short Circuit Current Rating (SCCR) of 5 kVA) are installed in a suitable and accessible location in
accordance with the Applicable national and/or local codes (i.e. NFPA 70).
200-240VAC 1 Phase 50 Hz Connections
5/6 Amps
G
L1
N
120VAC/1 Phase 60 Hz Connections
5/6 Amps
G
L1
N
200-240VAC 1 Phase 50 Hz Connections
10 Amps
G
L1
N
N
200-240 VAC/1 Phase 60 Hz Connections
10 Amps
G
L1
L2
120 VAC
120 VAC
