ECS AdvancedIQ AG-675

19

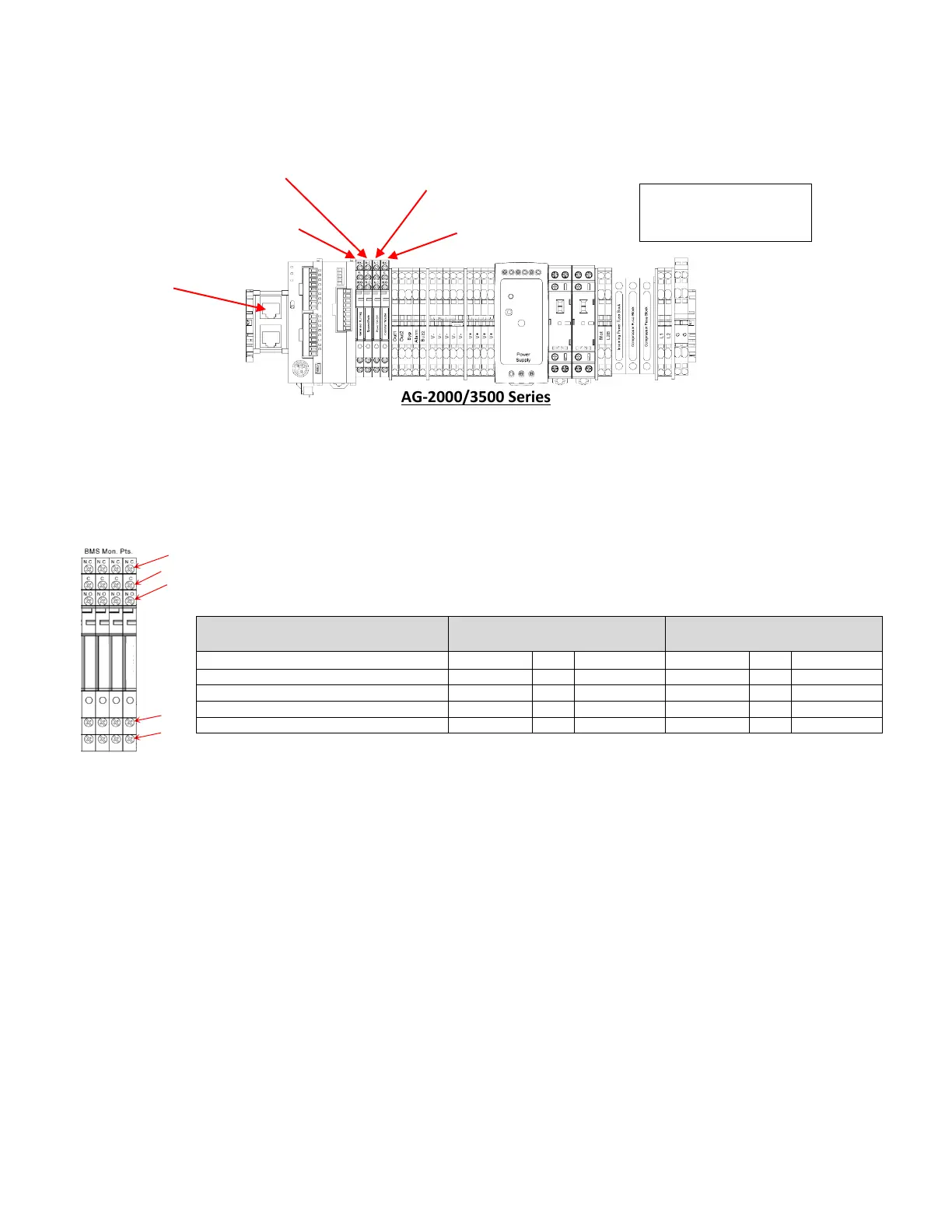

AG-2000/3500 Series
Description
Normally Open Contact
Connections (i.e. Fire Alarm)
Normally Closed Contact
Connection (i.e. B.A.S.)
Relay
LED
Connections
Relay
LED
Connections
Nitrogen Generator Running Output (Running)
Energized
On
11&14
Energized
On
11&12
By-Pass Alarm Monitoring Output
De-Energized
Off
11&14
De-Energized
Off
11&12
Nitrogen Generator Power Monitoring Output
Energized
On
11&12
Energized
On
11&14
Common Trouble Monitoring Output
De-Energized
Off
11&14
De-Energized
Off
11&12
Monitoring Relay Contact Rating
250 VAC/ 6 Amps
By-Pass Alarm Monitoring Output
(Normally De-Energized)
Nitrogen Generator Power Monitoring Output
(Normally Energized)
Common Trouble Output
(Normally De-Energized)
Nitrogen Generator Running Output
(Energized When Running)
Ethernet Connection
Relay Contacts – De-Energized
NC (12)
COM (11)
NO (14)
Relay Coil
A1
A2
Common Trouble
Power On/Off
Bypass Mode
Generator Running
