HOME SCREEN

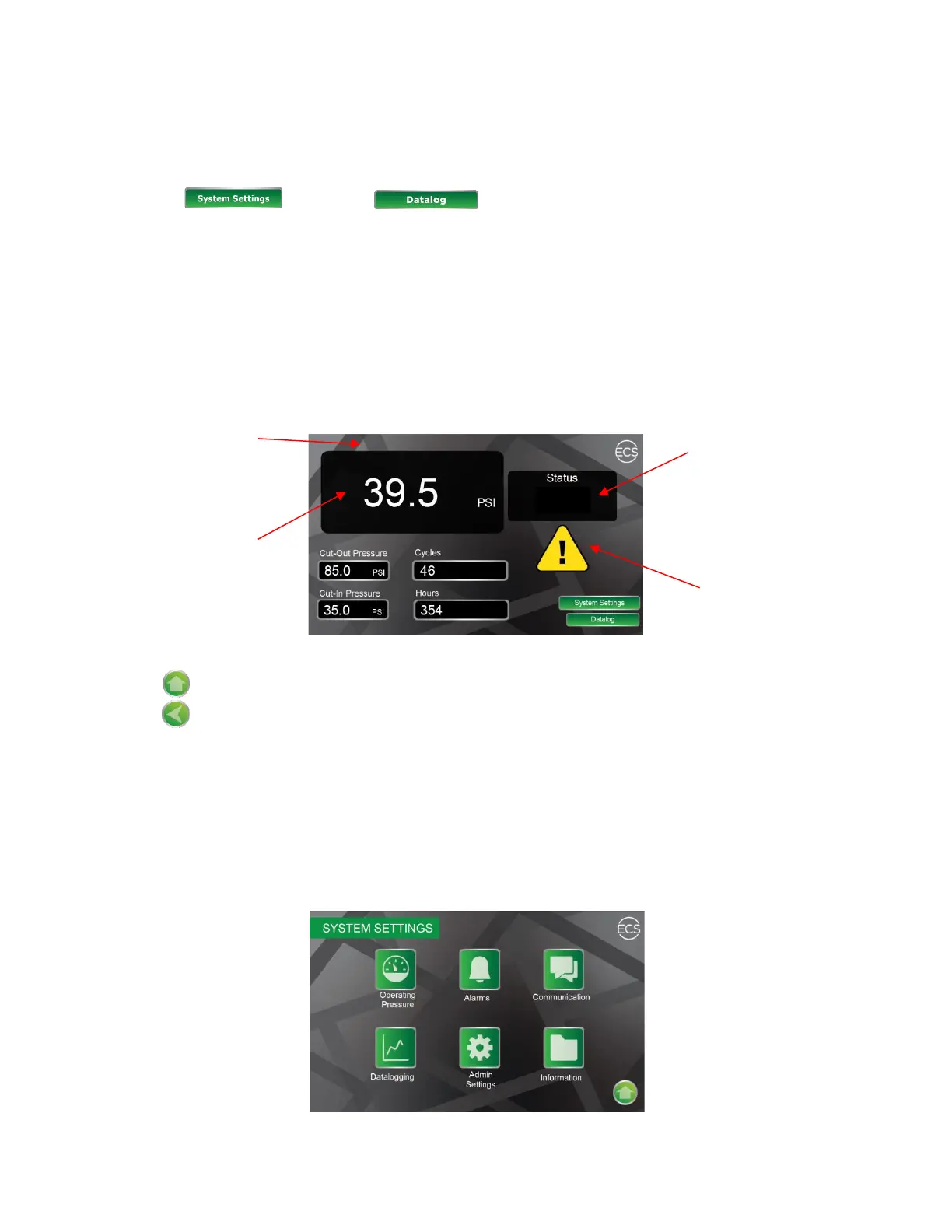

The Home Screen displays nitrogen supply line pressure, nitrogen generator cut-in and cut-out pressures,
nitrogen generator status, nitrogen generator running hours and cycles. The Home Screen also provides
access to Screen and Screen.
The Home Screen displays any alarm signals developed in the nitrogen generator across the top of the
screen
NOTE: The nitrogen generator status screen has three (3) different status:
1. Running - The nitrogen generator is running (producing nitrogen)
2. Standby - The nitrogen generator is not operating (not producing nitrogen)
3. Generator Disabled - The nitrogen generator is out of service.
NOTE: Return to Home Screen
Return to Previous Screen
SYSTEM SETTINGS SCREEN
The System Settings Screen provides access to the Operating Pressure Screen, Alarms Screen,
Communication Screen, Datalogging Screen, Admin Settings Screen and the Information Screen.
Press the appropriate button to set or to change the appropriate function
Displayed when in
Not Normal Condition
Status Indicator
• Running
• Standby
• Generator Disabled
Nitrogen Supply Line
Pressure
Alarm Signals Displayed
in Ribbon in this Area
