ECS AdvancedIQ AG-675

70

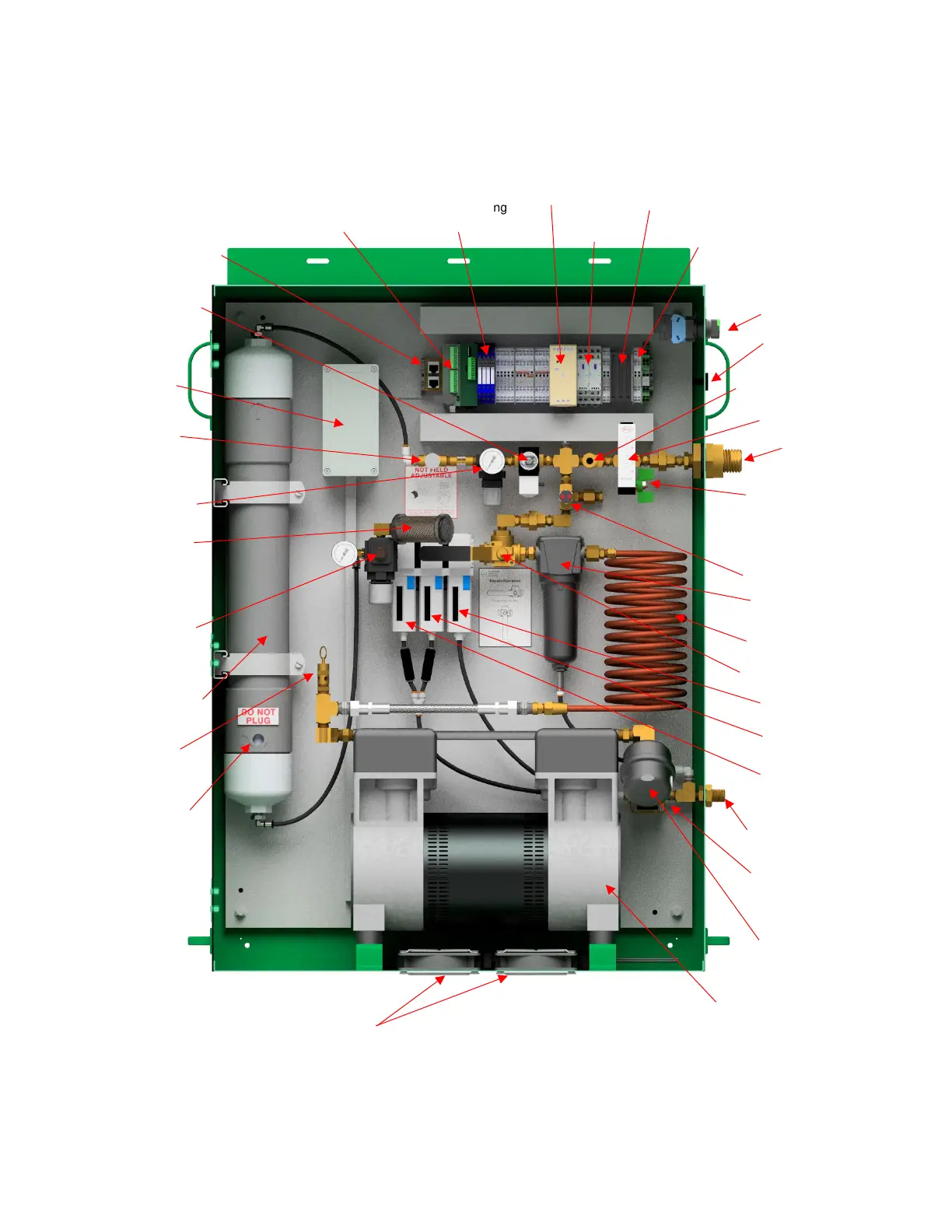

AG-2000(E) and AG-3500(E) Wall Mount Generator Configuration
Air/Nitrogen
Bypass Valve
Air Compressor
Condensate
Drain
Filter #2
1 Micron Coalescing
After Cooler
Exhaust Fans
Filter #3
.01 Micron Coalescing
Filter #1
5 Micron Coalescing
Nitrogen Membrane
Nitrogen Production
Solenoid
N.C.
Pressure Relief
Valve
Nitrogen Back Pressure
Regulator and Gauge
Excess Air Regulator
and Gauge
Unloader Solenoid
N.O.
(Behind Air Filter)
Excess Air Muffler
Nitrogen Purity Flow
Control Valve
Compressor Start
Capacitor
On/Off Power Switch
Nitrogen Outlet
Audible Alarm
Flow Meter
Flow Meter Isolation Valve
Bypass Alarm Sensor
Nitrogen Sampling Port
System Monitoring
Signal Connections
Compressor
Relays
200-240 VAC
Power Connections
Ethernet Connection
Fuses
Power Supply
PLC
Permeate-Exhaust Gases
DO NOT PLUG
Water Separator
Air Compressor
Inlet Air Filter
HMI LCD Display
On Cabinet Door
