B350AM4-M USER MANUAL
2-4-5. Connecting Optional Devices

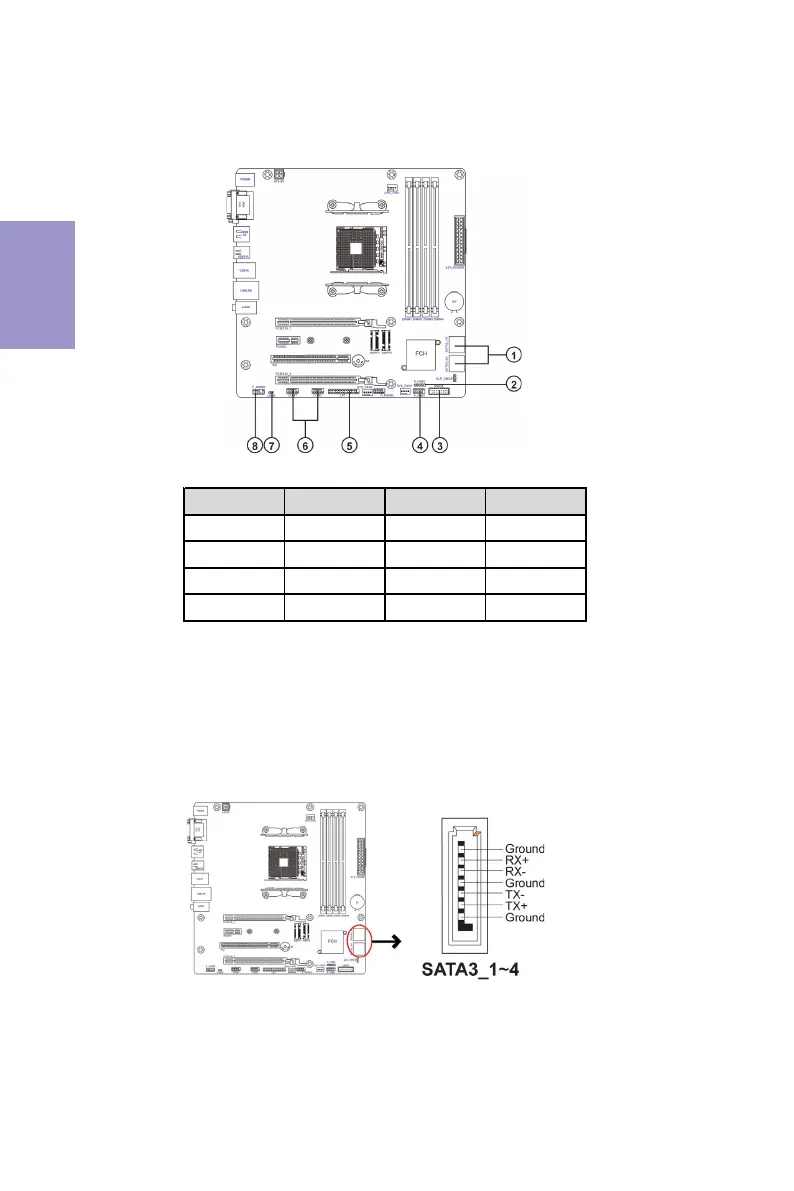

Refer to the following for information on connecting the motherboard’s optional
devices:
No. Components No. Components
1 SATA3_1~4 5 LPT
2 F_USB2 6 COM1~2
3 USB3F 7 CASE
4 F_USB1 8 F_AUDIO
SATA3_1~4 connectors are used to support the Serial ATA 6Gb/s device, simpler disk
drive cabling and easier PC assembly. It eliminates limitations of the current
Parallel ATA interface. But maintains register compatibility and software
compatibility with Parallel ATA.
1. SATA3_1~4: Serial ATA Connectors
