ECS H81H3-M5 User Manual

Chapter 2
18
H81H3-M5 USER MANUAL

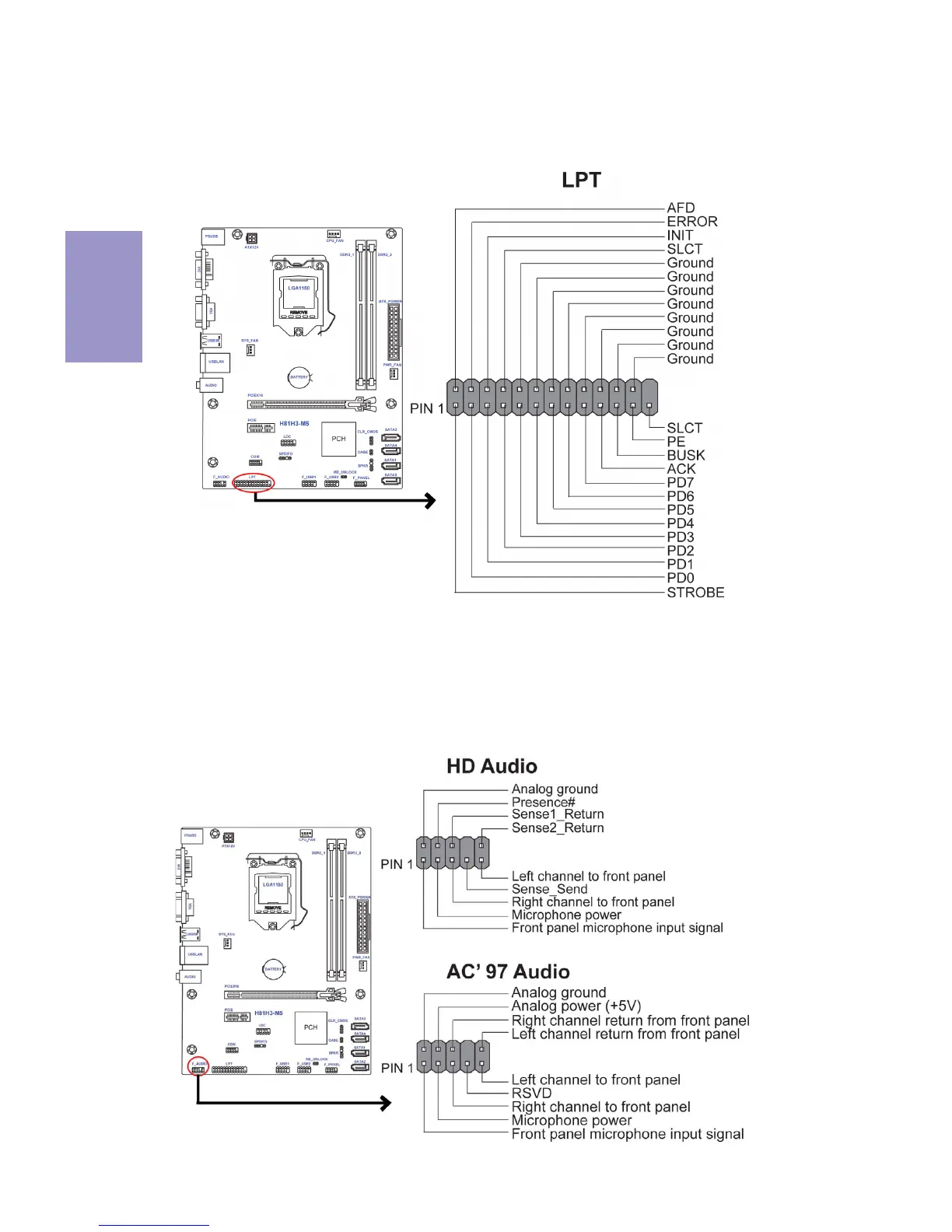

The front panel audio header allows the user to install auxiliary front-oriented mi-
crophone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC
’ 97 front panel audio to HD onboard headers,
please set as below picture.
6. F_AUDIO: Front Panel Audio Header
5. LPT: Onboard parallel port Header
This is a header that can be used to connect to the printer, scanner or other devices.
