H81H3-M5 USER MANUAL
50
Chapter 3
Press <Esc> to return to the M.I.B. III Menu page.
Memory Configuration

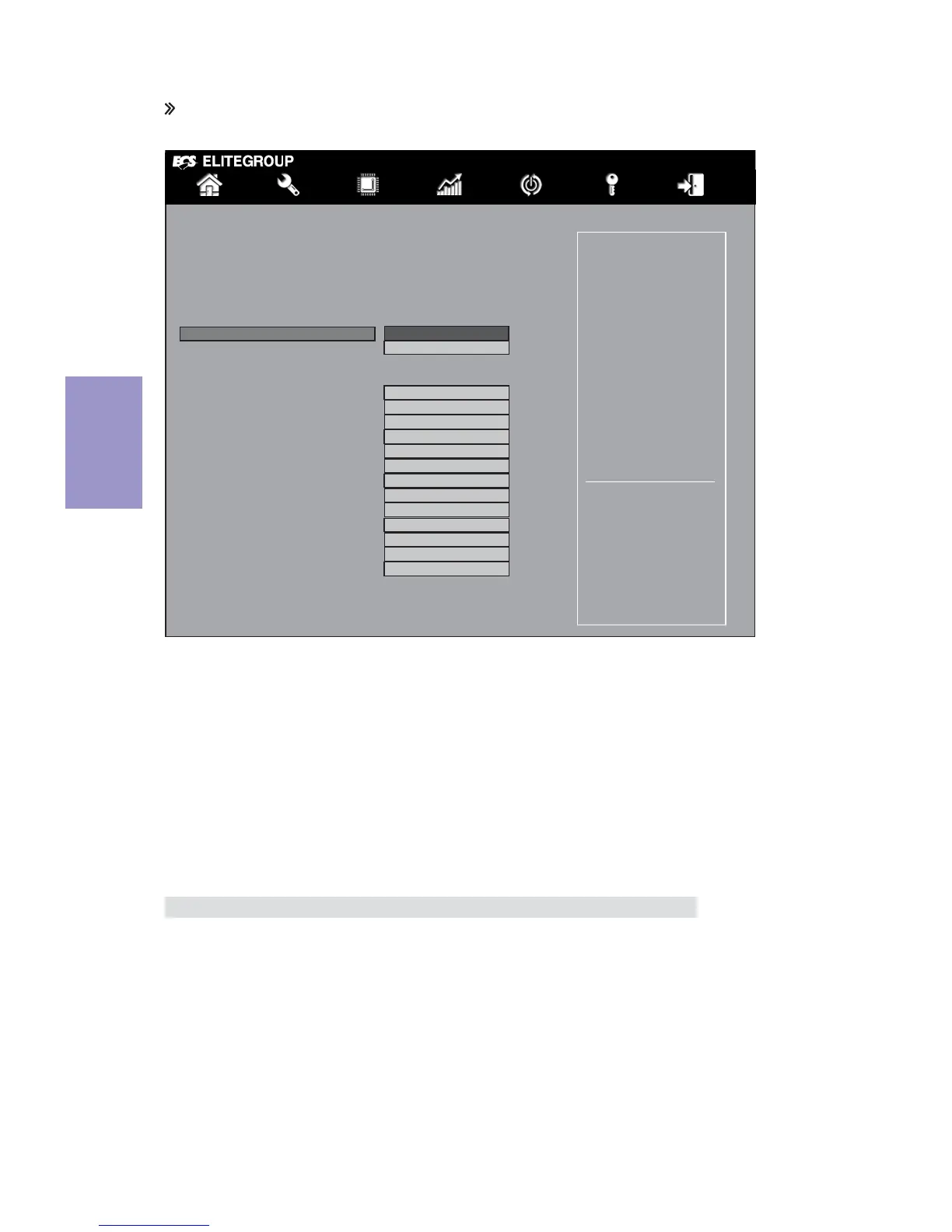

Scroll to this item to view the following screen:
Memory RC Version (1.6.1.2)
Memory Frequency (1333 Mhz)
This item shows the memory frequency.
Total Memory 2048 MB (DDR3)
This item shows the total memory.
Memory Profiles (Automatic)
This item allows you to select the memory mode: Automatic, Manual, XMP Profile 1
or 2.
F4: Save & Exit
Main Advanced Chipset M.I.B. III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
lk
mn
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
The selection of Memory
Profiles which impacts
memory sizing behavior.
This item shows the Memory RC Version.
Memory Information
Memory RC Version 1.6.1.2
Memory Frequency 1333 Mhz
Total Memory 2048 MB (DDR3)
Memory Profiles Automatic
Memory Frequency 1333
Tming Default Current Target
tCL 9 9 9
tRCD 9 9 9
tRP 9 9 9
tRAS 24 24 24
NMode 1 1 Auto
tWR 10 10 10
tRFC 107 107 107
tRRD 4 4 4
tWTR 5 5 5
tRTP 5 5 5
tCWL 7 7 7
tREFI 5200 5200 5200
tFAW 20 20 20
