ECS H81H3-M7 User Manual

Chapter 2
23
B85H3-M7 USER MANUAL

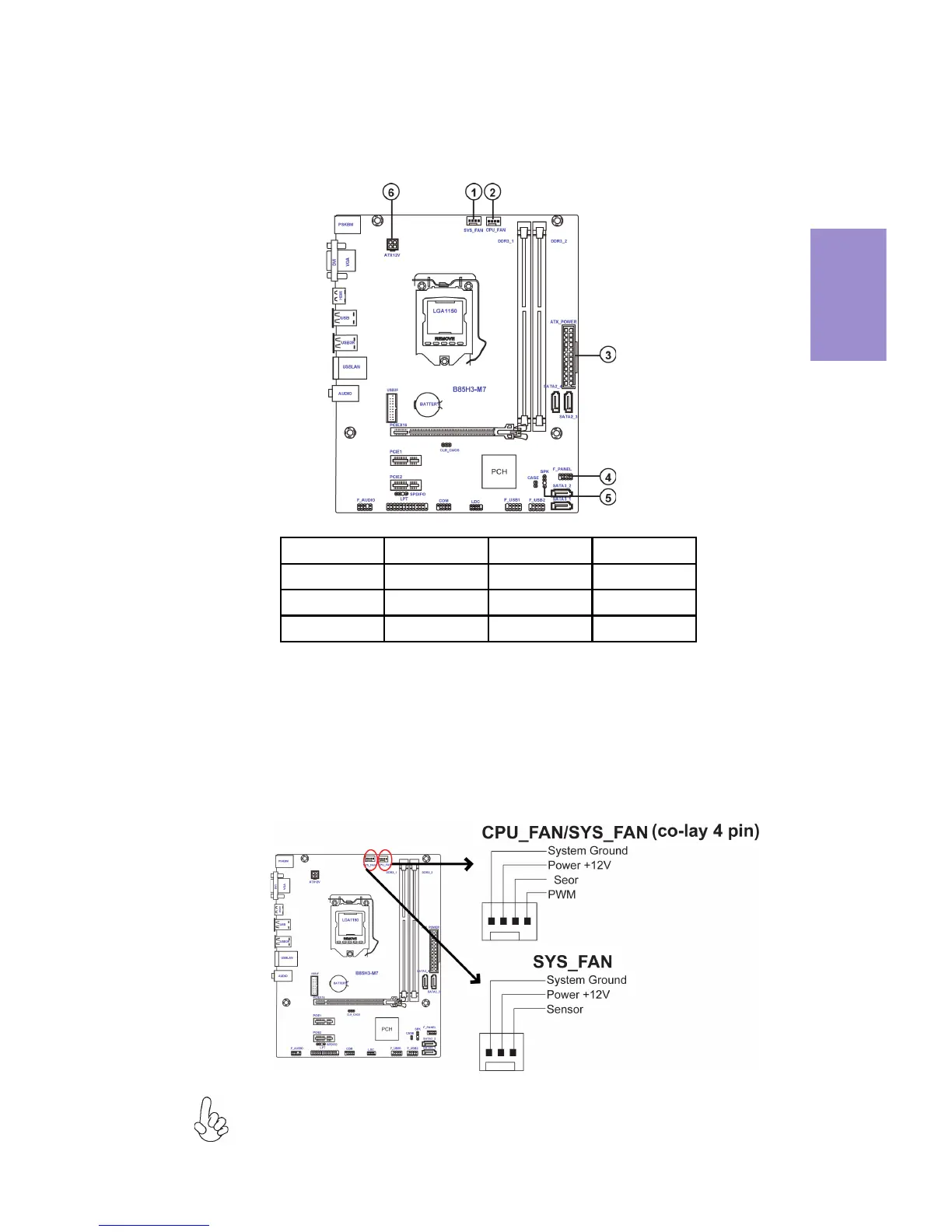

1 & 2. CPU_FAN(CPU cooling FAN Power Connector) & SYS_FAN (co-lay 4
pin)(System Cooling FAN Power Connector)
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
2-4-7. Connecting Case Components
No. Components No. Components
1 SYS_FAN 4 F_PANEL
2 CPU_FAN 5 SPK
3 ATX_POWER 6 ATX12V
Connect the CPU cooling fan cable to CPU_FAN
Connect the system cooling fan connector to SYS_FAN.

ECS H81H3-M7 Specifications

General

Brand	ECS
Model	H81H3-M7
Category	Motherboard
Language	English
