ECTIVE DSC 12 - Connection Plan; DSC 12;25 Connection Details

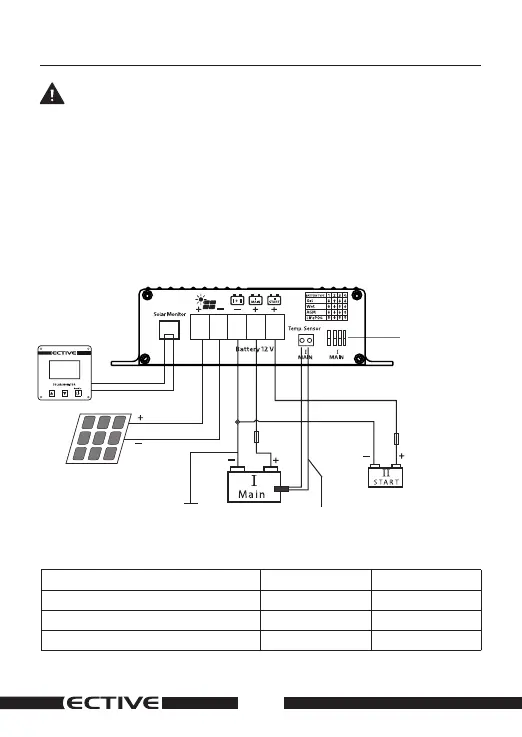

Connection Plan
DSC 12 MPPT & DSC 25 MPPT
Note:
• Observe the cable cross-sections and cable lengths indicated in the
connection plan and the tables!
• It is imperative that the correct polarities ( + and - ) of solar panel and
batteries are observed!
• Cable protection: Insert the fuses near the batteries into the + cables
(protection against cable fire)!
Required Cable Cross-Sections DSC 12 DSC 25
+/-PanelCables,lengthasrequired
2,5-4mm
2
6-10mm
2
+/-BatteryIcables,lengthmax.2m
2,5-4mm
2
6-10mm
2
FuseclosetoBatteryI(CableProtection)
20A 30A
26
Setbattery
type
Fuse
Fuse
5A
Vehicle
chassis
MAIN
Battery
Temperature
Sensor
StarterBattery
(optional)
Note:
InstallMPPTsolar
chargecontroller
neartheMain
battery!
Maximumpowerof
thesolarpanels:
DSC12:max.165W
DSC25:max.350W
SolarMonitor
(optional)
