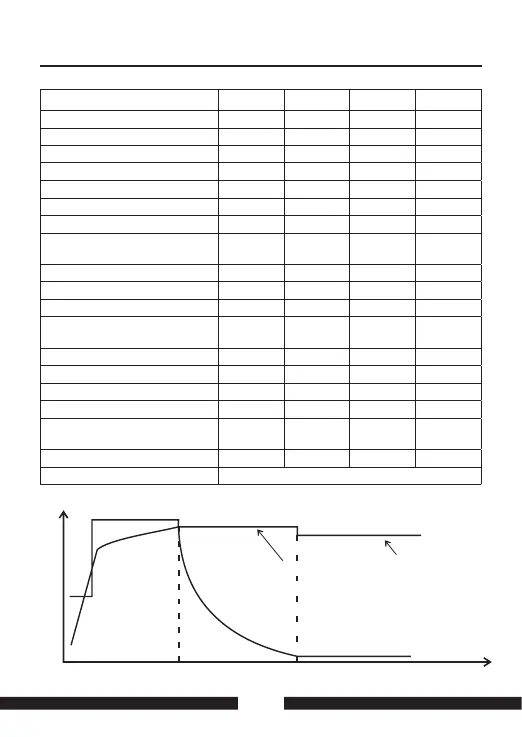

Technical Data
DSC 12 DSC 25 SC 20 SC 40
max.SolarModuleCapacity[Wp] 165 350 240/480 480/960
max.SolarModuleCurrent 10A 21A 20A 20A
max.SolarModuleVoltage 50V 50V 50V 50V
BatteryNominalVoltage(DC) 12V 12V 12/24V 12/24V
max.ChargingCurrentBatt.I/II 12/1A 25,5/1A 20A 40A
Stand-byCurrentConsumption 4mA 4mA 4mA 4mA
OverchargeProtection yes yes yes yes
BackDischargeProtection(Night
Operation)
yes yes no no
ShortCircuitProtection yes yes yes yes
UnitFuse(TypeFKS) 20A 30A 35A 60A
NumberofChargingOutputs 2 2 1 1
ProtectionOverloading,Over-
heatingandReversePolarity
yes yes yes yes
Connector:TemperatureSensor yes yes yes yes
ChargingCableCompensation yes yes yes yes
Connector:LCDSolarComputer yes yes yes yes
Connector:12Vloads no no yes yes
Dimensions
147x80x
41mm
147x80x
41mm
147x130x
41mm
147x158x
41mm
Weight 340g 400g 500g 1000g
Ambientconditions max.95%humidity,nocondensation
<75% <100%
>100%
chargingcurrent(I)
ChargingTime
chargingvoltage(V)
boostchargingvoltage
U/I
floatchargingvoltage
MainCharge
33
